HL86PB5

Hi-Lok™ Collar

email this to someone
Description:

Thread Size: 1/8", HL86 series collar

* Manufacturer certifications are shipped with your order FREE of charge
HL86PB5
HL86PB5
HL86PB5
HL86PB5
HL86PB5
HL86PB5
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

HL86PB5 Datasheet Features and Specification

Surface Treatment Specification:
Class 2 federal specification single treatment response type 2 qq-p-416
Surface Treatment:
Cadmium and chromate
Material:
Steel comp 303se
Lubrication:
Hi-shear corp specification 305 cetyl alcohol
Collarheight:
Between 0.427 inches and 0.447 inches
Collar Style:
Threaded (break off) type
Collar Outside Diameter:
Between 0.283 inches and 0.287 inches
Collar Inside Diameter:
Between 0.166 inches and 0.173 inches
Thread Class:
3b
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
32
Thread Size:
0.164 inches
Quick Specs
Thread Qty 32
Thread Class 3B
Material Steel

Additional Information

Alternate Part Numbers

  • HL86PB-5
SKU / Model: HL86PB5
NSN: 5320-00-420-8057
FSC: Rivets / 5320
Product Series: HL86PB
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 2
Schedule B: 7318.24.0000
ECCN: EAR99
Download PDF Version
HL86PB5_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

More HL86PB collars

HL86PBW8

Thread Size: 1/4"

HL86PBW6

5320-01-219-7101 Collar

HL86PBW5

5320-00-869-1496 Collar

HL86PB8

5320-00-950-3022 Collar

HL86PB10

Thread Size: 1/4in.

Product Image Gallery

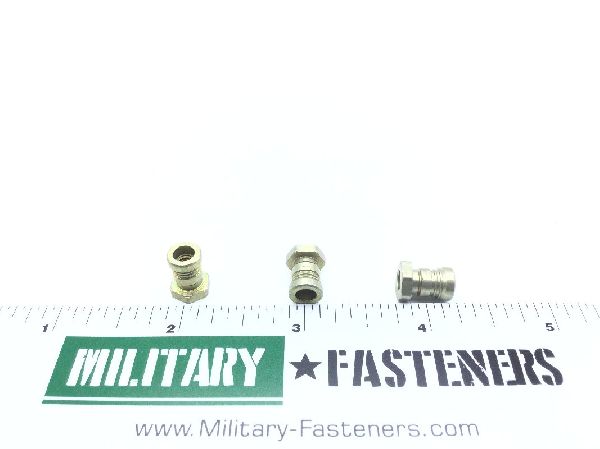

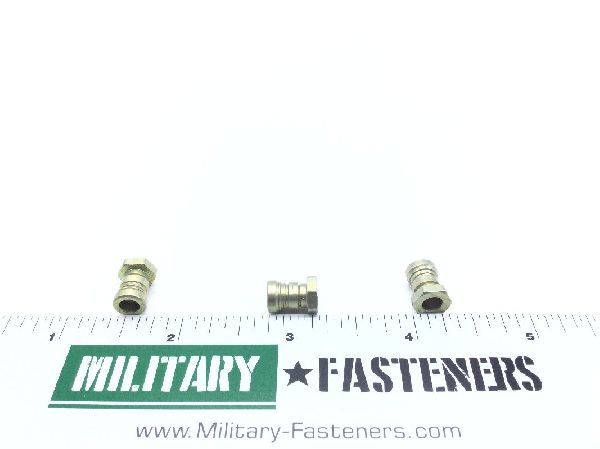

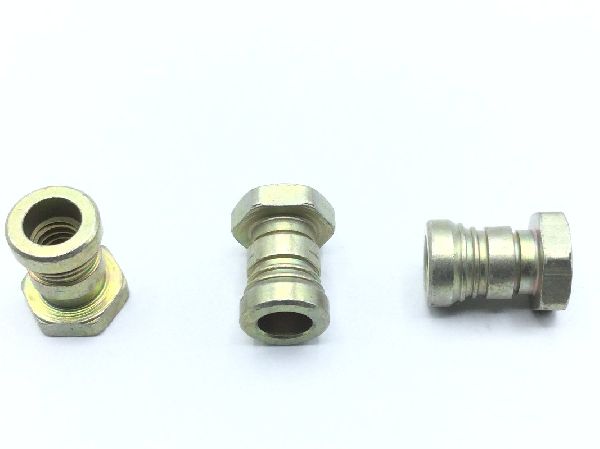

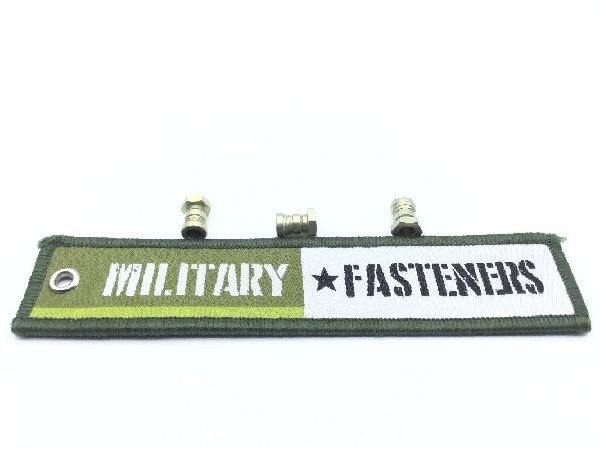

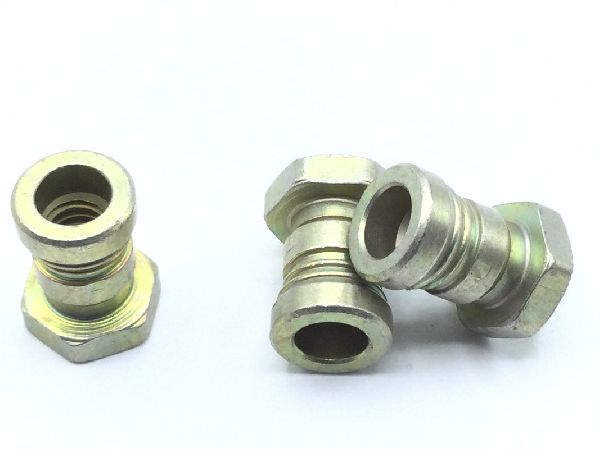

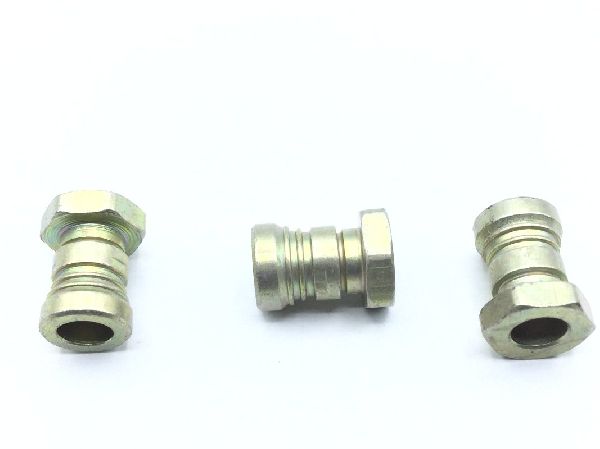

Product code HL86PB5
