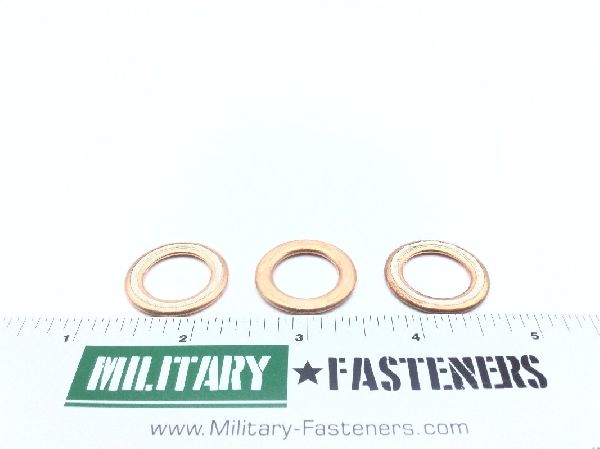

MS35769-12

Military Standard Gasket

email this to someone
Description:

inner diameter: 5/8", thickness 5/64", copper

* Manufacturer certifications are shipped with your order FREE of charge
MS35769-12
MS35769-12
MS35769-12
MS35769-12
Add to Cart Up to qty 60 ships same day if ordered before 4pm EST
MS35769-12 Price:
buy now
$4.08 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

MS35769-12 Datasheet Features and Specification

Cross Sectional Shape:
Metal with soft filler
Tempurature Rating:
150.0 deg fahrenheit and 500.0 deg fahrenheit
Outside Diameter:
0.984 inches minimum and 1.000 inches maximum
Aperture Diameter:
0.625 inches minimum and 0.641 inches maximum
Cross-sectional Thickness:
0.062 inches minimum and 0.094 inches maximum
Criticality Code Justification:
Matt
Maximum Pressure Rating:
200.0 pounds per square inch
Environmental Attribute Code:
Asbestos alternative products
Special Features:
As differentiated by filler of non-asbestos material
Material:
Copper case
Material:
Fiber nonasbestos core and asphalt core and rubber butadiene-acrylonitrile class nbr core
Material Specification:
Hh-g-101 fed spec single material response case
Material Specification:
Hh-g-101,type 3 fed spec all material responses core
Style Designator:
Circular

Additional Information

SKU / Model: MS3576912
NSN: 5330-01-354-6625
FSC: Packing and Gasket Materials / 5330
Product Series: MS35769
Pack Weight (Approx.) 0.044 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 194120, Washers / Gaskets / Pckg Dvcs Noi
Download PDF Version
MS35769-12_Military-Fasteners-com.pdf
