MS35769-21

Military Standard Gasket

email this to someone
Description:

inner diameter: 1", thickness 3/32", gasket"

* Manufacturer certifications are shipped with your order FREE of charge
MS35769-21
MS35769-21
MS35769-21
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

MS35769-21 Datasheet Features and Specification

Cross Sectional Shape:
Metal with soft filler
Tempurature Rating:
150.0 deg fahrenheit and 500.0 deg fahrenheit
Outside Diameter:
1.234 inches minimum and 1.250 inches maximum
Aperture Diameter:
1.000 inches minimum and 1.016 inches maximum
Cross-sectional Thickness:
0.078 inches minimum and 0.110 inches maximum
Criticality Code Justification:
Matt
Maximum Pressure Rating:
200.0 pounds per square inch
Environmental Attribute Code:
Asbestos alternative products
Special Features:
As differentiated by filler of non-asbestos material
Material:
Copper case
Material:
Fiber nonasbestos core and asphalt core and rubber butadiene-acrylonitrile class nbr core
Material Specification:
Hh-g-101 fed spec single material response case
Material Specification:
Hh-g-101,type 3 fed spec single material response core
Style Designator:
Circular

Additional Information

SKU / Model: MS3576921
NSN: 5330-01-352-7768
FSC: Packing and Gasket Materials / 5330
Product Series: MS35769
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 10
National Motor Freight: 194120, Washers / Gaskets / Pckg Dvcs Noi
Download PDF Version
MS35769-21_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

More MS35769 gaskets

MS35769-9

Inner diameter: 1/2in., thickness 3/32in., gasket

MS35769-8

Gasket, Copper 3/32in. Thickness

MS35769-6

Gasket 5330-01-371-4631, Copper 3/32in. Thickness, 3/8in. DIA

MS35769-51

inner diameter: 1-13/16", thickness 3/32", gasket

MS35769-5

inner diameter: 5/16", thickness 3/32", gasket

MS35769-48

inner diameter: 1-3/4", thickness 3/32", gasket

Product Image Gallery

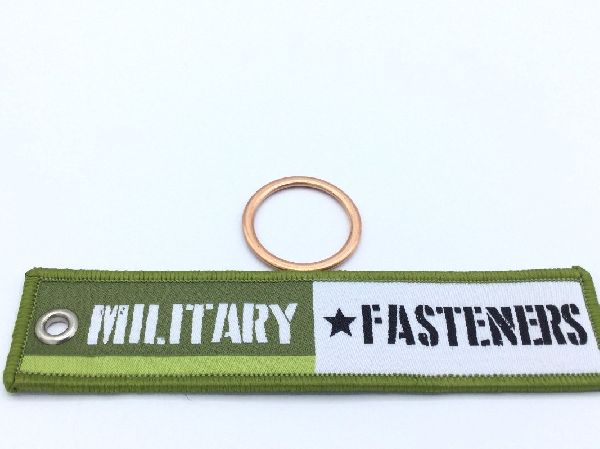

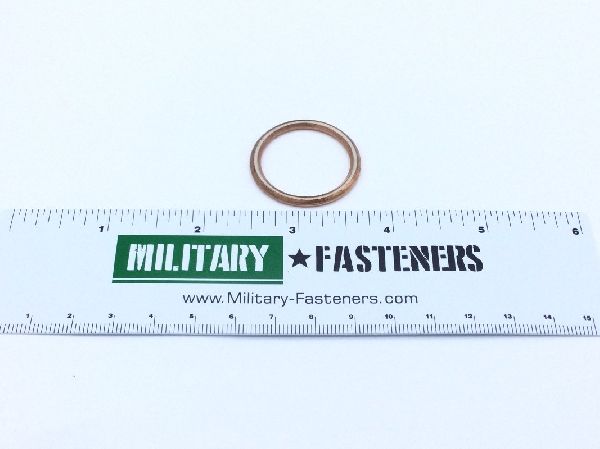

Product code MS35769-21
