AN901-4C

Aeronautical Standard Gasket

email this to someone
Description:

tube outer diameter: 1/4", metal tube connection seal, copper, AN901 series gasket

* Manufacturer certifications are shipped with your order FREE of charge
AN901-4C
AN901-4C
AN901-4C
AN901-4C
AN901-4C
AN901-4C
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

AN901-4C Datasheet Features and Specification

Aperture Diameter:
Between 0.443 inches and 0.453 inches
Cross Sectional Shape:
Rectangular metal
Cross-sectional Thickness:
Between 0.0478 inches and 0.0538 inches
Material:
Copper
Material Specification:
Qq-c-501 federal specification single material response
Outside Diameter:
Between 0.673 inches and 0.683 inches
Style Designator:
Circular
Surface Treatment:
Cadmium and chromate
Surface Treatment Specification:
Qq-p-416 type 2 cl 3 federal specification single treatment response
Quick Specs
Material Copper

Additional Information

SKU / Model: AN9014C
NSN: 5330-00-196-6696
FSC: Packing and Gasket Materials / 5330
Product Series: AN901
Pack Weight (Approx.) 0.088 lb
Minimum Qty (MOQ): 25
Schedule B: 7415.21.0000
ECCN: EAR99
National Motor Freight: 194120, Washers / Gaskets / Pckg Dvcs Noi
Download PDF Version
AN901-4C_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

More AN901 gaskets

AN901-8C

Gasket 5330-00-196-6708, Gasket, Copper, 1/2in. Tube Size

AN901-6C

$2.76 Each, Tube outer diameter: 3/8in., thickness copper

AN901-16A

$2.04 Each, Tube outer diameter: 1in., thickness aluminum

AN901-12A

tube outer diameter: 3/4", thickness aluminum

AN901-10A

tube outer diameter: 5/8", thickness aluminum"

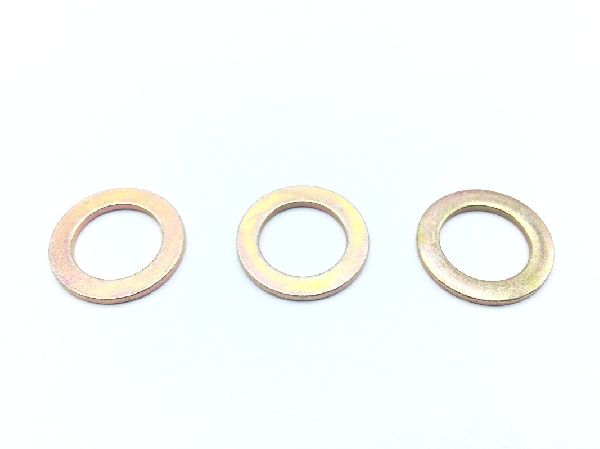

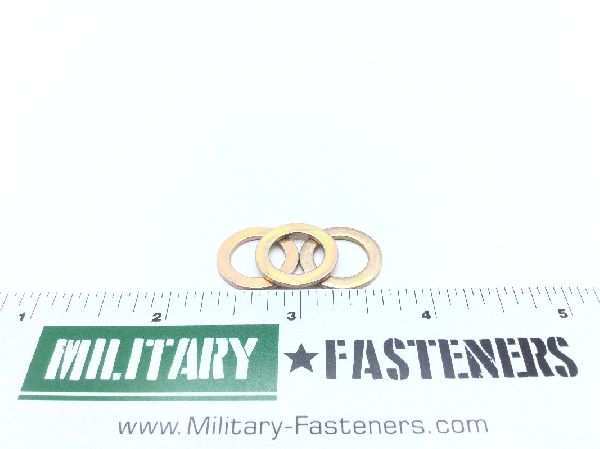

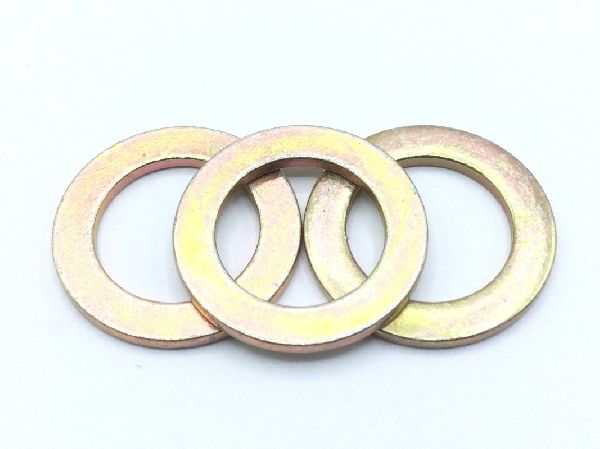

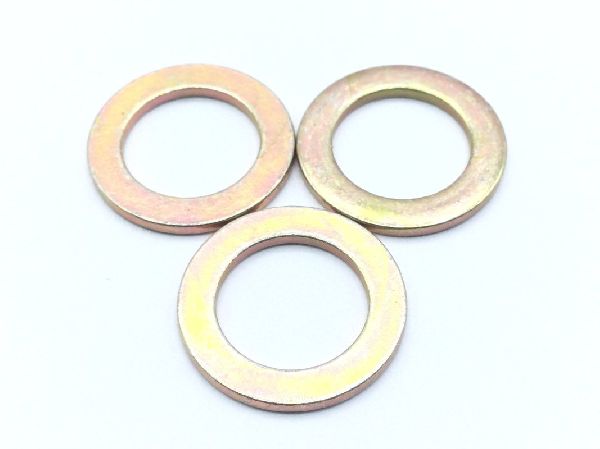

Product Image Gallery
