NAS1791A33
Two Lug Locknut Plate
email this to someone
Description:
* Manufacturer certifications are shipped with your order
FREE of charge
Thread Size: 3/16", Nut Length: 15/16", Nut Height: 3/8"
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to a quote and
receive up to date pricing and availability by email.
Add to Quote
Add to Quote
NAS1791A33 Datasheet Features and Specification
Center To Center Distance Between Mounting Holes Along Length:
Between 0.686 inches and 0.690 inches
Counterbore Diameter:
0.194 inches nut
Distance From Aperture Center To Mounting Hole Center:
Between 0.339 inches and 0.349 inches
Features Provided:
Floating nut
Locking Feature:
Prevailing torque all metal design
Lubrication:
Dry film lubricant
Material:
Steel shell
Material:
Steel nut
Mounting Hole Arrangement Style:
2 holes
Mounting Hole Diameter:
Between 0.098 inches and 0.103 inches
Thread Size:
0.190 inches
Nut Counterbore Depth:
0.188 inches nut
Nut Height:
0.375 inches
Nut Length:
0.948 inches
Nut Mounting Provision:
Straight holes
Nut Style:
Plate
Plate Thickness:
Between 0.027 inches and 0.037 inches
Plate Width:
0.445 inches
Removable Nut Manufacturer Code:
80205
Removable Nut Manufacturer Part Number:
Nas1794a3-3
Specification Data:
80205-nas1791 professional/industrial association standard
Surface Treatment:
Cadmium nut and chromate nut
Surface Treatment:
Cadmium shell and chromate shell
Surface Treatment Specification:
Cl 2 federal specification all treatment responses nut type 2 qq-p-416
Surface Treatment Specification:
Cl 2 federal specification all treatment responses shell type 2 qq-p-416
Thread Class:
3b
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
32
Thread Series:
Unjf (fine thread with external controlled root radius)
Additional Information
SKU / Model: | NAS1791A33 |
Pack Weight (Approx.) | 0.000 lb |
Minimum Qty (MOQ): | 20 EA |
Download PDF Version NAS1791A33_Military-Fasteners-com.pdf |
|
* report an issue on this page

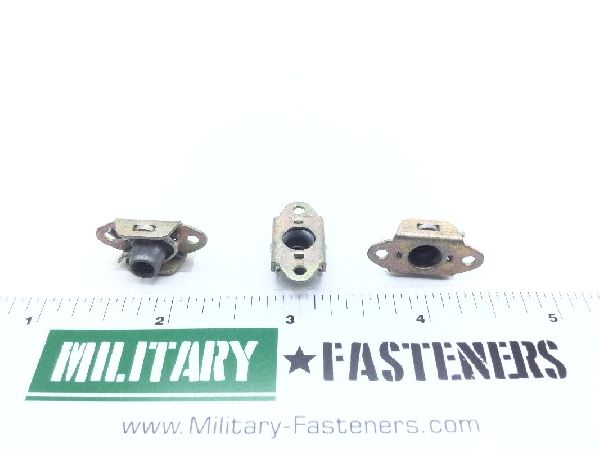

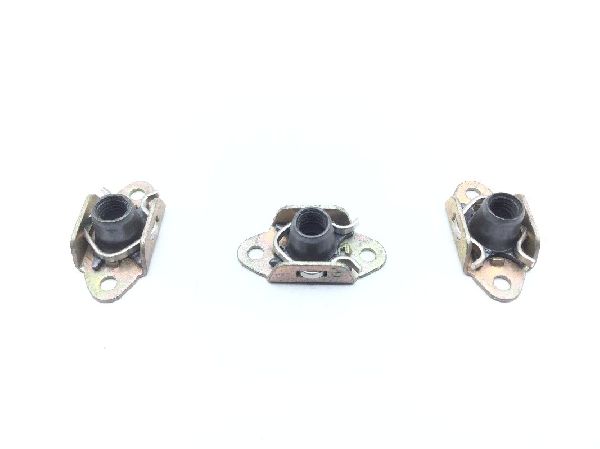

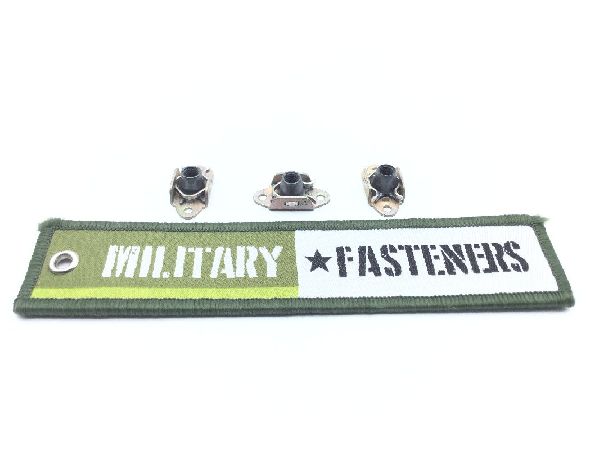

Product Image Gallery
