NAS679C06W

Locknut

email this to someone

Description:

Thread Size: 1/8", Nut Height: 1/8", Head Width: 1/4

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 100 ships same day if ordered before 4pm EST

NAS679C06W Price:	buy now $2.49 Each
Quantity: Pre-packaged bag qty: 25 ea
* Sold in increments of 25

Add item to quote

NAS679C06W Datasheet Features and Specification

Bearing Surface Finish:

125.0 microinches

Bearing Surface Type:

Chamfered or washer faced

Countersink Angle:

120.0 degrees nut

Locking Feature:

Prevailing torque all metal design

Material:

Iron alloy 660

Material Specification:

Ams 5525 assn standard single material response

Thread Size:

0.138 inches

Nut Height:

0.141 inches

Nut Style:

Hexagon

Precious Material:

Silver

Special Features:

Interanl wrenching

Specification Data:

80205-nas679 professional/industrial association standard

Surface Treatment:

Silver

Surface Treatment Specification:

Ams 2410 assn standard single treatment response

Tempurature Rating:

800.0 degrees fahrenheit

Thread Class:

Thread Direction:

Right-hand

Thread Qty Per Inch (tpi):

Thread Series:

Unjc

Width Across Flats:

Between 0.302 inches and 0.314 inches

Quick Specs

Thread Size	6
Thread Qty	32
Thread Class	3B
Material	Iron

Additional Information

SKU / Model:	NAS679C06W
NSN:	5310-00-680-9304
FSC:	Nuts and Washers / 5310
Product Series:	NAS679C
Pack Weight (Approx.)	0.045 lb
Minimum Qty (MOQ):	25
ECCN:	EAR99
National Motor Freight:	093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version NAS679C06W_Military-Fasteners-com.pdf

* report an issue on this page

More NAS679C locknuts

NAS679C6

$7.14 EA, Thread Size: 3/4in., Nut Height: 9/32in., Head Width: 35/64in.

NAS679C5M

Thread Size: 1/4", Nut Height: 1/4", Head Width: 1/2"

NAS679C5

Thread Size: 19/64", Nut Height: 17/64", Head Width: 31/64"

NAS679C4

Thread Size: 1/4in., Nut Height: 7/32in., Head Width: 27/64in.

NAS679C3M

5310-00-816-1879 Locknut

NAS679C06MW

Thread Size: 1/8in., Nut Height: 1/8in., Head Width: 1/4in.

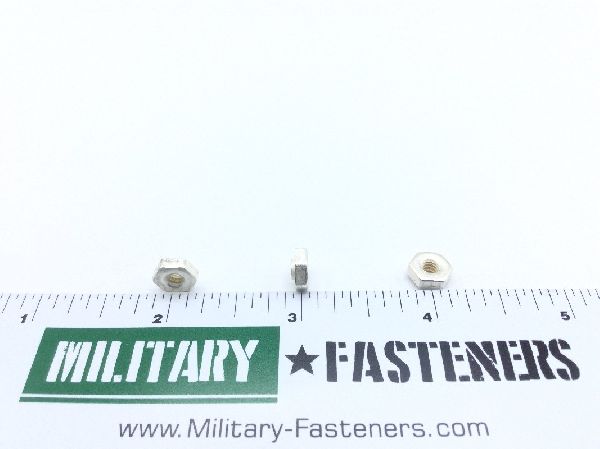

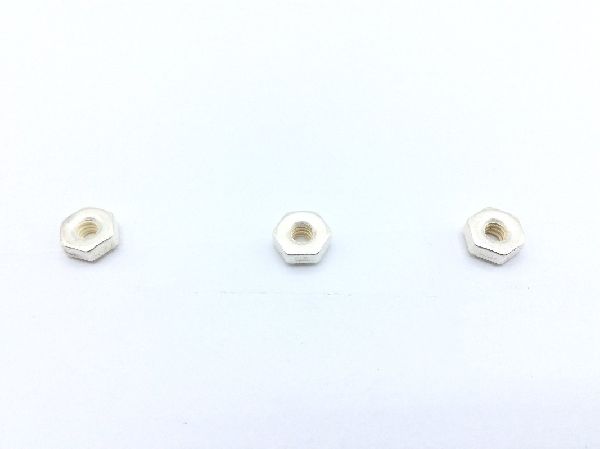

Product Image Gallery
