MS21045L4E

Military Standard Locknut

email this to someone
Description:

Thread: 1/4-28, Thread Size: 1/4", Nut Height: 7/64", Head Width: 27/64

* Manufacturer certifications are shipped with your order FREE of charge
MS21045L4E
MS21045L4E
MS21045L4E
MS21045L4E
MS21045L4E
MS21045L4E
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

MS21045L4E Datasheet Features and Specification

Surface Type:
Chamfered
Locking Feature:
Prevailing torque all metal design
Lubrication:
Dry film lubricant
Material:
Steel
Thread Size:
0.250 inches
Nut Height:
0.116 inches
Nut Style:
Hexagon
Surface Treatment:
Cadmium and chromate
Surface Treatment Specification:
Qq-p-416 federal specification single treatment response
Tempurature Rating:
450 degrees fahrenheit
Thread Class:
3b
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
28
Thread Series:
Unjf (fine thread with external controlled root radius)
Width Across Flats:
Between 0.430 inches and 0.439 inches
Quick Specs
Thread Size 1/4
Thread Qty 28
Material Steel

Additional Information

SKU / Model: MS21045L4E
NSN: 5310-01-297-8245
FSC: Nuts and Washers / 5310
Product Series: MS21045L
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 5
ECCN: EAR99
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
MS21045L4E_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

More MS21045L locknuts

MS21045L9

Thread Size: 35/64in., Nut Height: 21/32in., Head Width: 55/64in.

MS21045-L7

Locknut

MS21045L18

Thread Size: 1-1/8", Nut Height: 1-17/64", Head Width: 1-39/64"

MS21045L14

Thread Size: 7/8", Nut Height: 1", Head Width: 1-15/64"

MS21045L12

Thread Size: 3/4", Nut Height: 57/64", Head Width: 1-3/64"

MS21045L10

$13.80 EA, Thread Size: 5/8in., Nut Height: 3/4in., Head Width: 7/8in.

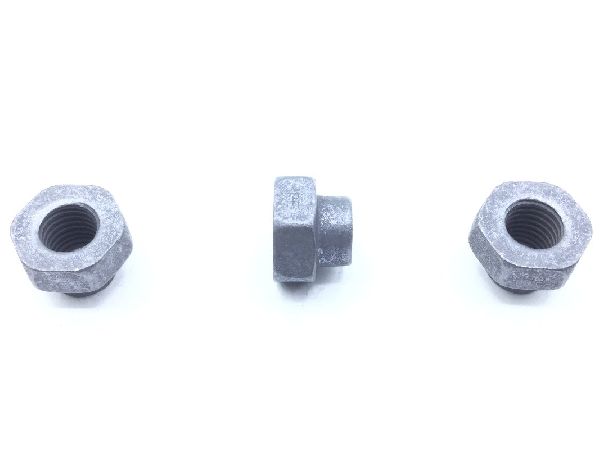

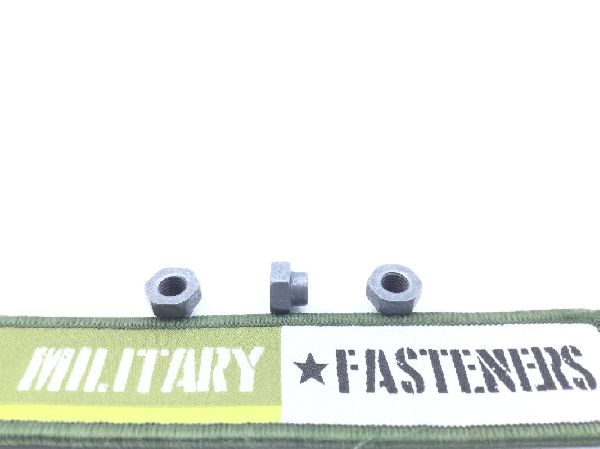

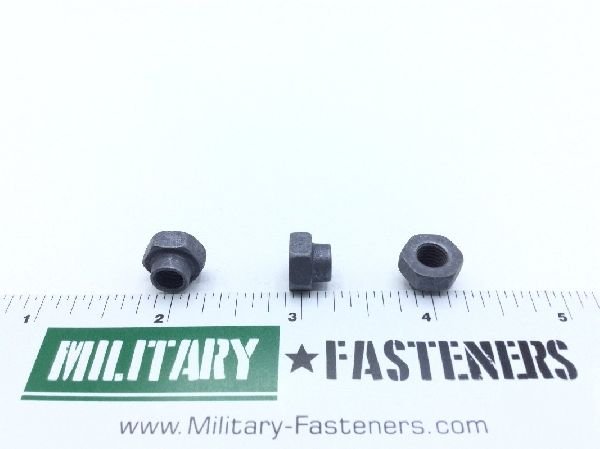

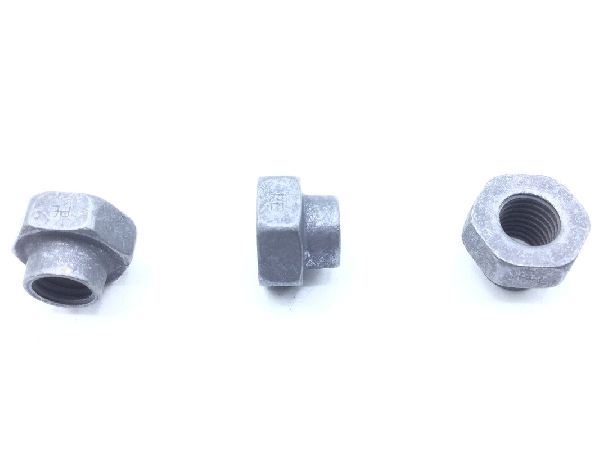

Product Image Gallery
