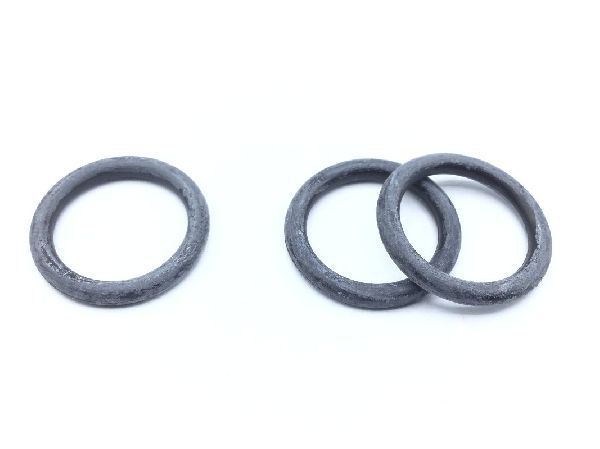

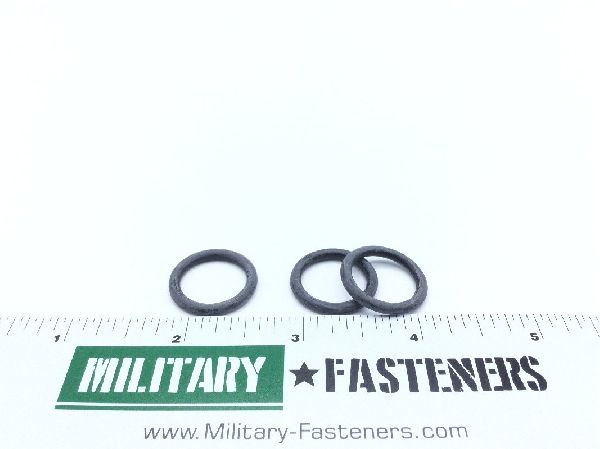

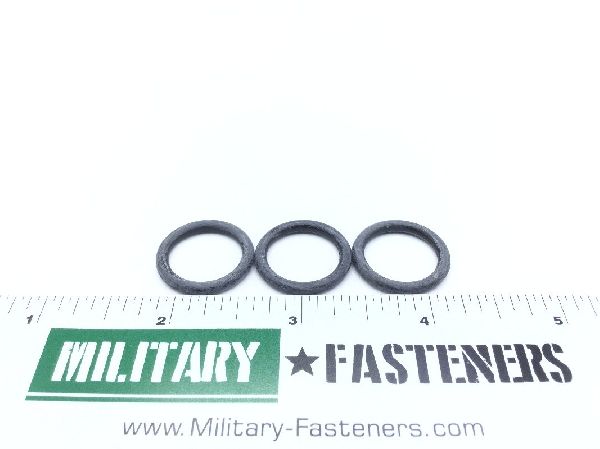

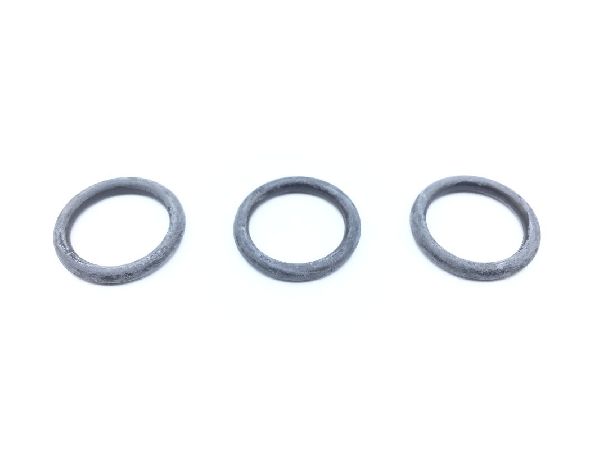

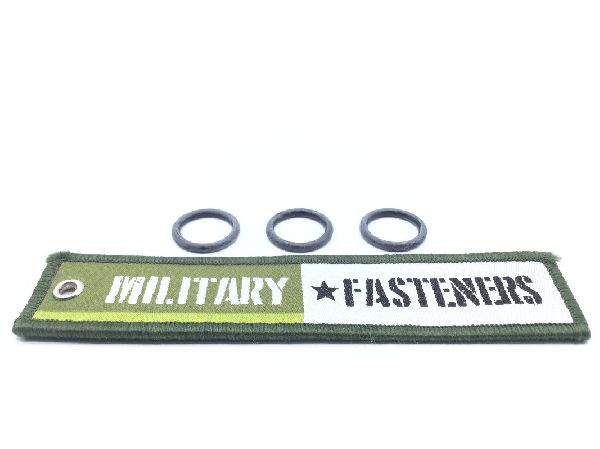

MS28775-114

Military Standard Ring O

email this to someone
Description:

inner diameter: 0.612, thickness: 0.103", preformed packing, hydraulic use, MS28775 series oring

* Manufacturer certifications are shipped with your order FREE of charge
MS28775-114
MS28775-114
MS28775-114
MS28775-114
MS28775-114
MS28775-114
Add to Cart
Up to qty 500 ships same day if ordered before 4pm EST
MS28775-114 Price:
buy now
$0.73 Each
Quantity:
Pre-packaged bag qty: 50 ea
* Sold in increments of 50
Add item to quote

MS28775-114 Datasheet Features and Specification

Outside Diameter:
0.803 inches minimum and 0.833 inches maximum
Cross-sectional Height:
0.100 inches minimum and 0.106 inches maximum
Center Hole Diameter:
0.607 inches minimum and 0.617 inches maximum
Material:
Rubber butadiene-acrylonitrile class nbr

Additional Information

SKU / Model: MS28775114
NSN: 5331-00-618-0801
FSC: Rings O / 5331
Product Series: MS28775
Pack Weight (Approx.) 0.262 lb
Minimum Qty (MOQ): 50
Schedule B: 4016.99.6050
ECCN: EAR99
National Motor Freight: 194120, Washers / Gaskets / Pckg Dvcs Noi
Download PDF Version
MS28775-114_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!
