MS28775-123

Military Standard Ring O

email this to someone
Description:

inner diameter: 1.174, thickness: 0.103", preformed packing, hydraulic

* Manufacturer certifications are shipped with your order FREE of charge
MS28775-123
MS28775-123
MS28775-123
MS28775-123
Add to Cart Backordered: Ships in 2-3 Days
MS28775-123 Price: $1.11 Each
Quantity:
Pre-packaged bag qty: 25 ea
* Sold in increments of 25
Add item to quote

MS28775-123 Datasheet Features and Specification

Outside Diameter:
1.362 inches minimum and 1.398 inches maximum
Cross-sectional Height:
0.100 inches minimum and 0.106 inches maximum
Center Hole Diameter:
1.168 inches minimum and 1.180 inches maximum
Material:
Rubber butadiene-acrylonitrile class nbr

Additional Information

SKU / Model: MS28775123
NSN: 5331-00-618-3754
FSC: Rings O / 5331
Product Series: MS28775
Pack Weight (Approx.) 0.167 lb
Minimum Qty (MOQ): 25
ECCN: EAR99
National Motor Freight: 194120, Washers / Gaskets / Pckg Dvcs Noi
Download PDF Version
MS28775-123_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

More MS28775 o-rings

MS28775-427

MS28775-427 O-Ring

MS28775-345

$1.98 Each, Inner diameter: 3.975in., thickness 0.210in., preformed packing hydraulic o-ring

MS28775-343

$2.88 Each, Inner diameter: 3.725, thickness: 0.210in. preformed packing hydraulic o-ring

MS28775-341

$2.38 Each, Inner diameter: 3.475in., thickness 0.210in., preformed packing hydraulic o-ring

MS28775-340

Inner diameter: 3.350in., thickness 0.210in., preformed packing hydraulic o-ring

MS28775-339

$1.94 Each, Inner diameter: 3.225, thickness: 0.210in., preformed packing hydraulic o-ringin.

Product Image Gallery

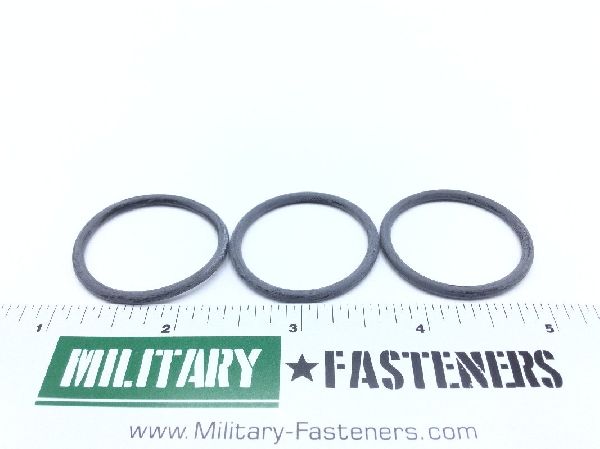

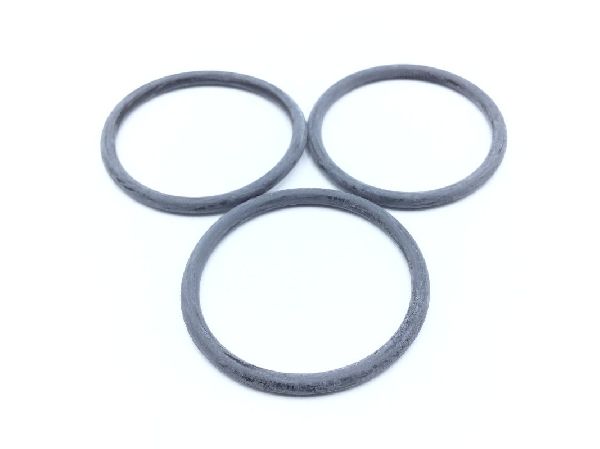

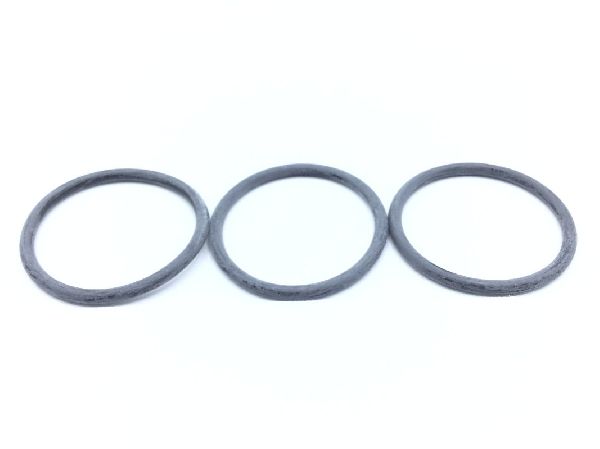

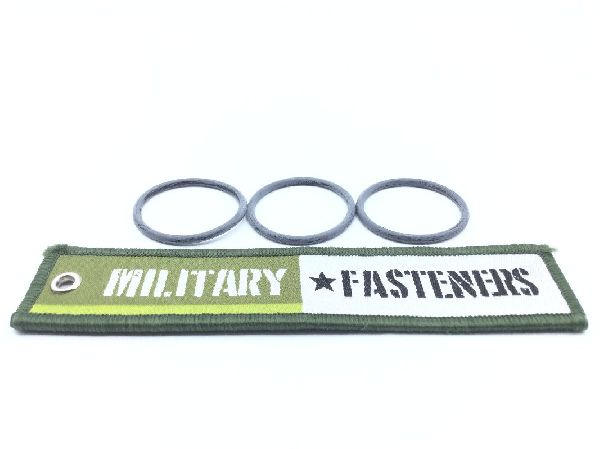

Product code MS28775-123
