MS29561-111

Military Standard Ring O

email this to someone
Description:

inner diameter: 0.424, thickness: 0.103", preformed packing o-ring, synthetic lubricant resistant

* Manufacturer certifications are shipped with your order FREE of charge
MS29561-111
MS29561-111
MS29561-111
MS29561-111
MS29561-111
MS29561-111
Add to Cart Up to qty 425 ships same day if ordered before 4pm EST
MS29561-111 Price:
buy now
$1.38 Each
Quantity:
Pre-packaged bag qty: 25 ea
* Sold in increments of 25
Add item to quote

MS29561-111 Datasheet Features and Specification

Center Hole Diameter:
Between 0.419 inches and 0.429 inches
Cross-sectional Height:
Between 0.100 inches and 0.106 inches
Elongation Percentage:
250
Hardness Rating:
70.0 shore durometer a
Material:
Rubber synthetic
Outside Diameter:
0.630 inches
Quick Specs
Material Rubber

Additional Information

SKU / Model: MS29561111
NSN: 5331-00-684-7784
FSC: Rings O / 5331
Product Series: MS29561
Pack Weight (Approx.) 0.141 lb
Minimum Qty (MOQ): 25
ECCN: EAR99
National Motor Freight: 194120, Washers / Gaskets / Pckg Dvcs Noi
Download PDF Version
MS29561-111_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More MS29561 o-rings

MS29561-325

o-ring

MS29561-260

5331-00-726-9307 O-Ring

MS29561-248

Inner diameter: 4.234in., thickness 0.139in., preformed packing o-ring, synthetic lubricant resistant, 5331-00-726-1236

MS29561-244

Inner diameter: 4.734in., thickness 0.139in., preformed packing o-ring, synthetic lubricant resistant

MS29561-243

$5.76 Each, Inner diameter: 4.019in., thickness 0.139in., preformed packing o-ring synthetic lubricant resistant

MS29561-242

o-ring

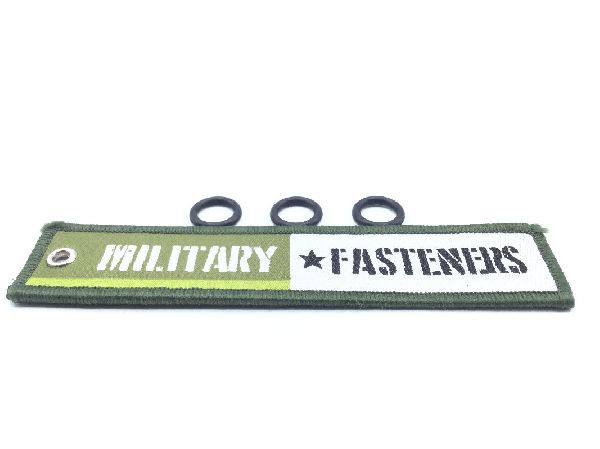

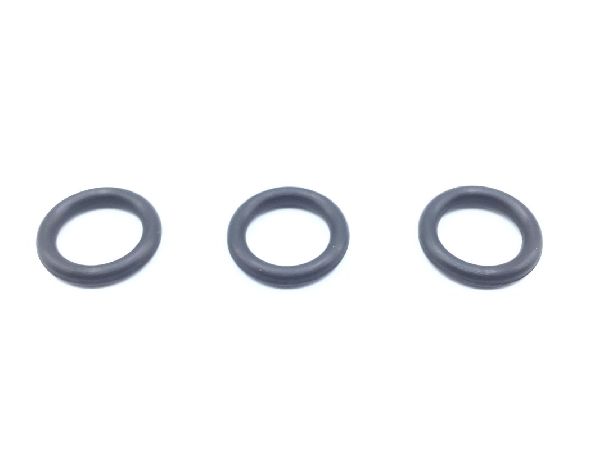

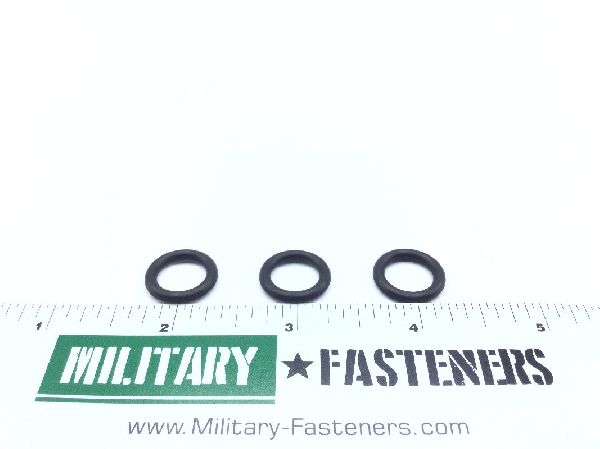

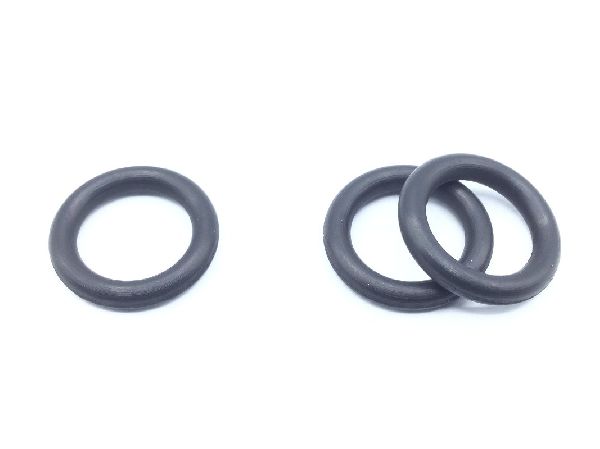

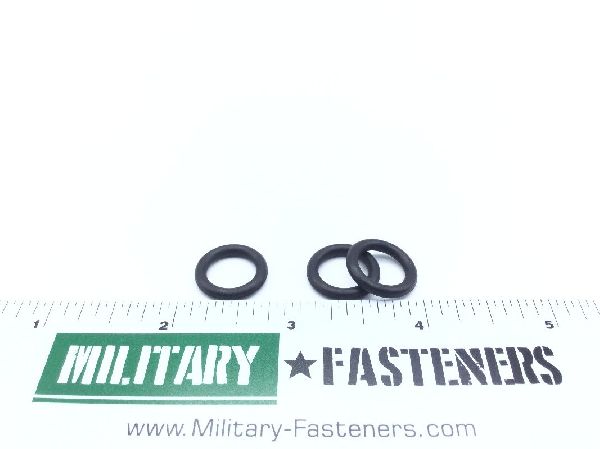

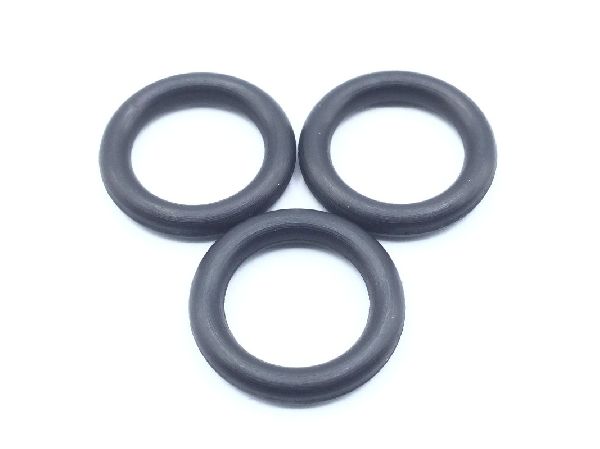

Product Image Gallery
