MS28775-217

Military Standard Ring O

email this to someone

Description:

inner diameter: 1.171, thickness: 0.139", preformed packing, hydraulic

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 100 ships same day if ordered before 4pm EST

MS28775-217 Price:	buy now $1.39 Each
Quantity: Pre-packaged bag qty: 25 ea
* Sold in increments of 25

Add item to quote

MS28775-217 Datasheet Features and Specification

Center Hole Diameter:

Between 1.165 inches and 1.177 inches

Cross-sectional Height:

Between 0.135 inches and 0.143 inches

Elongation Percentage:

160

Material:

Rubber butadiene-acrylonitrile class nbr

Outside Diameter:

1.449 inches

Tempurature Rating:

-65.0 degrees fahrenheit and 275.0 degrees fahrenheit

Quick Specs

Material

Rubber

Additional Information

SKU / Model:	MS28775217
NSN:	5331-00-579-7914
FSC:	Rings O / 5331
Product Series:	MS28775
Pack Weight (Approx.)	0.191 lb
Minimum Qty (MOQ):	25
ECCN:	EAR99
National Motor Freight:	194120, Washers / Gaskets / Pckg Dvcs Noi
Download PDF Version MS28775-217_Military-Fasteners-com.pdf

* report an issue on this page

More MS28775 o-rings

MS28775-427

MS28775-427 O-Ring

MS28775-345

$1.98 Each, Inner diameter: 3.975in., thickness 0.210in., preformed packing hydraulic o-ring

MS28775-343

$2.88 Each, Inner diameter: 3.725, thickness: 0.210in. preformed packing hydraulic o-ring

MS28775-341

$2.38 Each, Inner diameter: 3.475in., thickness 0.210in., preformed packing hydraulic o-ring

MS28775-340

Inner diameter: 3.350in., thickness 0.210in., preformed packing hydraulic o-ring

MS28775-339

$1.94 Each, Inner diameter: 3.225, thickness: 0.210in., preformed packing hydraulic o-ringin.

Product Image Gallery

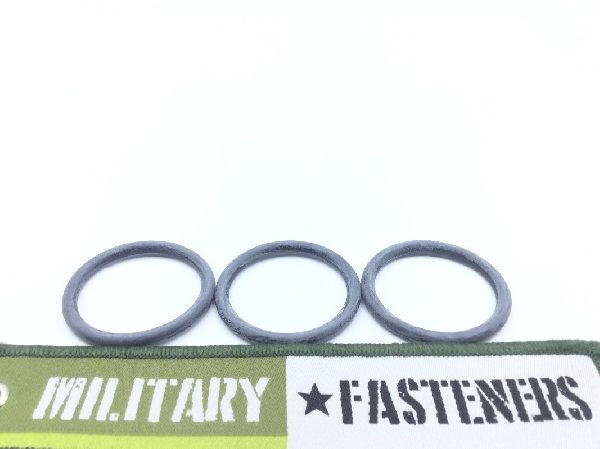

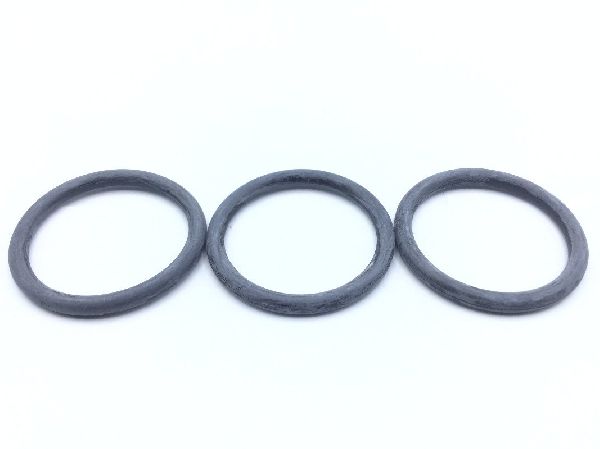

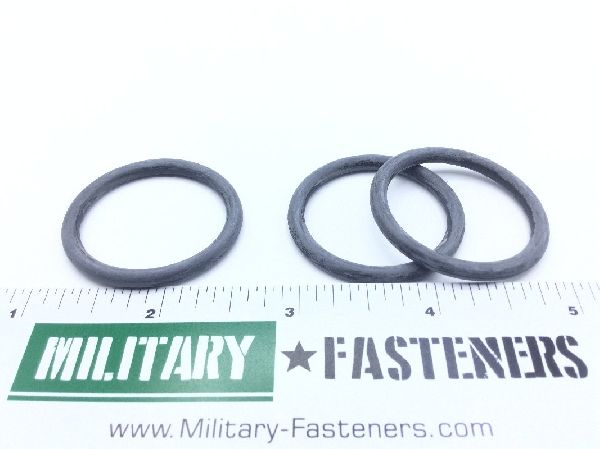

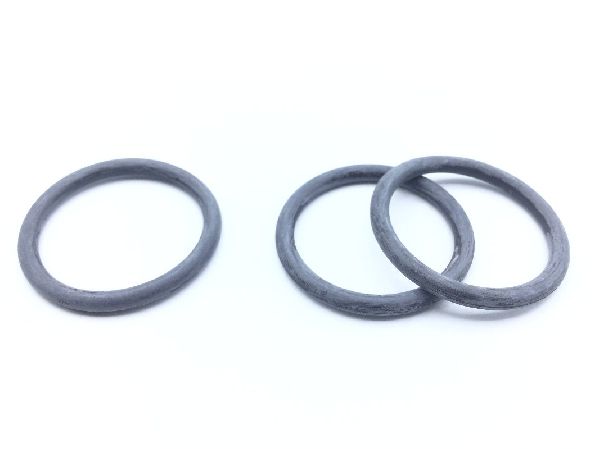

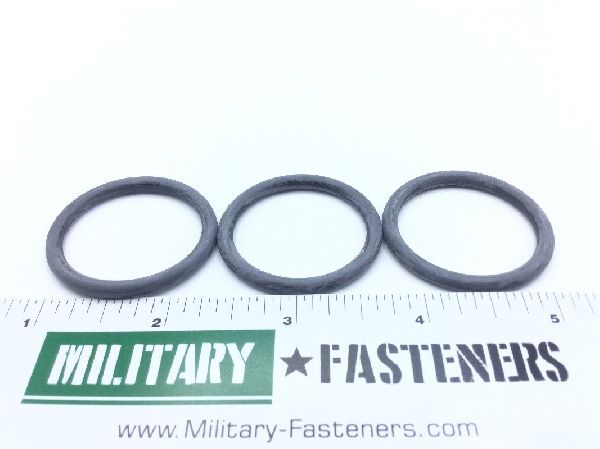

Product code MS28775-217
