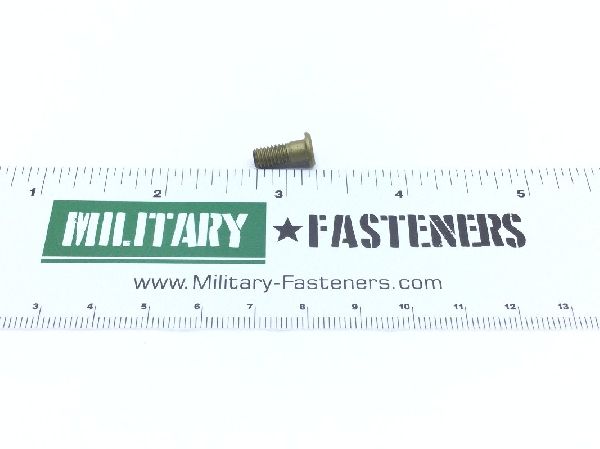

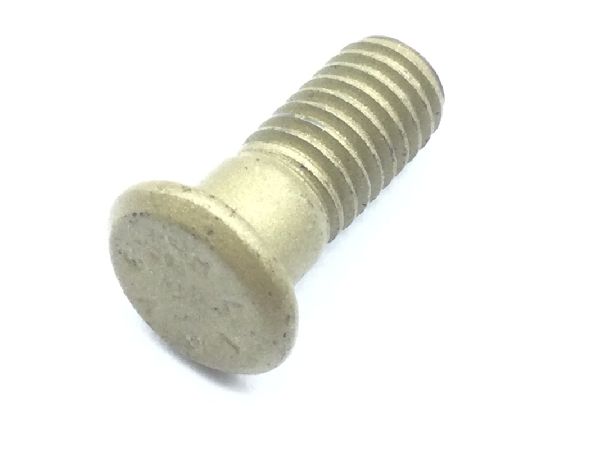

HL10VAZ6-2

Hi-Lok Rivet Pin

email this to someone
Description:

Diameter: 3/16", Grip Length: 1/8", protruding shear head, titanium

* Manufacturer certifications are shipped with your order FREE of charge
HL10VAZ6-2
HL10VAZ6-2
HL10VAZ6-2
HL10VAZ6-2
HL10VAZ6-2
HL10VAZ6-2
Add to Cart Up to qty 200 ships same day if ordered before 4pm EST
HL10VAZ6-2 Price:
buy now
$2.43 Each
Quantity:
Pre-packaged bag qty: 20 ea
* Sold in increments of 20
Add item to quote

HL10VAZ6-2 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.440 inches minimum and 0.460 inches maximum
Head Style:
Err-090
Head Height:
0.044 inches minimum and 0.055 inches maximum
Width Between Flats:
0.079 inches minimum and 0.081 inches maximum
Shank Diameter:
0.189 inches minimum and 0.190 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.295 inches minimum and 0.315 inches maximum
Lubrication:
Cetyl alcohol
Grip Length:
0.130 inches maximum
Thready Qty Per Inch (tpi):
32
Thread Size:
0.190 inches
Shear Strength:
95000 single pounds per square inch
Material:
Titanium alloy overall
Material Specification:
Ams 4928 assn std single material response overall or ams 4967 assn std single material response overall
Surface Treatment:
Aluminum overall
Surface Treatment Specification:
294,fscm 73197 mfr ref single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL10VAZ62
NSN: 5320-00-338-5674
FSC: Rivets / 5320
Product Series: HL10VAZ6
Pack Weight (Approx.) 0.050 lb
Minimum Qty (MOQ): 20
ECCN: EAR99
National Motor Freight: 095190, Hardware, Noi Sub 9
Download PDF Version
HL10VAZ6-2_Military-Fasteners-com.pdf
