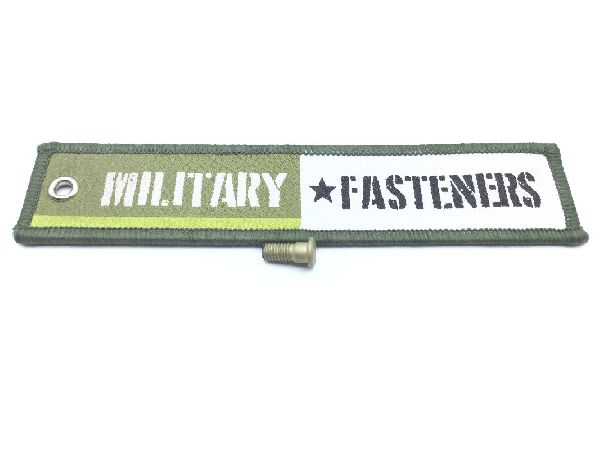

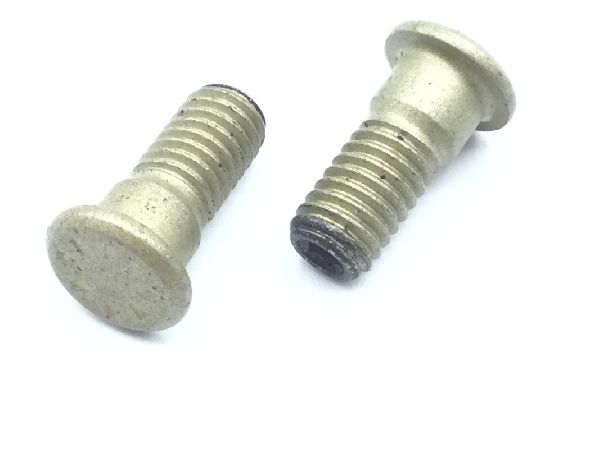

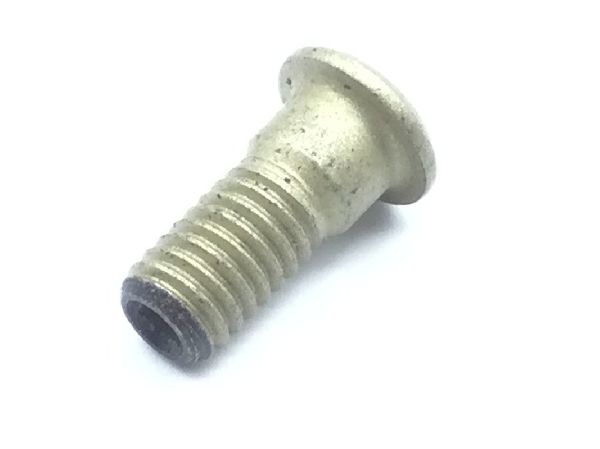

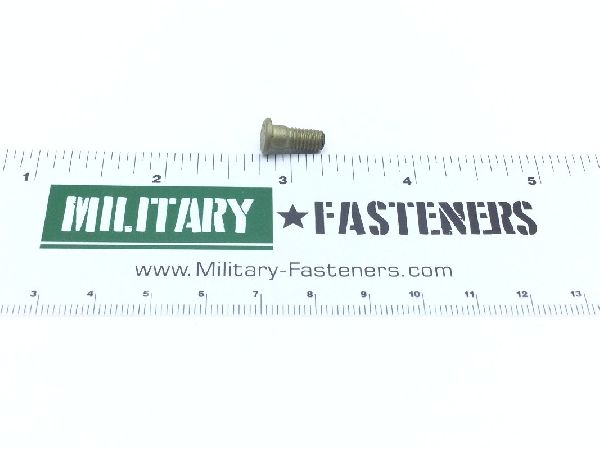

HL110VAZ6-2

Hi-Lok Rivet Pin

email this to someone
Description:

protruding shear head - oversized titanium

* Manufacturer certifications are shipped with your order FREE of charge
HL110VAZ6-2
HL110VAZ6-2
HL110VAZ6-2
HL110VAZ6-2
HL110VAZ6-2
HL110VAZ6-2
HL110VAZ6-2
Add to Cart Up to qty 100 ships same day if ordered before 4pm EST
HL110VAZ6-2 Price:
buy now
$7.07 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL110VAZ6-2 Datasheet Features and Specification

Fastener Length:
0.455 inches
Grip Length:
0.130 inches
Head Height:
0.055 inches
Head Major Diameter:
0.315 inches
Head Style:
Err-090
Lubrication:
Cetyl alcohol
Material:
Titanium alloy
Material Specification:
Ams4928 assn standard single material response or ams4967 assn standard single material response
Shank Diameter:
0.1895 inches
Shank Style:
Threaded straight pin-rivet
Thread Class:
3a
Thread Direction:
Right-hand
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Quick Specs
Thread Series UNJF
Thread Class 3A
Material Titanium

Additional Information

SKU / Model: HL110VAZ62
NSN: 5320-01-445-5446
FSC: Rivets / 5320
Product Series: HL110VAZ6
Pack Weight (Approx.) 0.029 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 096320, Rivets I / S Nickel Plated Buffed
Download PDF Version
HL110VAZ6-2_Military-Fasteners-com.pdf
