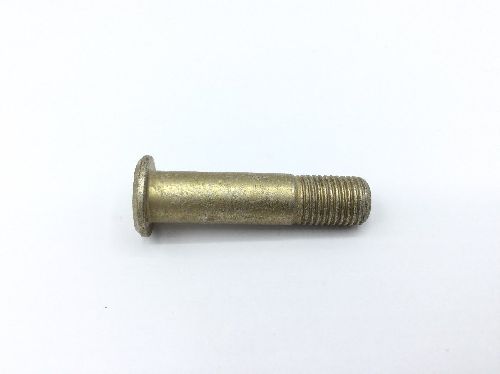

HL18PB12-16

Hi-Lok Rivet Pin

email this to someone
Description:

Fastener Length: 1-35/64", Thread Size: 3/8", shear head

* Manufacturer certifications are shipped with your order FREE of charge
HL18PB12-16
HL18PB12-16
HL18PB12-16
Add to Cart Up to qty 15 ships same day if ordered before 4pm EST
HL18PB12-16 Price:
buy now
$17.94 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

HL18PB12-16 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Identification Code Color:
Bronze
Fastener Length:
1.535 inches minimum and 1.555 inches maximum
Head Style:
Err-090
Head Height:
0.078 inches minimum and 0.088 inches maximum
Width Between Flats:
0.1582 inches minimum and 0.1617 inches maximum
Shank Diameter:
0.3735 inches minimum and 0.3745 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.565 inches minimum and 0.600 inches maximum
Grip Length:
1.005 inches maximum
Thready Qty Per Inch (tpi):
24
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.375 inches
Shear Strength:
95000 single pounds per square inch
Material:
Steel comp e4340 overall or steel comp 4340 overall or steel comp 4140 overall or steel comp 8740 overall
Material Specification:
Mil-s-5000 mil spec 1st material response overall or mil-s-5000 mil spec 2nd material response overall or mil-s-5626 mil spec 3rd material response overall or mil-s-6049 mil spec 4th material response overall
Surface Treatment:
Cadmium overall
Surface Treatment Specification:
Qq-p-416,ty 2,cl 2 fed spec single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL18PB1216
NSN: 5320-01-041-0755
FSC: Rivets / 5320
Product Series: HL18PB12
Pack Weight (Approx.) 0.257 lb
Minimum Qty (MOQ): 5
Schedule B: 7318.24.0000
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL18PB12-16_Military-Fasteners-com.pdf
