HL18PB5-17

Hi-Lok Rivet Pin

email this to someone
Description:

Diameter: 5/32", Grip Length: 1-1/16", protruding shear head, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL18PB5-17
HL18PB5-17
HL18PB5-17
HL18PB5-17
HL18PB5-17
HL18PB5-17
Add to Cart Up to qty 20 ships same day if ordered before 4pm EST
HL18PB5-17 Price:
buy now
$5.21 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL18PB5-17 Datasheet Features and Specification

Fastener Length:
Between 1.359 inches and 1.389 inches
Grip Length:
Between 1.057 inches and 1.067 inches
Head Height:
Between 0.037 inches and 0.047 inches
Head Major Diameter:
Between 0.242 inches and 0.262 inches
Head Style:
Err-090
Material:
Steel comp 4140 or steel comp 8740 or steel comp 4130
Material Specification:
Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-6758 military specification 3rd material response
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.164 inches
Shank Diameter:
Between 0.1625 inches and 0.1635 inches
Shank Style:
Threaded straight pin-rivet
Shear Strength:
95000 single pounds per square inch
Surface Treatment:
Cadmium
Surface Treatment Specification:
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class:
3a
Thread Direction:
Right-hand
Thread Series Designator:
Unjc
Width Between Flats:
Between 0.0791 inches and 0.0801 inches
Quick Specs
Thread Class 3A
Material Steel

Additional Information

SKU / Model: HL18PB517
NSN: 5320-01-017-4187
FSC: Rivets / 5320
Product Series: HL18PB5
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 095190, Hardware, Noi
Download PDF Version
HL18PB5-17_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL18PB5 pin-rivets

HL18PB5-9

$1.62 Each, Protruding shear head alloy steel cadmium plated pin

HL18PB5-8

Protruding shear head alloy steel cadmium plated

HL18PB5-7

Hi-Lok protruding shear head alloy steel cadmium plated diameter 5/32 grip length 7/16

HL18PB5-6

Protruding shear head alloy steel cadmium plated diameter 5/32 grip length 3/8

HL18PB5-5

Protruding shear head alloy steel cadmium plated

HL18PB5-4

Protruding shear head rivet alloy steel cadmium plated Diameter: 5/32 Grip Length: 1/4

Product Image Gallery

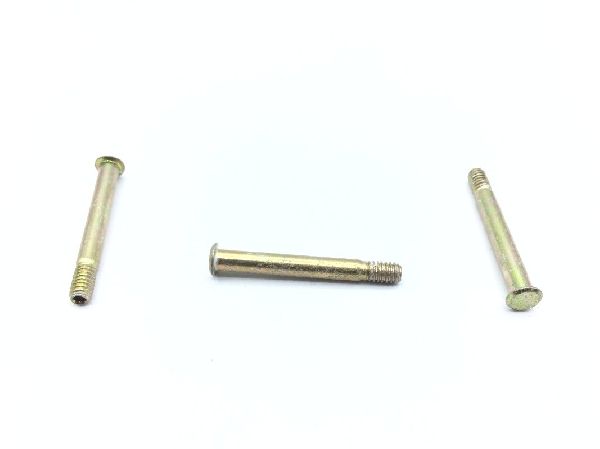

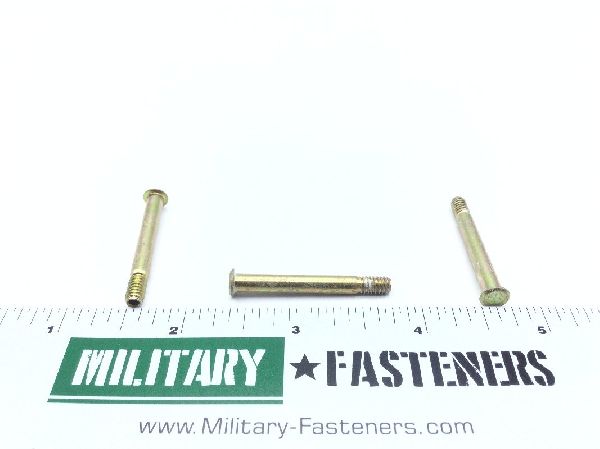

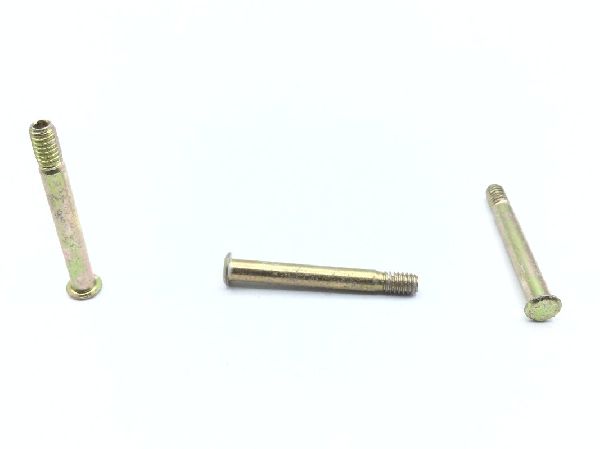

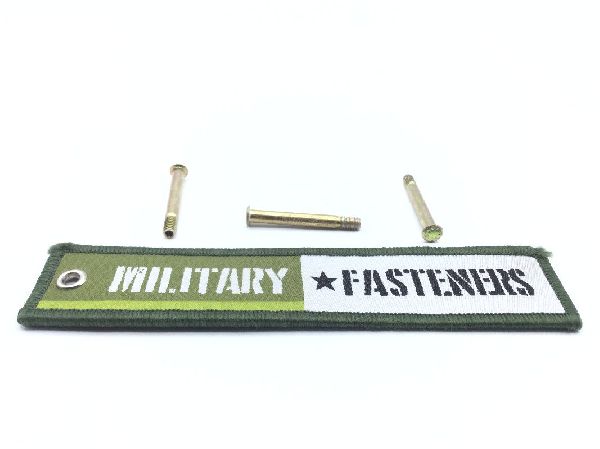

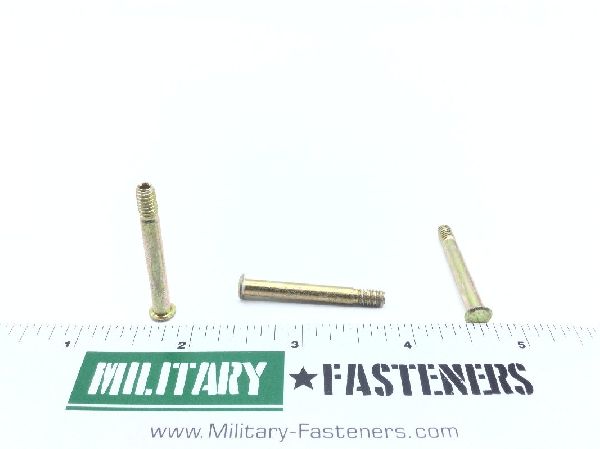

Product code HL18PB5-17
