HL20PB6-22

Hi-Lok Rivet Pin

email this to someone
Description:

protruding tension head alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL20PB6-22
HL20PB6-22
HL20PB6-22
HL20PB6-22
HL20PB6-22
HL20PB6-22
Add to Cart Up to qty 90 ships same day if ordered before 4pm EST
HL20PB6-22 Price:
buy now
$3.78 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL20PB6-22 Datasheet Features and Specification

Surface Treatment:
Cadmium
Shear Strength:
5380 double pounds per square inch
Shank Style:
Threaded straight pin-rivet
Shank Diameter:
Between 0.188 inches and 0.190 inches
Part Name Assigned By Controlling Agency:
Protruding head alloy steel hi-lok pin
Min. Tensile Strength (psi):
160000 pounds per square inch
Material:
Steel comp 8740
Lubrication:
Hi-shear corp specification 305 cetyl alcohol
Head Style:
Straight pan
Head Major Diameter:
Between 0.357 inches and 0.377 inches
Head Height:
Between 0.064 inches and 0.074 inches
Grip Length:
Between 1.370 inches and 1.380 inches
Fastener Length:
Between 1.690 inches and 1.710 inches
Thread Class:
3a
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
32
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Thread Size:
0.190 inches
Width Between Flats:
Between 0.104 inches and 0.119 inches
Quick Specs
Thread Qty 32
Thread Series UNJF
Thread Class 3A
Material Steel

Additional Information

SKU / Model: HL20PB622
NSN: 5320-01-565-4346
FSC: Rivets / 5320
Product Series: HL20PB6
Pack Weight (Approx.) 0.155 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL20PB6-22_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL20PB6 pin-rivets

HL20PB6-9

Protruding tension head alloy steel cadmium plated Diameter: 3/16 Grip Length: 9/16

HL20PB6-8

Protruding tension head alloy steel cadmium plated hi-lok pin

HL20PB6-7

Protruding tension head alloy steel cadmium plated

HL20PB6-6

Pin-Rivet 5320-00-864-6099 Protruding tension head alloy steel cadmium plated

HL20PB6-5

Protruding tension head alloy steel cadmium plated pin diameter 3/16

HL20PB6-4

Protruding tension head alloy steel cadmium plated

Product Image Gallery

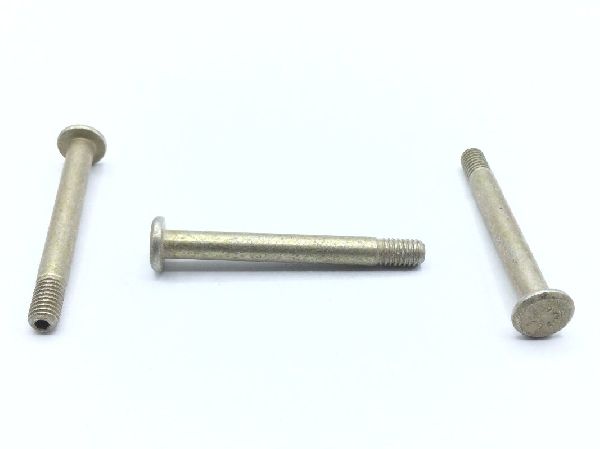

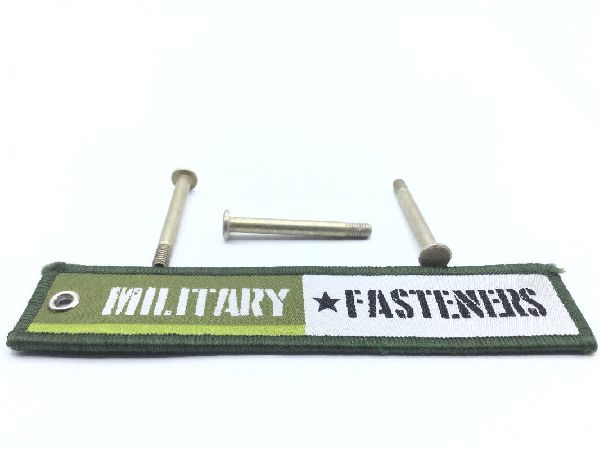

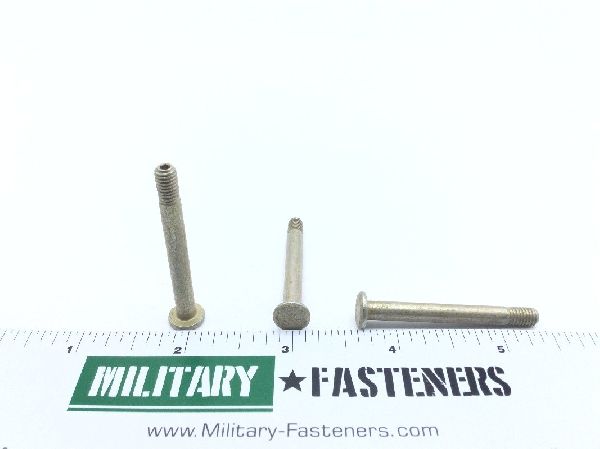

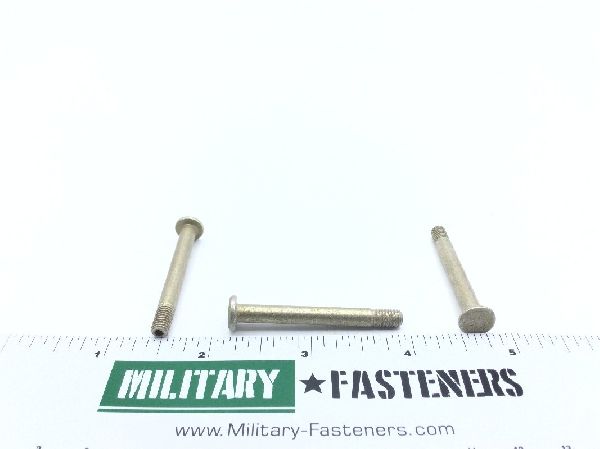

Product code HL20PB6-22
