HL218-8-7

Hi-Lok™ Rivet Pin

email this to someone
Description:

protruding shear head oversized for hl18 - alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL218-8-7
HL218-8-7
HL218-8-7
HL218-8-7
HL218-8-7
HL218-8-7
HL218-8-7
Add to Cart Up to qty 110 ships same day if ordered before 4pm EST
HL218-8-7 Price:
buy now
$5.47 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL218-8-7 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.823 inches minimum and 0.843 inches maximum
Head Style:
Flush countersunk
Head Height:
0.059 inches minimum and 0.069 inches maximum
Width Between Flats:
0.0947 inches minimum and 0.0967 inches maximum
Shank Diameter:
0.2797 inches minimum and 0.2807 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.387 inches minimum and 0.412 inches maximum
Lubrication:
Cetyl alcohol, spec 305, hi-shear corp
Grip Length:
0.443 inches maximum
Thready Qty Per Inch (tpi):
32
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.250 inches
Shear Strength:
95000 single pounds per square inch
Material:
Steel comp e4340 overall or steel comp 4340 overall or steel comp 4140 overall or steel comp 8740 overall
Material Specification:
Mil-s-5000 mil spec 1st material response overall or mil-s-5000 mil spec 2nd material response overall or mil-s-5626 mil spec 3rd material response overall or mil-s-6049 mil spec 4th material response overall
Surface Treatment:
Cadmium overall and chromate overall
Surface Treatment Specification:
Qq-p-416,ty 2,cl 2 fed spec single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL21887
NSN: 5320-01-176-5910
FSC: Rivets / 5320
Product Series: HL218
Pack Weight (Approx.) 0.144 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL218-8-7_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL218 pin-rivets

HL218PB6-8

HL218PB6-8 Pin-Rivet

HL218-8-9

protruding shear head - oversized for hl18 - alloy steel cadmium plated

HL218-8-8

$1.80 Each, Protruding shear head oversized for hl18 alloy steel cadmium plated

HL218-8-6

Protruding shear head oversized for hl18 alloy steel cadmium plated

HL218-8-5

Protruding shear head, oversized for hl18, alloy steel cadmium plated, 5306-00-494-7990

HL218-8-4

protruding shear head - oversized for hl18 - alloy steel cadmium plated

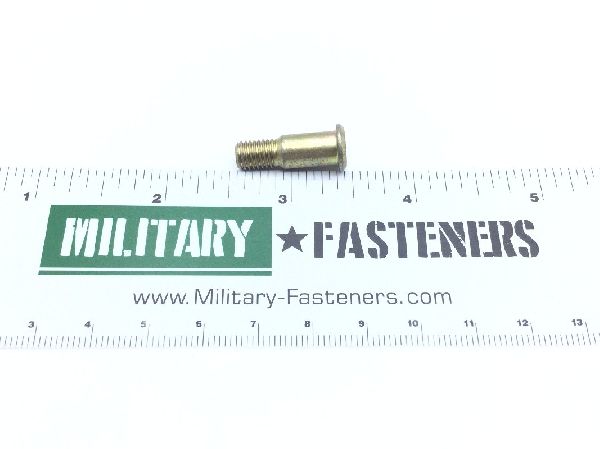

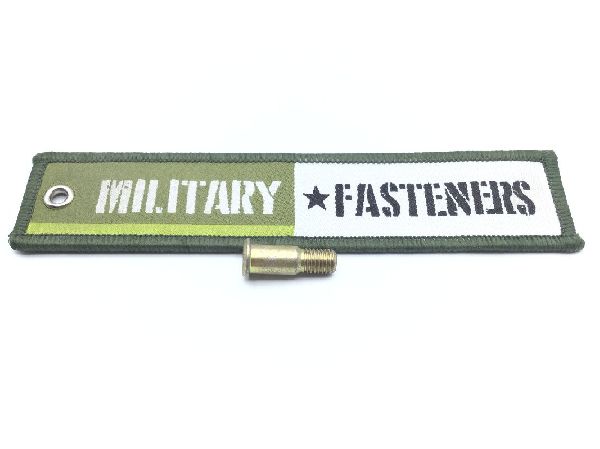

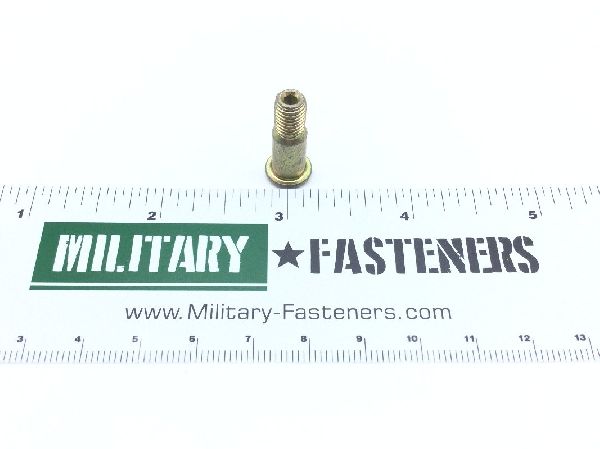

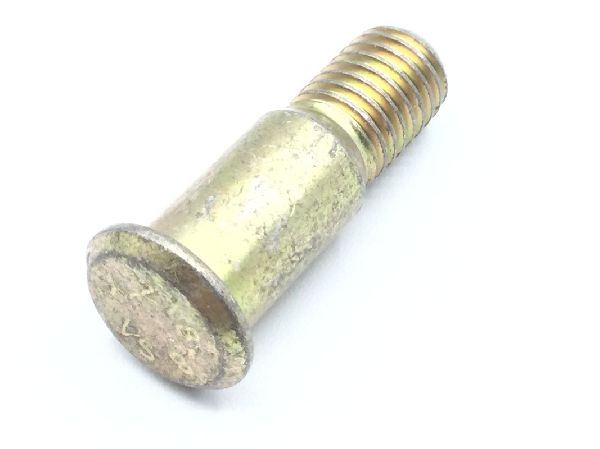

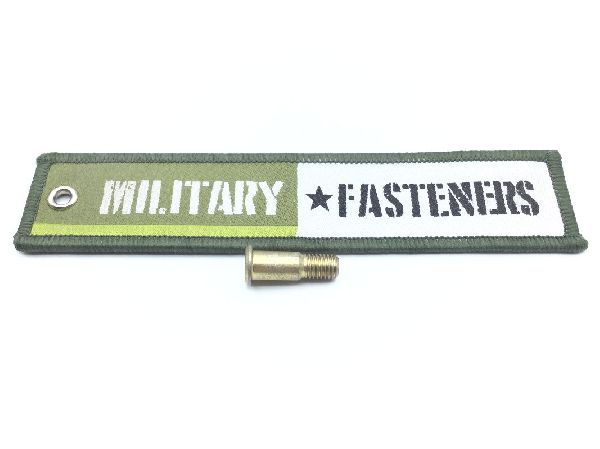

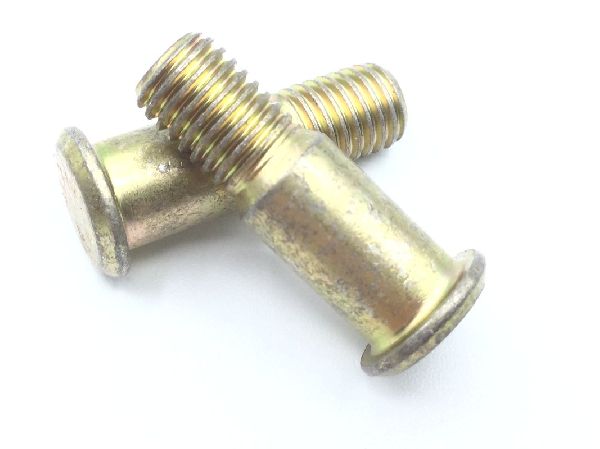

Product Image Gallery
