HL21PB6-7

Hi-Lok™ Rivet Pin

email this to someone
Description:

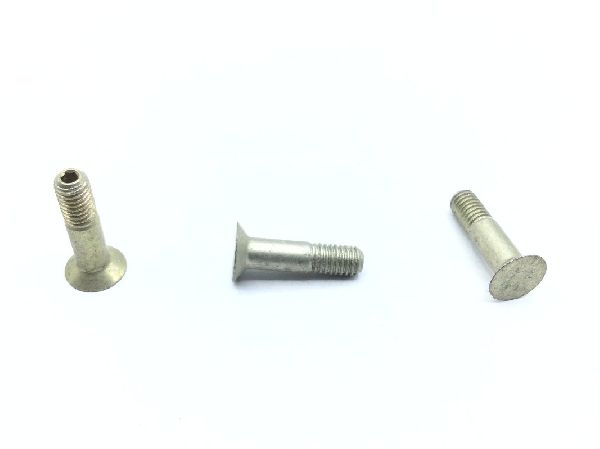

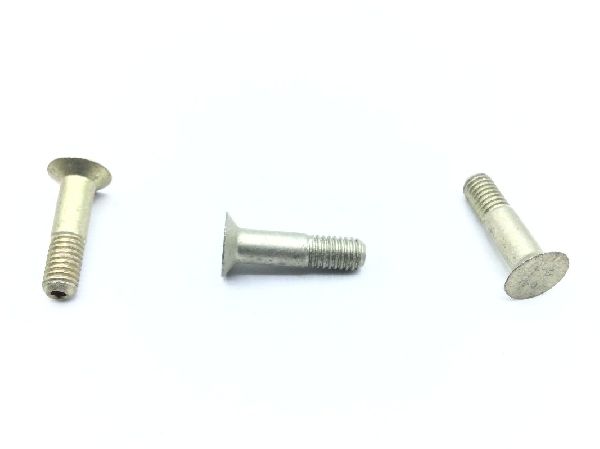

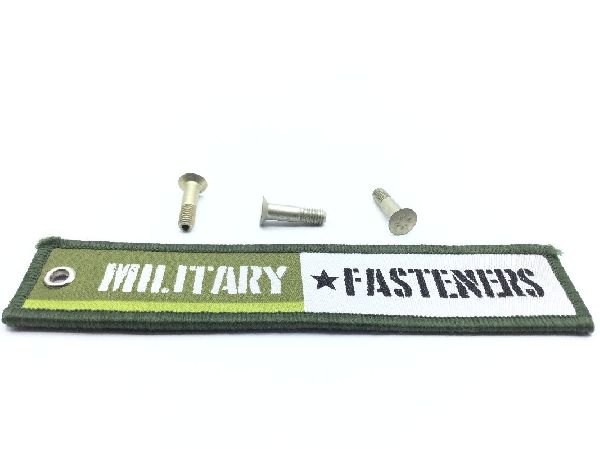

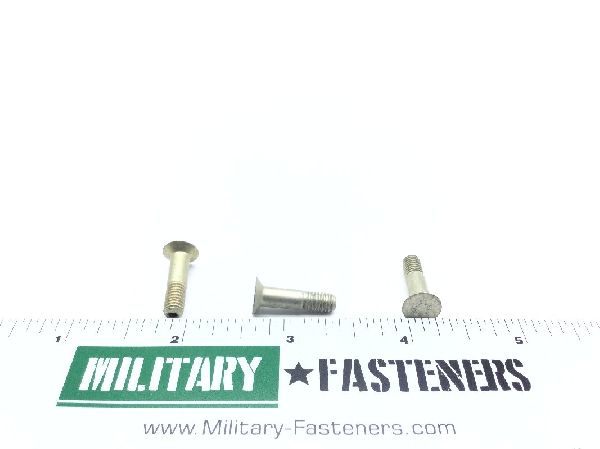

Diameter: 3/16", Grip Length: 7/16", flush tension head, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL21PB6-7
HL21PB6-7
HL21PB6-7
HL21PB6-7
HL21PB6-7
HL21PB6-7
Add to Cart Up to qty 200 ships same day if ordered before 4pm EST
HL21PB6-7 Price:
buy now
$2.97 Each
Quantity:
Pre-packaged bag qty: 20 ea
* Sold in increments of 20
Add item to quote

HL21PB6-7 Datasheet Features and Specification

Countersink Angle:
100.0 degrees
Fastener Length:
Between 0.753 inches and 0.773 inches
Grip Length:
0.443 inches
Head Major Diameter:
Between 0.377 inches and 0.381 inches
Head Style:
Flush countersunk
Material:
Steel comp 4140 or steel comp 8740 or steel comp 4130
Material Specification:
Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-6758 military specification 3rd material response
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.190 inches
Shank Diameter:
Between 0.189 inches and 0.190 inches
Shank Style:
Threaded straight pin-rivet
Surface Treatment:
Cadmium
Surface Treatment Specification:
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class:
3a
Thread Direction:
Right-hand
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Width Between Flats:
Between 0.079 inches and 0.081 inches
Quick Specs
Thread Series UNJF
Thread Class 3A
Material Steel

Additional Information

SKU / Model: HL21PB67
NSN: 5320-00-757-5506
FSC: Rivets / 5320
Product Series: HL21PB6
Pack Weight (Approx.) 0.128 lb
Minimum Qty (MOQ): 20
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL21PB6-7_Military-Fasteners-com.pdf
