HL22-5-22

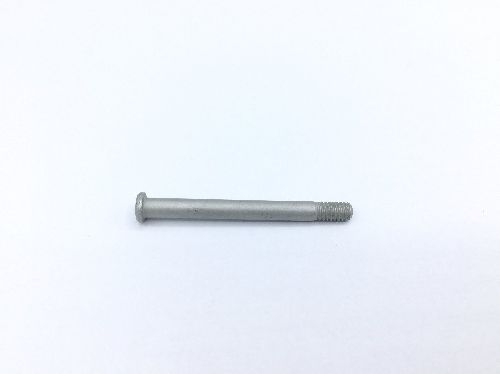

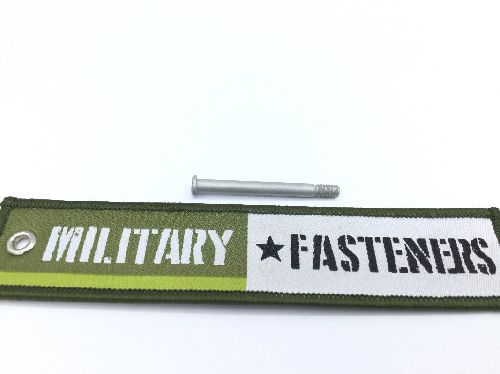

Hi-Lok™ Rivet Pin

email this to someone

Description:

Fastener Length: 1-11/16", Thread Size: 5/32", shear head

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 22 ships same day if ordered before 4pm EST

HL22-5-22 Price:	buy now $55.38 Each
Quantity: Pre-packaged bag qty: 2 ea
* Sold in increments of 2

Add item to quote

HL22-5-22 Datasheet Features and Specification

Thread Class:

Thread Direction:

Right-hand

Fastener Length:

1.677 inches minimum and 1.697 inches maximum

Head Style:

Err-090

Head Height:

0.045 inches minimum and 0.060 inches maximum

Width Between Flats:

0.064 inches minimum and 0.065 inches maximum

Shank Diameter:

0.1625 inches minimum and 0.1635 inches maximum

Shank Style:

Pin-rivet, straight, threaded

Head Major Diameter:

0.242 inches minimum and 0.262 inches maximum

Lubrication:

Cetyl alcohol

Grip Length:

1.380 inches maximum

Thread Size:

0.164 inches

Shear Strength:

1760 double pounds per square inch

Heat Treatment:

T-6 solution heat treated overall

Material:

Aluminum alloy 7075 overall

Material Specification:

Qq-a-225/9 fed spec single material response overall or qq-a-430 fed spec single material response overall

Surface Treatment:

Anodize overall

Surface Treatment Specification:

Mil-a-8625 mil spec single treatment response overall

Thread Series Designator:

Unjc

Additional Information

SKU / Model:	HL22522
NSN:	5320-00-343-5362
FSC:	Rivets / 5320
Product Series:	HL22
Pack Weight (Approx.)	0.000 lb
Minimum Qty (MOQ):	2
Schedule B:	7616.10.1000
ECCN:	EAR99
National Motor Freight:	013630, Alum Rivets
Download PDF Version HL22-5-22_Military-Fasteners-com.pdf
