HL23-5-4

Hi-Lok™ Rivet Pin

email this to someone
Description:

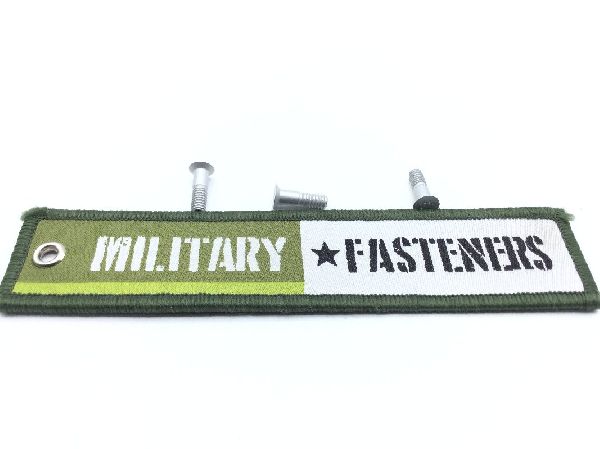

Diameter: 5/32", Grip Length: 1/4", flush ms20426 shear head, aluminum alloy, anodized, HL23 series pin

* Manufacturer certifications are shipped with your order FREE of charge
HL23-5-4
HL23-5-4
HL23-5-4
HL23-5-4
HL23-5-4
HL23-5-4
Add to Cart Up to qty 420 ships same day if ordered before 4pm EST
HL23-5-4 Price:
buy now
$5.08 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL23-5-4 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.552 inches minimum and 0.572 inches maximum
Head Style:
Flush countersunk
Width Between Flats:
0.063 inches minimum and 0.064 inches maximum
Shank Diameter:
0.162 inches minimum and 0.163 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.287 inches minimum and 0.292 inches maximum
Grip Length:
0.245 inches minimum and 0.255 inches maximum
Thread Size:
0.164 inches
Countersink Angle:
100.0 degrees nominal
Heat Treatment:
As fabricated overall
Material:
Aluminum alloy 7075 overall
Material Specification:
Qq-a-225/9 fed spec single material response overall or qq-a-430 fed spec single material response overall
Surface Treatment:
Anodize overall
Surface Treatment Specification:
Mil-a-8625 mil spec single treatment response overall
Thread Series Designator:
Unjc

Additional Information

SKU / Model: HL2354
NSN: 5320-00-455-3570
FSC: Rivets / 5320
Product Series: HL23
Pack Weight (Approx.) 0.017 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL23-5-4_Military-Fasteners-com.pdf
