HL31-5-5

Hi-Lok Rivet Pin

email this to someone
Description:

flush shear head, 431 stainless steel

* Manufacturer certifications are shipped with your order FREE of charge
HL31-5-5
HL31-5-5
HL31-5-5
HL31-5-5
HL31-5-5
HL31-5-5
Add to Cart Up to qty 28 ships same day if ordered before 4pm EST
HL31-5-5 Price:
buy now
$16.56 Each
Quantity:
Pre-packaged bag qty: 2 ea
* Sold in increments of 2
Add item to quote

HL31-5-5 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.614 inches minimum and 0.634 inches maximum
Head Style:
Flush countersunk
Width Between Flats:
0.079 inches minimum and 0.080 inches maximum
Shank Diameter:
0.1630 inches minimum and 0.1635 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.256 inches minimum and 0.261 inches maximum
Grip Length:
0.317 inches maximum
Thready Qty Per Inch (tpi):
36
Thread Size:
0.164 inches
Shear Strength:
125000 single pounds per square inch
Countersink Angle:
100.0 degrees nominal
Material:
Steel comp 431 overall
Material Specification:
Mil-s-18732 mil spec 1st material response overall or ams 5628 assn std 2nd material response overall
Surface Treatment:
Passivate overall
Surface Treatment Specification:
258,fscm 73197 mfr ref single treatment response overall
Thread Series Designator:
Unjc

Additional Information

SKU / Model: HL3155
NSN: 5320-01-006-9499
FSC: Rivets / 5320
Product Series: HL31
Pack Weight (Approx.) 0.014 lb
Minimum Qty (MOQ): 2
ECCN: EAR99
National Motor Freight: 095190, Hardware, Noi Sub 9
Download PDF Version
HL31-5-5_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL31 pin-rivets

HL31-8-9

Fastener Length: 61/64", Thread Size: 1/4"

HL31-8-8

Fastener Length: 1/16", Thread Size: 1/4"

HL31-6-3

Fastener Length: 33/64", Thread Size: 3/16"

HL31-5-2

Fastener Length: 7/16", Thread Size: 5/32"

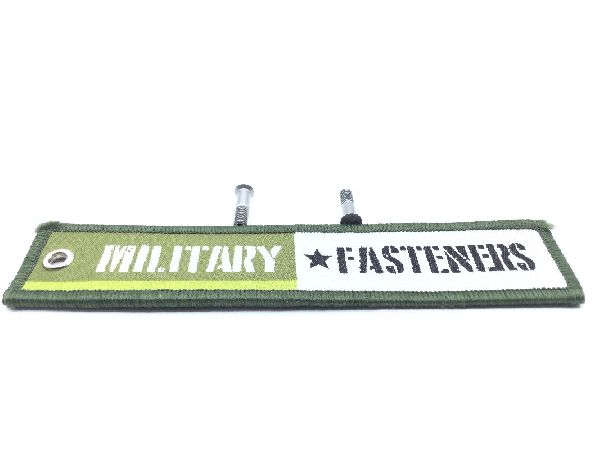

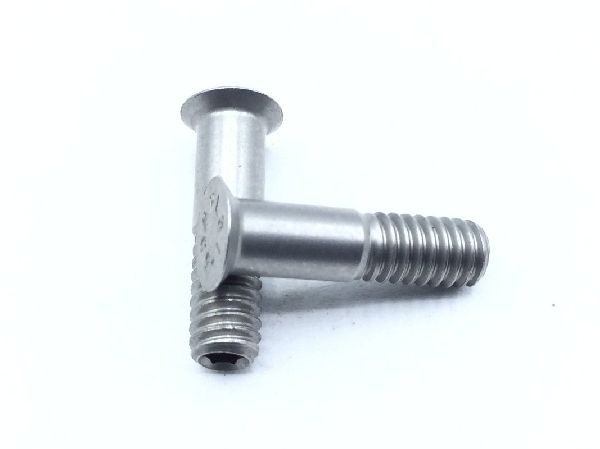

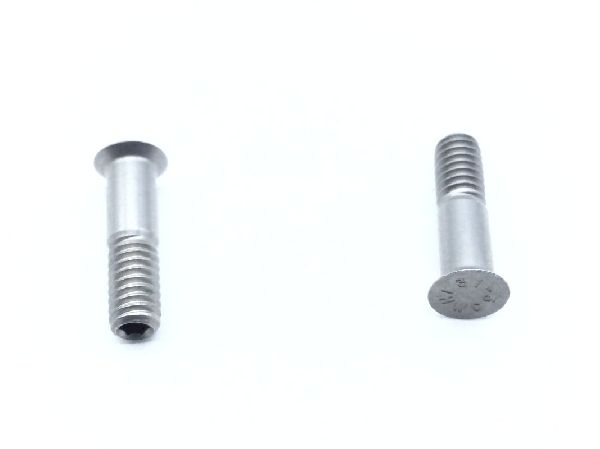

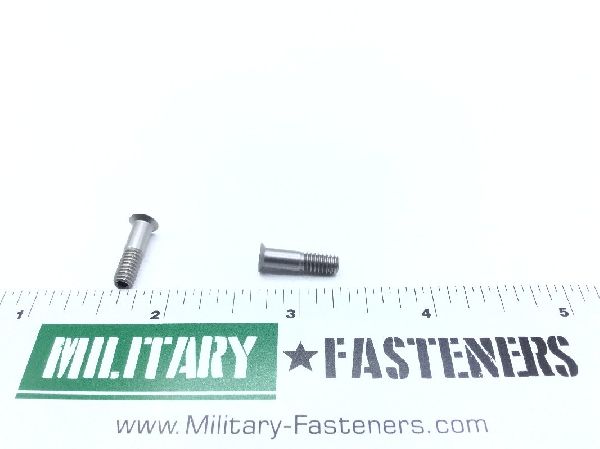

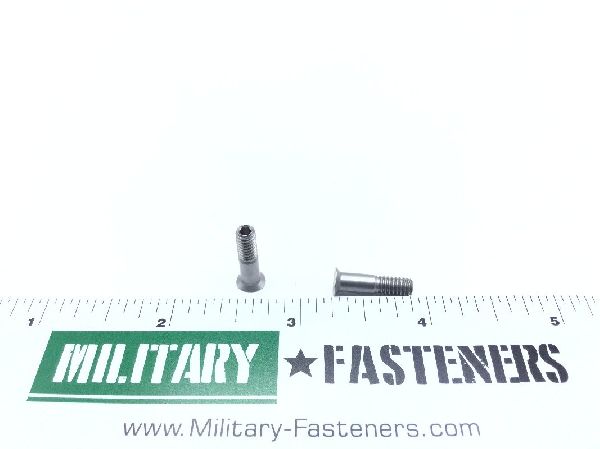

Product Image Gallery
