HL328-8-4

Hi-Lok Rivet Pin

email this to someone
Description:

Fastener Length: 41/64", Thread Size: 1/4", HL328 series pin

* Manufacturer certifications are shipped with your order FREE of charge
HL328-8-4
HL328-8-4
Add to Cart Up to qty 180 ships same day if ordered before 4pm EST
HL328-8-4 Price:
buy now
$3.81 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL328-8-4 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.635 inches minimum and 0.655 inches maximum
Head Style:
Err-090
Head Height:
0.059 inches minimum and 0.069 inches maximum
Width Between Flats:
0.0947 inches minimum and 0.0967 inches maximum
Shank Diameter:
0.2485 inches minimum and 0.2495 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.387 inches minimum and 0.412 inches maximum
Lubrication:
Cetyl alcohol, spec 305, hi-shear corp
Grip Length:
0.255 inches maximum
Thready Qty Per Inch (tpi):
28
Min. Tensile Strength (psi):
180000 pounds per square inch
Thread Size:
0.250 inches
Shear Strength:
108000 single pounds per square inch
Material:
Steel comp e4340 overall or steel comp 4140 overall or steel comp 8740 overall
Material Specification:
Mil-s-5000 mil spec 1st material response overall or mil-s-5626 mil spec 2nd material response overall or mil-s-6049 mil spec 3rd material response overall
Surface Treatment:
Cadmium overall and chromate overall
Surface Treatment Specification:
Qq-p-416,ty 2,cl 2 fed spec single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL32884
NSN: 5320-01-286-6131
FSC: Rivets / 5320
Product Series: HL328
Pack Weight (Approx.) 0.103 lb
Minimum Qty (MOQ): 10
Schedule B: 7318.24.0000
ECCN: 9A991
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL328-8-4_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL328 pin-rivets

HL328-8-9

Rivet

HL328-8-8

Rivet

HL328-8-7

Rivet

HL328-8-6

Fastener Length: 49/64", Thread Size: 1/4"

HL328-6-9

protruding shear head - alloy steel interference application cadmium plated

HL328-6-8

protruding shear head - alloy steel interference application cadmium plated

Product Image Gallery

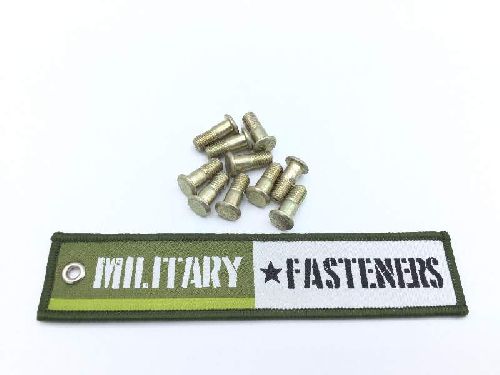

Product code HL328-8-4
