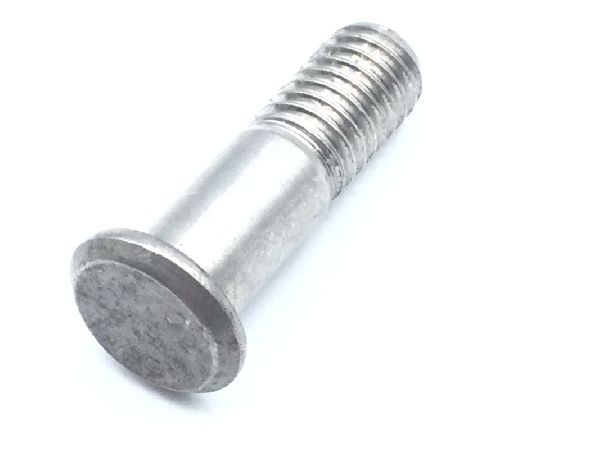

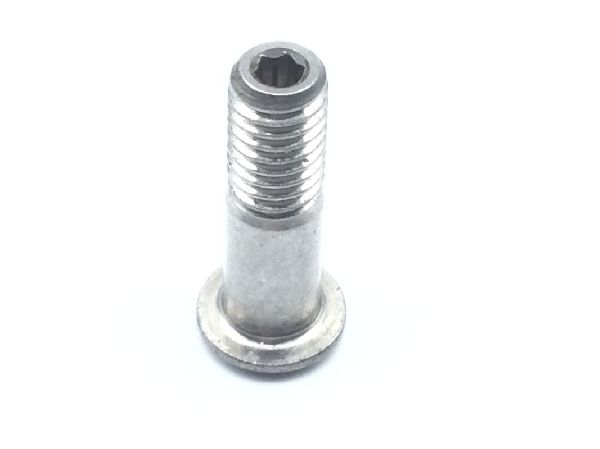

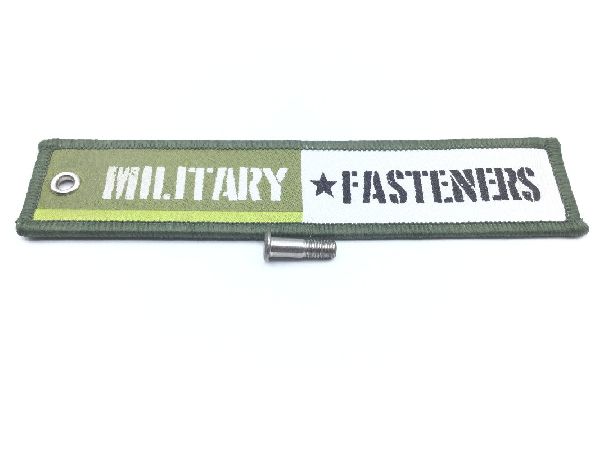

HL40-6-5

Hi-Lok™ Rivet Pin

email this to someone
Description:

Fastener Length: 41/64", Thread Size: 3/16

* Manufacturer certifications are shipped with your order FREE of charge
HL40-6-5
HL40-6-5
HL40-6-5
HL40-6-5
HL40-6-5
HL40-6-5
Add to Cart Up to qty 140 ships same day if ordered before 4pm EST
HL40-6-5 Price:
buy now
$3.12 Each
Quantity:
Pre-packaged bag qty: 20 ea
* Sold in increments of 20
Add item to quote

HL40-6-5 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.627 inches minimum and 0.647 inches maximum
Head Style:
Err-090
Head Height:
0.045 inches minimum and 0.055 inches maximum
Width Between Flats:
0.0791 inches minimum and 0.0806 inches maximum
Shank Diameter:
0.1890 inches minimum and 0.1895 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.295 inches minimum and 0.315 inches maximum
Lubrication:
Cetyl alcohol
Grip Length:
0.317 inches maximum
Thready Qty Per Inch (tpi):
32
Thread Size:
0.190 inches
Shear Strength:
95000 single pounds per square inch
Material:
Iron alloy 660 overall
Material Specification:
Ams 5731 assn std single material response overall or ams 5737 assn std single material response overall
Surface Treatment:
Passivate overall
Surface Treatment Specification:
258,fscm 73197 mfr ref single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL4065
NSN: 5320-00-399-1132
FSC: Rivets / 5320
Product Series: HL40
Pack Weight (Approx.) 0.115 lb
Minimum Qty (MOQ): 20
Schedule B: 7318.24.0000
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL40-6-5_Military-Fasteners-com.pdf
