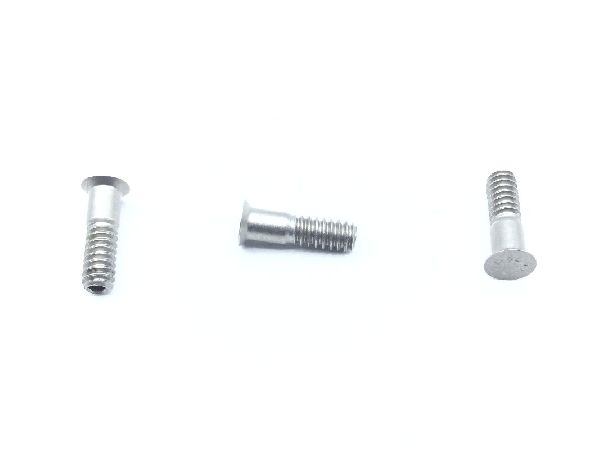

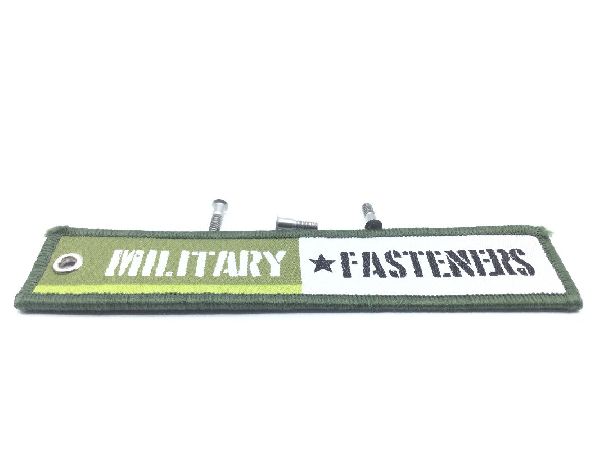

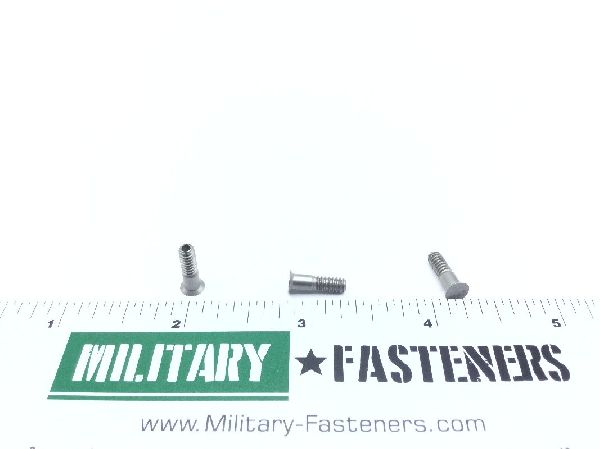

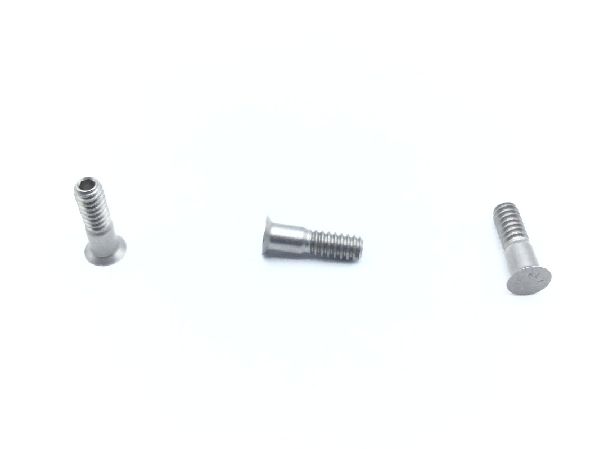

HL41-4-3

Hi-Lok™ Rivet Pin

email this to someone
Description:

Fastener Length: 31/64", Thread Size: 1/8

* Manufacturer certifications are shipped with your order FREE of charge
HL41-4-3
HL41-4-3
HL41-4-3
HL41-4-3
HL41-4-3
HL41-4-3
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

HL41-4-3 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.468 inches minimum and 0.488 inches maximum
Head Style:
Flush countersunk
Width Between Flats:
0.064 inches minimum and 0.065 inches maximum
Shank Diameter:
0.137 inches minimum and 0.138 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.217 inches minimum and 0.221 inches maximum
Grip Length:
0.183 inches minimum and 0.193 inches maximum
Thready Qty Per Inch (tpi):
32
Thread Size:
0.138 inches
Shear Strength:
95000 single pounds per square inch
Countersink Angle:
100.0 degrees nominal
Material:
Steel overall
Material Specification:
Ams 5737 assn std 1st material response overall or ams 5731 assn std 2nd material response overall
Thread Series Designator:
Unjc

Additional Information

SKU / Model: HL4143
NSN: 5320-01-161-9299
FSC: Rivets / 5320
Product Series: HL41
Pack Weight (Approx.) 0.024 lb
Minimum Qty (MOQ): 10
Schedule B: 7318.24.0000
ECCN: EAR99
National Motor Freight: 013630, Alum Rivets
Download PDF Version
HL41-4-3_Military-Fasteners-com.pdf
