HL41-6-2

Hi-Lok™ Rivet Pin

email this to someone
Description:

Fastener Length: 29/64", Thread Size: 3/16",

* Manufacturer certifications are shipped with your order FREE of charge
HL41-6-2
HL41-6-2
HL41-6-2
HL41-6-2
HL41-6-2
HL41-6-2
Add to Cart Up to qty 60 ships same day if ordered before 4pm EST
HL41-6-2 Price:
buy now
$7.35 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL41-6-2 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.440 inches minimum and 0.460 inches maximum
Head Style:
Flush countersunk
Width Between Flats:
0.079 inches minimum and 0.081 inches maximum
Shank Diameter:
0.189 inches minimum and 0.190 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.297 inches minimum and 0.302 inches maximum
Grip Length:
0.130 inches maximum
Thready Qty Per Inch (tpi):
32
Thread Size:
0.190 inches
Shear Strength:
95000 single pounds per square inch
Countersink Angle:
100.0 degrees nominal
Material:
Iron alloy 660 overall
Material Specification:
Ams 5737 assn std single material response overall or ams 5731 assn std single material response overall
Surface Treatment:
Passivate overall
Surface Treatment Specification:
258,fscm 73197 mfr ref single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL4162
NSN: 5320-00-498-7249
FSC: Rivets / 5320
Product Series: HL41-6
Pack Weight (Approx.) 0.037 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 095190, Hardware, Noi Sub 9
Download PDF Version
HL41-6-2_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

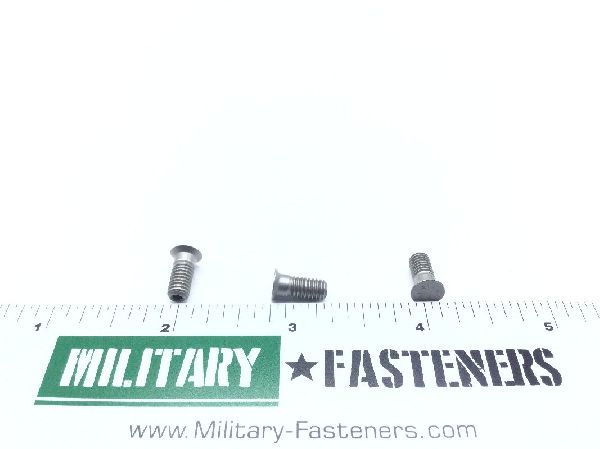

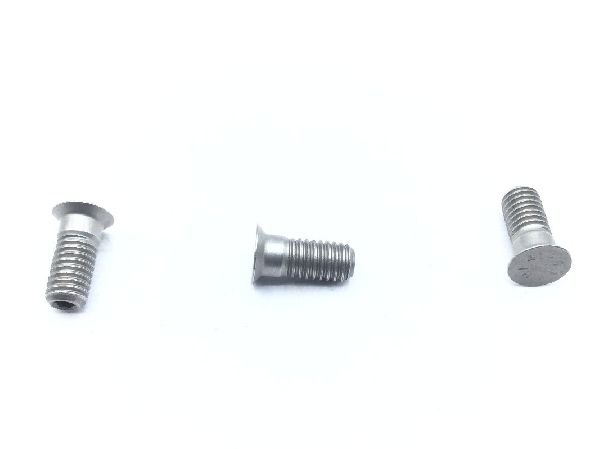

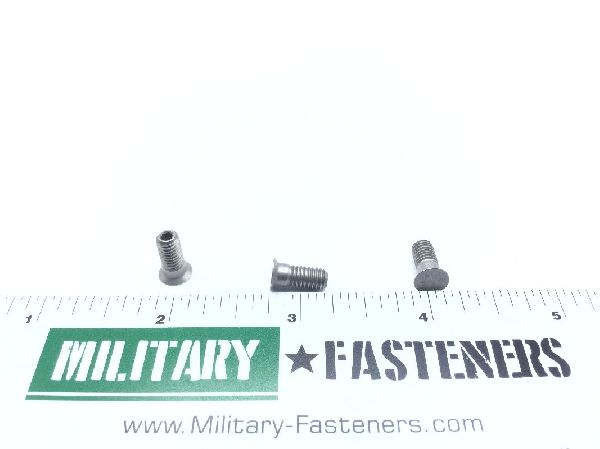

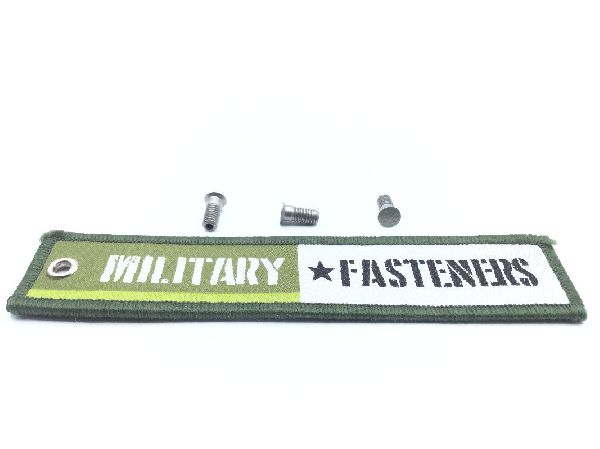

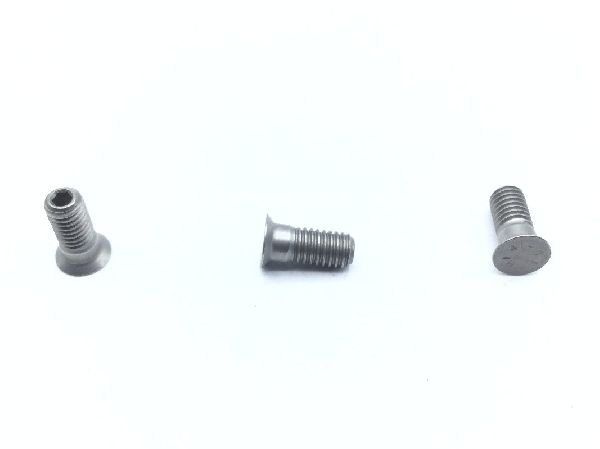

Product Image Gallery
