HL48-8-18

Hi-Lok Rivet Pin

email this to someone
Description:

Fastener Length: 1-33/64", Thread Size: 1/4",

* Manufacturer certifications are shipped with your order FREE of charge
HL48-8-18
HL48-8-18
HL48-8-18
HL48-8-18
HL48-8-18
HL48-8-18
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

HL48-8-18 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
1.510 inches minimum and 1.530 inches maximum
Head Style:
Err-090
Head Height:
0.080 inches minimum and 0.090 inches maximum
Width Between Flats:
0.122 inches minimum and 0.142 inches maximum
Shank Diameter:
0.2490 inches minimum and 0.2495 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.415 inches minimum and 0.440 inches maximum
Lubrication:
Cetyl alcohol, spec 305, hi-shear corp
Grip Length:
1.120 inches minimum and 1.130 inches maximum
Thready Qty Per Inch (tpi):
28
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.250 inches
Shear Strength:
9300 double pounds per square inch
Part Name Assigned By Controlling Agency:
Pin
Material:
Iron alloy 660 overall
Material Specification:
Ams5737 assn std single material response overall or ams5731 assn std single material response overall
Surface Treatment:
Passivate overall
Surface Treatment Specification:
Hi-shear spec. 258 mfr ref single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL48818
NSN: 5320-01-508-2089
FSC: Rivets / 5320
Product Series: HL48
Pack Weight (Approx.) 0.300 lb
Minimum Qty (MOQ): 1
Schedule B: 7508.90.5000
ECCN: 9A991
Download PDF Version
HL48-8-18_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

More HL48 pin-rivets

HL48-8-9

Fastener Length: 61/64in., Thread Size: 1/4in.

HL48-8-8

Fastener Length: 57/64", Thread Size: 1/4"

HL48-8-7

Fastener Length: 53/64", Thread Size: 1/4"

HL48-8-6

Fastener Length: 49/64in., Thread Size: 1/4in.

HL48-8-5

Fastener Length: 45/64in., Thread Size: 1/4in.

HL48-8-4

Fastener Length: 41/64in., Thread Size: 1/4in.

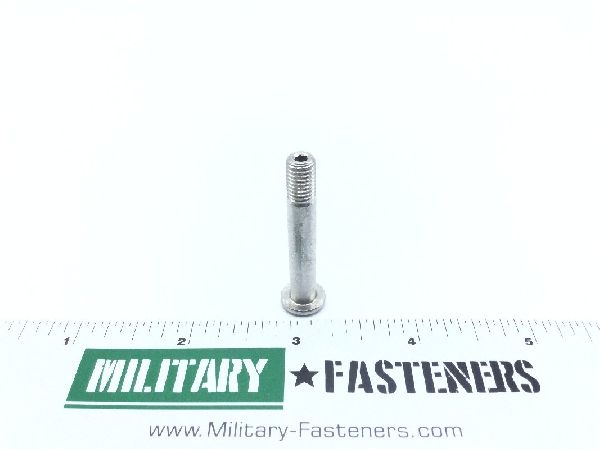

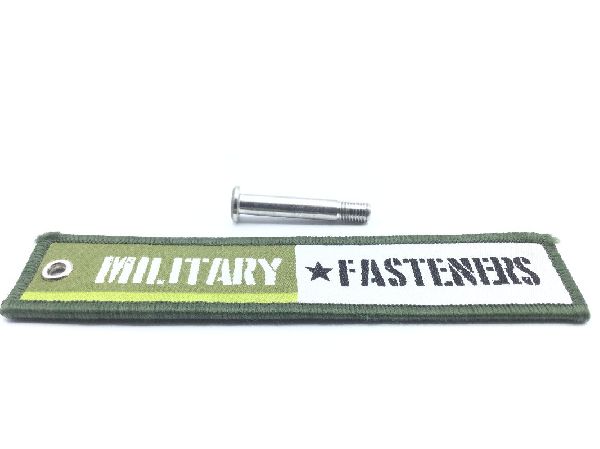

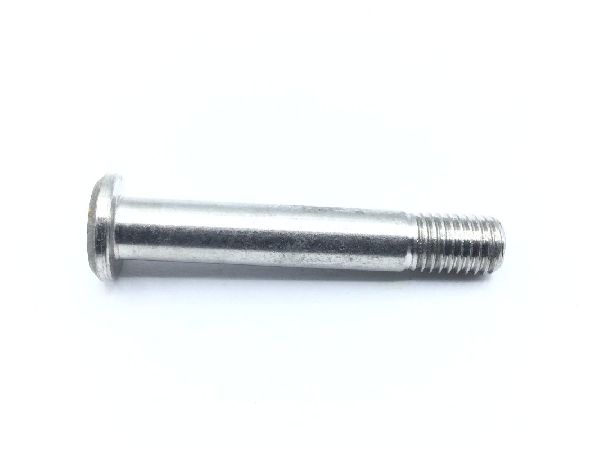

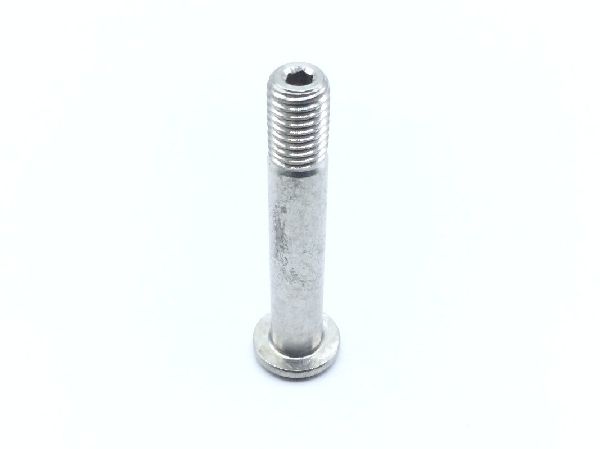

Product Image Gallery
