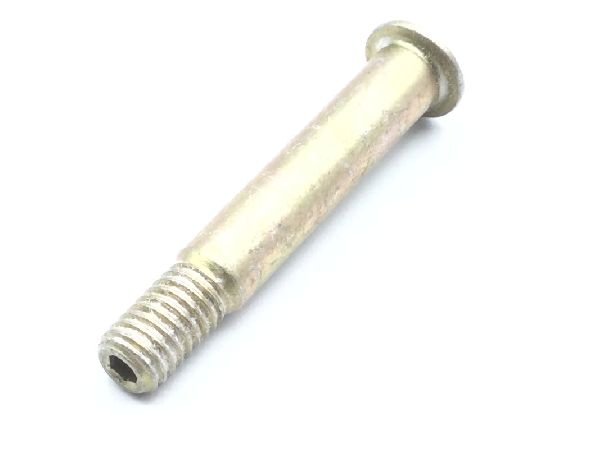

HL62PB6-14

Hi-Lok Rivet Pin

email this to someone
Description:

Diameter: 13/64", Grip Length: 7/8", protruding shear head, oversized for hl18, alloy steel cadmium plated, HL62 series rivet

* Manufacturer certifications are shipped with your order FREE of charge
HL62PB6-14
HL62PB6-14
HL62PB6-14
Add to Cart Up to qty 360 ships same day if ordered before 4pm EST
HL62PB6-14 Price:
buy now
$3.33 Each
Quantity:
Pre-packaged bag qty: 20 ea
* Sold in increments of 20
Add item to quote

HL62PB6-14 Datasheet Features and Specification

Fastener Length:
Between 1.190 inches and 1.210 inches
Grip Length:
0.880 inches
Head Height:
Between 0.045 inches and 0.055 inches
Head Major Diameter:
Between 0.295 inches and 0.315 inches
Head Style:
Err-090
Lubrication:
Hi-shear corp specification 305 cetyl alcohol
Material:
Steel comp e4340 or steel comp 4140 or steel comp 8740
Material Specification:
Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.190 inches
Shank Diameter:
Between 0.2016 inches and 0.2026 inches
Shank Style:
Threaded straight pin-rivet
Shear Strength:
95000 single pounds per square inch
Surface Treatment:
Cadmium and chromate
Surface Treatment Specification:
Cl 2 federal specification single treatment response type 2 qq-p-416
Thread Class:
3a
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
32
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Width Between Flats:
Between 0.0791 inches and 0.0806 inches
Quick Specs
Thread Qty 32
Thread Series UNJF
Thread Class 3A
Material Steel

Additional Information

SKU / Model: HL62PB614
NSN: 5320-01-254-4432
FSC: Rivets / 5320
Product Series: HL62PB
Pack Weight (Approx.) 0.222 lb
Minimum Qty (MOQ): 20
Schedule B: 7318.29.0000
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL62PB6-14_Military-Fasteners-com.pdf
