HL62PB6-23

Hi-Lok Rivet Pin

email this to someone
Description:

Pin-Rivet part number HL62PB6-23

* Manufacturer certifications are shipped with your order FREE of charge
HL62PB6-23
HL62PB6-23
HL62PB6-23
HL62PB6-23
HL62PB6-23
HL62PB6-23
Add to Cart Up to qty 200 ships same day if ordered before 4pm EST
HL62PB6-23 Price:
buy now
$1.32 Each
Quantity:
Pre-packaged bag qty: 25 ea
* Sold in increments of 25
Add item to quote

HL62PB6-23 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Shank Style:
Pin-rivet, straight, threaded
Lubrication:
Cetyl alcohol, spec 305, hi-shear corp
Grip Length:
1.567 inches maximum
Thready Qty Per Inch (tpi):
32
Min. Tensile Strength (psi):
160000 pounds per square inch
Surface Treatment:
Cadmium overall and chromate overall

Additional Information

SKU / Model: HL62PB623
NSN: 5320-01-551-3225
FSC: Rivets / 5320
Product Series: HL62PB6
Pack Weight (Approx.) 0.404 lb
Minimum Qty (MOQ): 25
Schedule B: 7318.24.0000
ECCN: 9A991
Download PDF Version
HL62PB6-23_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL62PB6 pin-rivets

HL62PB6-9

Protruding shear head, oversized for hl18, alloy steel cadmium plated

HL62PB6-8

Hi-Lok Pin protruding shear head oversized for hl18 alloy steel cadmium plated, 5320-01-057-9382

HL62PB6-7

Hi-Lok Pin protruding shear head oversized for hl18 alloy steel cadmium plated

HL62PB6-6

Protruding shear head oversized for hl18 alloy steel cadmium plated

HL62PB6-5

Hi-Lok pin protruding shear head oversized diameter 13/64 grip length 5/16

HL62PB6-4

Pin-Rivet 5320-00-457-1331, Hi-Lok Pin protruding shear head oversized for hl18 alloy steel cadmium plated

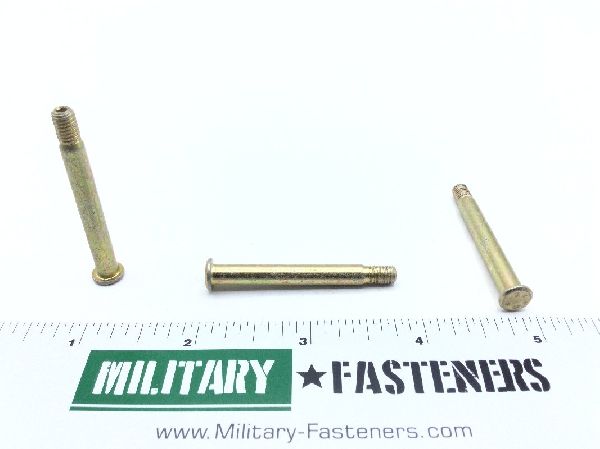

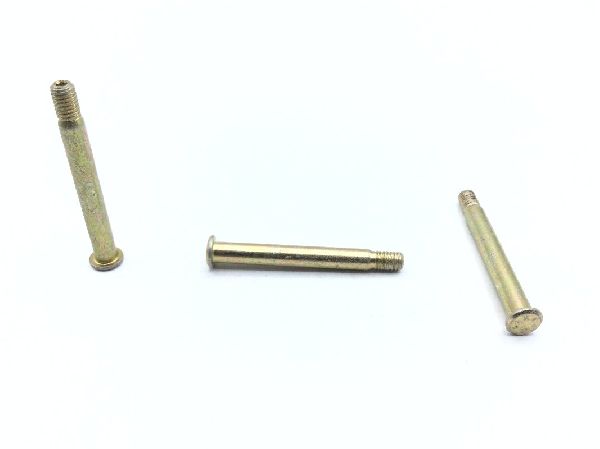

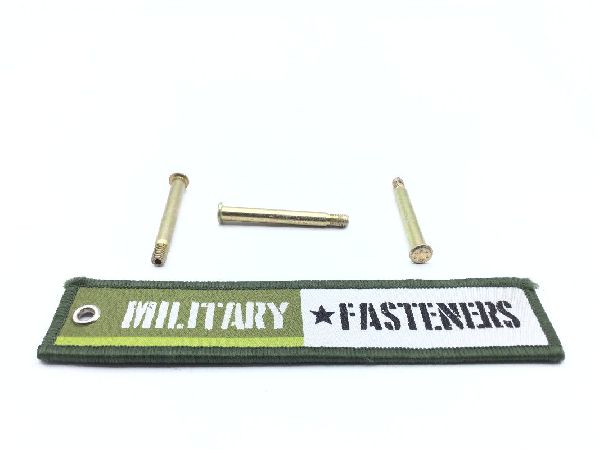

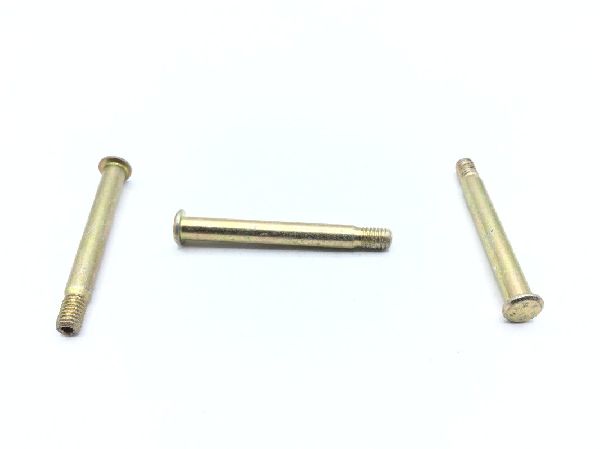

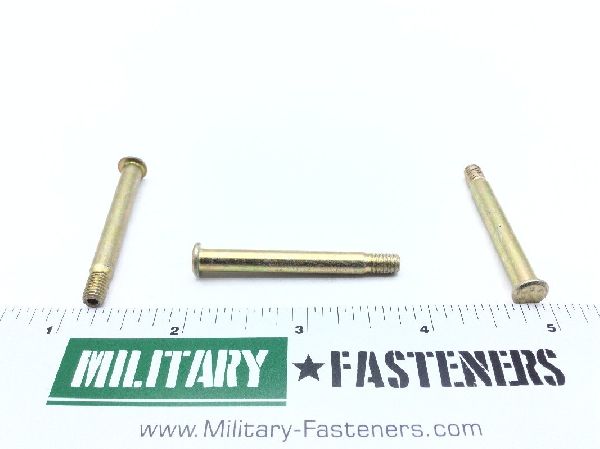

Product Image Gallery
