HL63PB6-8

Hi-Lok™ Rivet Pin

email this to someone
Description:

flush shear head, oversized for hl19, alloy steel, cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL63PB6-8
HL63PB6-8
HL63PB6-8
HL63PB6-8
Add to Cart Up to qty 180 ships same day if ordered before 4pm EST
HL63PB6-8 Price:
buy now
$2.90 Each
Quantity:
Pre-packaged bag qty: 20 ea
* Sold in increments of 20
Add item to quote

HL63PB6-8 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.815 inches minimum and 0.835 inches maximum
Head Style:
Flush countersunk
Width Between Flats:
0.0791 inches minimum and 0.0806 inches maximum
Shank Diameter:
0.2016 inches minimum and 0.2026 inches maximum
Head Major Diameter:
0.3016 inches maximum
Lubrication:
Cetyl alcohol, spec 305, hi-shear corp
Grip Length:
0.505 inches maximum
Thready Qty Per Inch (tpi):
32
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.190 inches
Shear Strength:
95000 single pounds per square inch
Countersink Angle:
100.0 degrees nominal
Material:
Steel comp e4340 overall or steel comp 4140 overall or steel comp 8740 overall
Material Specification:
Mil-s-5000 mil spec 1st material response overall or mil-s-5626 mil spec 2nd material response overall or mil-s-6049 mil spec 3rd material response overall
Surface Treatment:
Cadmium overall
Surface Treatment Specification:
Qq-p-416 type ii class 2 fed spec single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL63PB68
NSN: 5320-01-177-9794
FSC: Rivets / 5320
Product Series: HL63PB6
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 20
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL63PB6-8_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL63PB6 pin-rivets

HL63PB6-9

100°, flush shear head - oversized for hl19 - alloy steel cadmium plated

HL63PB6-7

100°, flush shear head - oversized for hl19 - alloy steel cadmium plated

HL63PB6-6

Flush shear head oversized for hl19 alloy steel cadmium plated

HL63PB6-5

flush shear head oversized for hl19 alloy steel cadmium plated

HL63PB6-4

Flush shear head oversized for hl19 alloy steel cadmium plated, 5320-00-968-9189

HL63PB6-3

$2.76 Each, flush shear head oversized for hl19 alloy steel cadmium plated

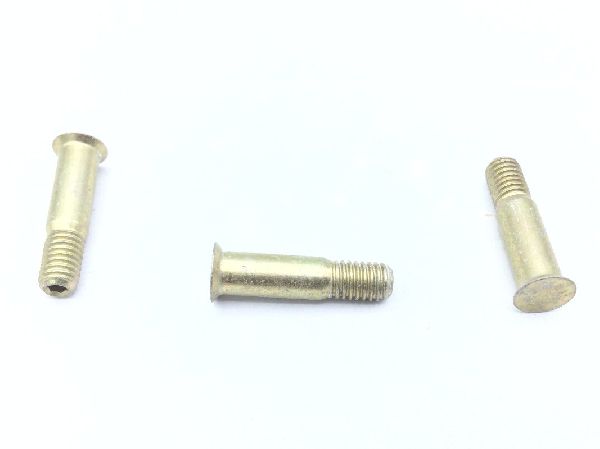

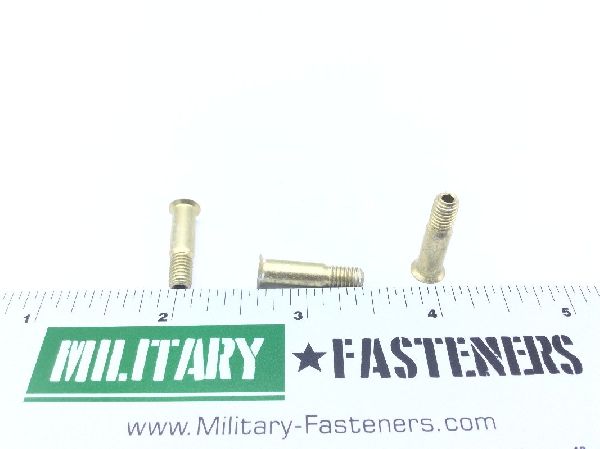

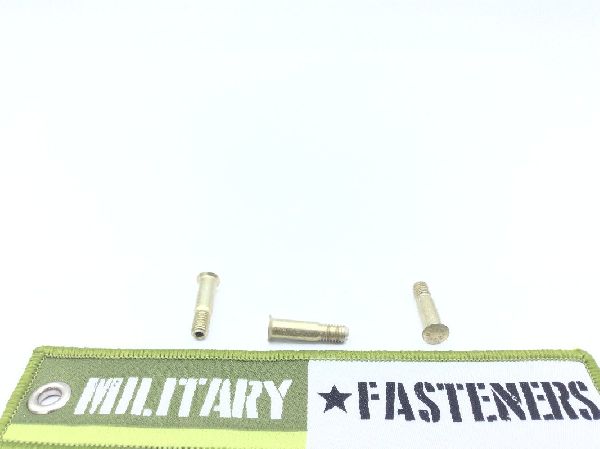

Product Image Gallery

Product code HL63PB6-8
HL63PB6-8
HL63PB6-8
HL63PB6-8
HL63PB6-8
