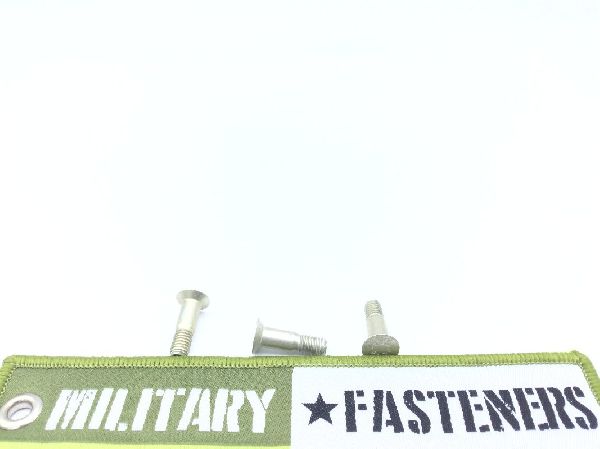

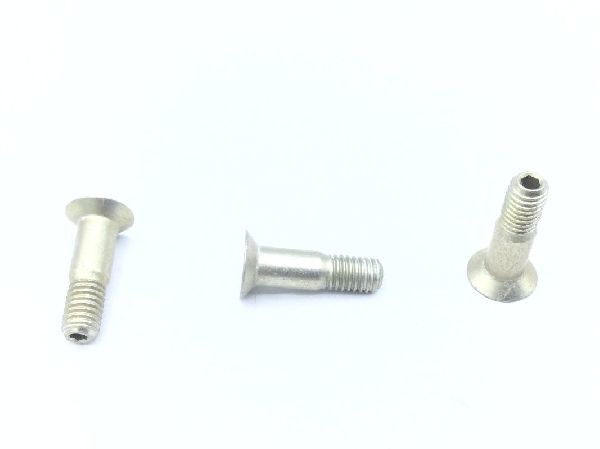

HL65PB6-6

Hi-Lok™ Rivet Pin

email this to someone
Description:

flush ms24694 tension head, oversized for hl21, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL65PB6-6
HL65PB6-6
HL65PB6-6
HL65PB6-6
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

HL65PB6-6 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.690 inches minimum and 0.710 inches maximum
Head Style:
Flush countersunk
Width Between Flats:
0.0791 inches minimum and 0.0806 inches maximum
Shank Diameter:
0.2016 inches minimum and 0.2026 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.3813 inches maximum
Lubrication:
Cetyl alcohol
Grip Length:
0.380 inches maximum
Thready Qty Per Inch (tpi):
32
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.190 inches
Shear Strength:
6130 double pounds per square inch
Countersink Angle:
100.0 degrees nominal
Material:
Steel comp e4340 overall or steel comp 4340 overall or steel comp 4140 overall or steel comp 8740 overall
Material Specification:
Mil-s-5000 mil spec 1st material response overall or mil-s-5000 mil spec 2nd material response overall or mil-s-5626 mil spec 3rd material response overall or mil-s-6049 mil spec 4th material response overall
Surface Treatment:
Cadmium overall and chromate overall
Surface Treatment Specification:
Qq-p-416,ty 2,cl 2 fed spec single treatment response overall
Thread Series Designator:
Unjf

Additional Information

Alternate Part Numbers

  • HL65PB-6-6
SKU / Model: HL65PB66
NSN: 5320-01-037-7203
FSC: Rivets / 5320
Product Series: HL65PB6
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL65PB6-6_Military-Fasteners-com.pdf
