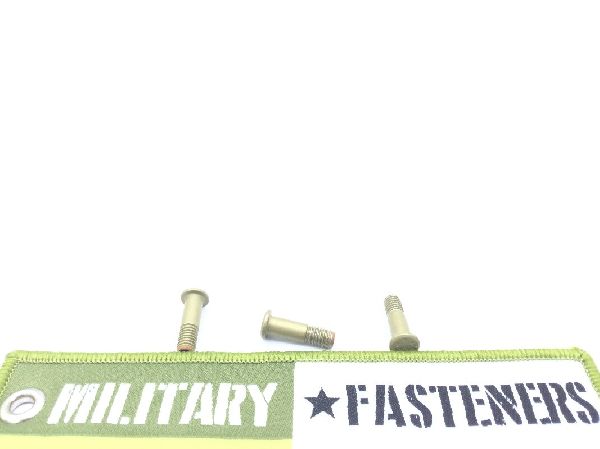

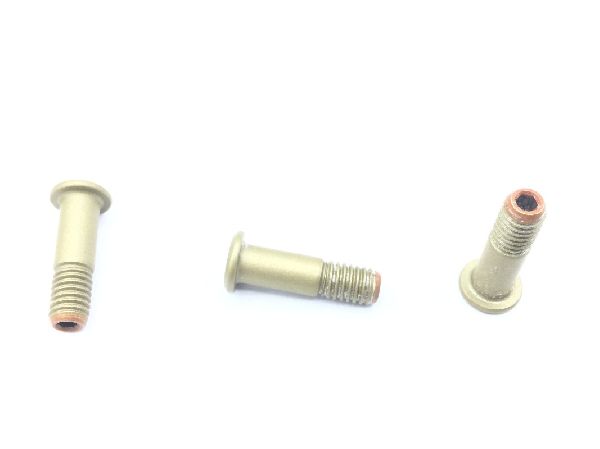

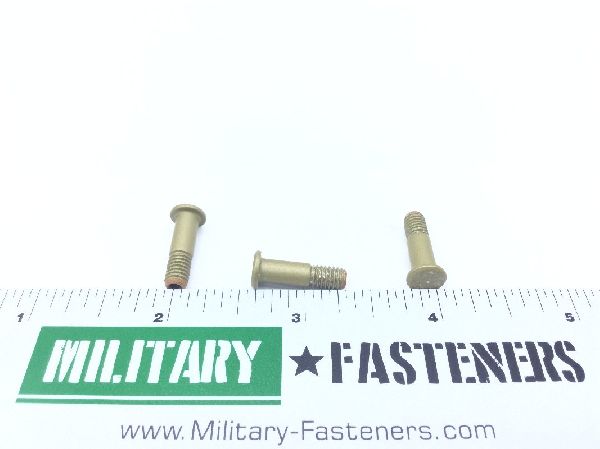

HST10AG6-6

Hi-Tigue Rivet Pin

email this to someone
Description:

Diameter: 3/16", Grip Length: 3/8", protruding shear head, titanium, aluminum coating

* Manufacturer certifications are shipped with your order FREE of charge
HST10AG6-6
HST10AG6-6
HST10AG6-6
HST10AG6-6
Add to Cart Up to qty 210 ships same day if ordered before 4pm EST
HST10AG6-6 Price:
buy now
$3.46 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HST10AG6-6 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.655 inches minimum and 0.675 inches maximum
Head Style:
Err-090
Head Height:
0.045 inches minimum and 0.055 inches maximum
Width Between Flats:
0.0791 inches minimum and 0.0806 inches maximum
Shank Diameter:
0.1885 inches minimum and 0.1895 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.295 inches minimum and 0.315 inches maximum
Lubrication:
Cetyl alcohol, spec 305, hi-shear corp
Grip Length:
0.370 inches minimum and 0.380 inches maximum
Thready Qty Per Inch (tpi):
32
Thread Size:
0.190 inches
Shear Strength:
95000 single pounds per square inch
Special Features:
Color code orange on thread end
Material:
Titanium alloy uns r56400 overall
Material Specification:
Ams 4928 assn std single material response overall or ams 4967 assn std single material response overall
Surface Treatment:
Aluminum overall
Surface Treatment Specification:
Hi kote 1,cagec 73197 mfr ref single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HST10AG66
NSN: 5320-01-337-7101
FSC: Rivets / 5320
Product Series: HST10AG6
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 096320, Rivets I / S Nickel Plated Buffed
Download PDF Version
HST10AG6-6_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!
