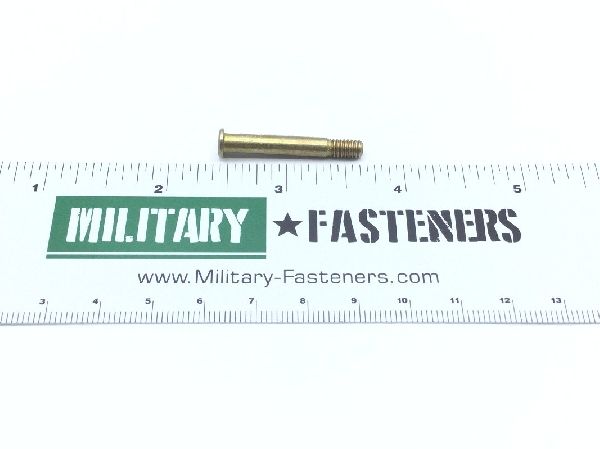

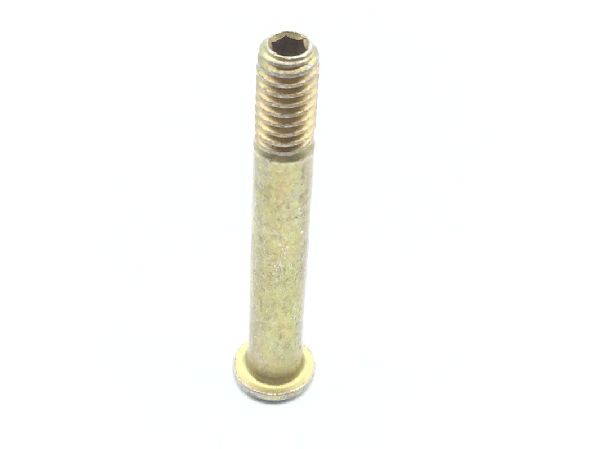

HL18PB5-14

Hi-Lok Rivet Pin

email this to someone
Description:

protruding shear head, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL18PB5-14
HL18PB5-14
HL18PB5-14
HL18PB5-14
HL18PB5-14
HL18PB5-14
Add to Cart Up to qty 140 ships same day if ordered before 4pm EST
HL18PB5-14 Price:
buy now
$2.24 Each
Quantity:
Pre-packaged bag qty: 20 ea
* Sold in increments of 20
Add item to quote

HL18PB5-14 Datasheet Features and Specification

Fastener Length:
Between 1.177 inches and 1.197 inches
Grip Length:
0.880 inches
Head Height:
Between 0.037 inches and 0.047 inches
Head Major Diameter:
Between 0.242 inches and 0.262 inches
Head Style:
Err-090
Identification Code Color:
Bronze
Lubrication:
Cetyl alcohol
Material:
Steel comp e4340 or steel comp 4340 or steel comp 4140 or steel comp 8740
Material Specification:
Mil-s-5000 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-5626 military specification 3rd material response or mil-s-6049 military specification 4th material response
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.164 inches
Shank Diameter:
Between 0.1625 inches and 0.1635 inches
Shank Style:
Threaded straight pin-rivet
Shear Strength:
95000 single pounds per square inch
Special Features:
Color bronze
Surface Treatment:
Cadmium and chromate
Surface Treatment Specification:
Class 2 federal specification single treatment response type 2 qq-p-416
Thread Class:
3a
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
32
Thread Series Designator:
Unjc
Width Between Flats:
Between 0.0791 inches and 0.0801 inches
Quick Specs
Thread Qty 32
Thread Class 3A
Material Steel

Additional Information

SKU / Model: HL18PB514
NSN: 5320-00-244-3899
FSC: Rivets / 5320
Product Series: HL18PB5
Pack Weight (Approx.) 0.146 lb
Minimum Qty (MOQ): 20
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL18PB5-14_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL18PB5 pin-rivets

HL18PB5-9

$1.62 Each, Protruding shear head alloy steel cadmium plated pin

HL18PB5-8

Protruding shear head alloy steel cadmium plated

HL18PB5-7

Hi-Lok protruding shear head alloy steel cadmium plated diameter 5/32 grip length 7/16

HL18PB5-6

Protruding shear head alloy steel cadmium plated diameter 5/32 grip length 3/8

HL18PB5-5

Protruding shear head alloy steel cadmium plated

HL18PB5-4

Protruding shear head rivet alloy steel cadmium plated Diameter: 5/32 Grip Length: 1/4
