HL19PB5-13

Hi-Lok Rivet Pin

email this to someone
Description:

Diameter: 5/32", Grip Length: 13/16", flush shear head, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL19PB5-13
HL19PB5-13
HL19PB5-13
Add to Cart Up to qty 75 ships same day if ordered before 4pm EST
HL19PB5-13 Price:
buy now
$1.87 Each
Quantity:
Pre-packaged bag qty: 25 ea
* Sold in increments of 25
Add item to quote

HL19PB5-13 Datasheet Features and Specification

Thread Size:
0.164 inches
Width Between Flats:
Between 0.0791 inches and 0.0801 inches
Thread Series Designator:
Unjc
Thread Qty Per Inch (tpi):
32
Thread Direction:
Right-hand
Thread Class:
3a
Shank Diameter:
Between 0.1625 inches and 0.1635 inches
Shank Style:
Threaded straight
Shear Strength:
95000 single pounds per square inch
Special Features:
Color bronze
Surface Treatment:
Cadmium and chromate
Surface Treatment Specification:
Class 2 federal specification single treatment response type 2 qq-p-416
Min. Tensile Strength (psi):
160000 pounds per square inch
Material Specification:
Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Material:
Steel comp e4340 or steel comp 4140 or steel comp 8740
Lubrication:
Hi-shear corp specification 305 cetyl alcohol
Head Style:
Flush countersunk
Head Major Diameter:
0.2612 inches
Grip Length:
Between 0.807 inches and 0.817 inches
Fastener Length:
Between 1.114 inches and 1.134 inches
Countersink Angle:
100.0 degrees
Quick Specs
Thread Qty 32
Thread Class 3A
Material Steel

Additional Information

SKU / Model: HL19PB513
NSN: 5320-01-125-0954
FSC: Rivets / 5320
Product Series: HL19PB5
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 25
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL19PB5-13_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL19PB5 pin-rivets

HL19PB5-9

flush shear head alloy steel cadmium plated Diameter 5/32 Grip Length 9/16

HL19PB5-8

$1.80 Each, flush shear head alloy steel cadmium plated pin

HL19PB5-7

Flush shear head pin alloy steel cadmium plated , 5320-00-959-0192

HL19PB5-6

Flush shear head pin alloy steel cadmium plated

HL19PB5-5

Pin-Rivet Flush shear head pin alloy steel cadmium plated Diameter: 5/32 Grip Length: 5/16, 5320-00-959-0185

HL19PB5-4

Flush shear head pin alloy steel cadmium plated, 5320-00-959-0152

Product Image Gallery

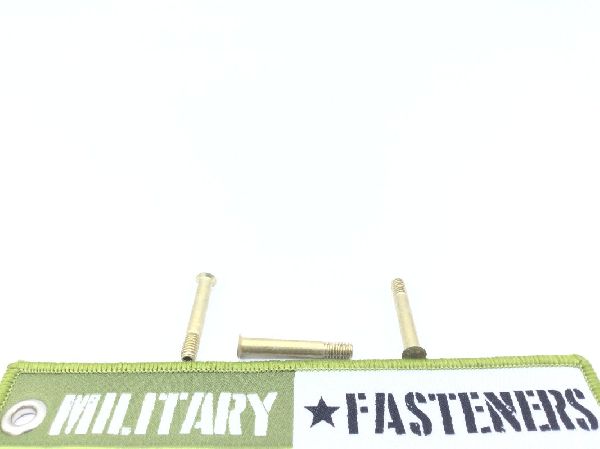

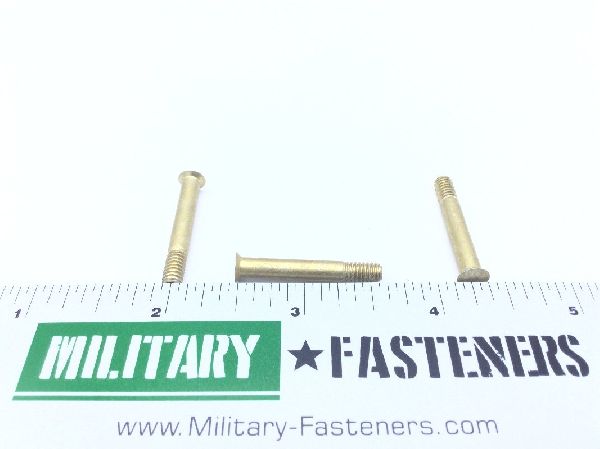

Product code HL19PB5-13
