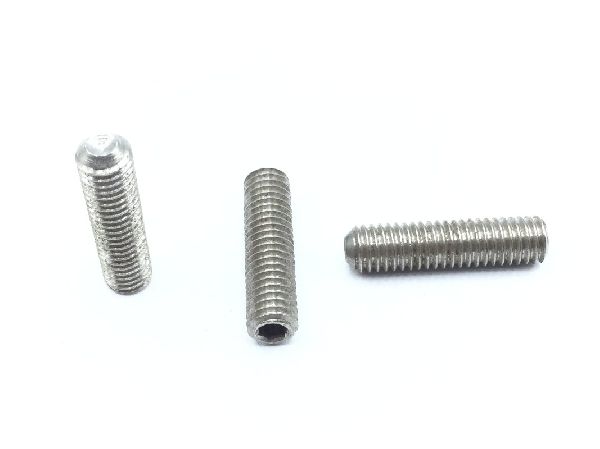

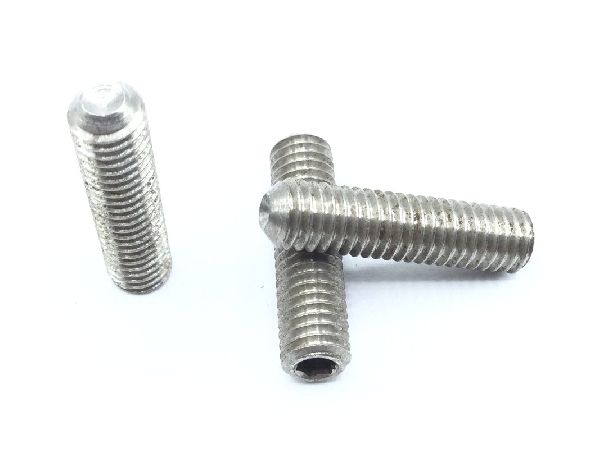

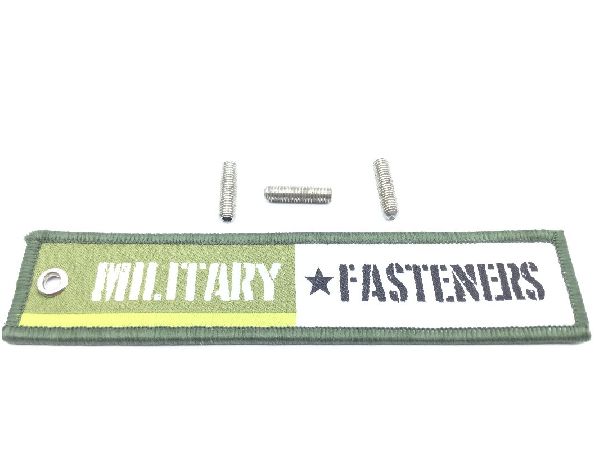

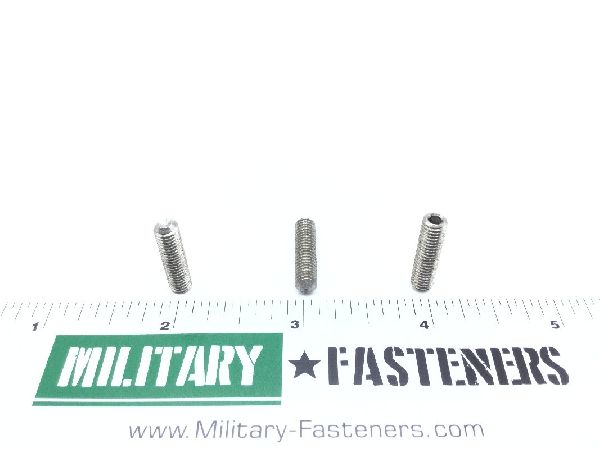

AN565DC1032H12

Aeronautical Standard Setscrew

email this to someone
Description:

Fastener Length: 3/4", Thread: 10-32, Head Width: 3/32", Thread Length: 3/4

* Manufacturer certifications are shipped with your order FREE of charge
AN565DC1032H12
AN565DC1032H12
AN565DC1032H12
AN565DC1032H12
AN565DC1032H12
AN565DC1032H12
Add to Cart Up to qty 100 ships same day if ordered before 4pm EST
AN565DC1032H12 Price:
buy now
$1.94 Each
Quantity:
Pre-packaged bag qty: 25 ea
* Sold in increments of 25
Add item to quote

AN565DC1032H12 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
0.739 inches minimum and 0.761 inches maximum
Fastener Length:
0.739 inches minimum and 0.761 inches maximum
Head Style:
Headless (setscrew)
Point Style:
Cup
Internal Drive Style:
Hexagon
Thread Diameter:
0.190 inches
Width Across Flats:
0.0937 inches minimum and 0.0947 inches maximum
Thready Qty Per Inch (tpi):
32
Hardness Rating:
45.0 rockwell c minimum overall and 53.0 rockwell c maximum overall
Material:
Steel comp 303 overall or steel comp 303se overall
Material Specification:
Astma582 assn std all material responses overall
Surface Treatment:
Passivate overall
Thread Series Designator:
Unf
Quick Specs
Thread Size 10
Thread Qty 32
Material Steel
Length 3/4

Additional Information

SKU / Model: AN565DC1032H12
NSN: 5305-00-247-0521
FSC: Screws / 5305
Product Series: AN565DC1032H
Pack Weight (Approx.) 0.113 lb
Minimum Qty (MOQ): 25
Schedule B: 7318.15.6080
ECCN: EAR99
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
AN565DC1032H12_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More AN565DC1032H setscrews

AN565DC1032H9

Fastener Length: 9/16", Thread: 10-32, Head Width: 3/32"

AN565DC1032H5

Fastener Length: 5/16 Thread: 10-32 Head Width: 3/32

AN565DC1032H3

Fastener Length: 3/16 Thread: 10-32 Head Width: 3/32 Thread Length: 3/16

AN565DC1032H20

Fastener Length: 1-17/64in., Thread: 10-32, Head Width: 3/32in., Thread Length: 1-17/64in.

AN565DC1032H10

Fastener Length: 5/8", Thread: 10-32, Head Width: 3/32"
