AN565DC428H14

Aeronautical Standard Setscrew

email this to someone
Description:

Fastener Length: 1/4", Thread: 1/4-28, Head Width: 1/8", Thread Length: 1/4", AN565 series screw

* Manufacturer certifications are shipped with your order FREE of charge
AN565DC428H14
AN565DC428H14
AN565DC428H14
AN565DC428H14
AN565DC428H14
AN565DC428H14
AN565DC428H14
AN565DC428H14
AN565DC428H14
Notice: AN565DC428H14 is currently unavailable for immediate purchase. Click the button below to add this item to the request a quote form and receive an official pricing and availability quote by email.

Add to Quote

AN565DC428H14 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
0.250 inches minimum
Fastener Length:
0.250 inches nominal
Head Style:
Headless (setscrew)
Point Style:
Cup
Internal Drive Style:
Hexagon
Thread Diameter:
0.250 inches
Width Across Flats:
0.125 inches nominal
Thready Qty Per Inch (tpi):
28
Hardness Rating:
45.0 rockwell c minimum overall and 53.0 rockwell c maximum overall
Material:
Steel comp 303 overall
Material Specification:
Qq-s-764 fed spec single material response overall
Surface Treatment:
Passivate overall
Thread Series Designator:
Unf
Quick Specs
Thread Size 1/4
Thread Qty 28
Material Steel
Length 1/4

Additional Information

SKU / Model: AN565DC428H14
NSN: 5305-00-206-4846
FSC: Screws / 5305
Product Series: AN565DC428H
Pack Weight (Approx.) 0.049 lb
Minimum Qty (MOQ): 5
Schedule B: 7318.15.6080
ECCN: EAR99
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
AN565DC428H14_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

More AN565DC428H setscrews

AN565DC428H8

$3.90 EA, Fastener Length: 1/2in., Thread: 1/4-28, Head Width: 1/8in., Thread Length: 1/2in.

AN565DC428H4

Fastener Length: 1/4", Thread: 1/4-28, Head Width: 1/8", Thread Length: 1/4"

AN565DC428H20

Fastener Length: 1-17/64", Thread: 1/4-28, Head Width: 1/8", Thread Length: 1-17/64"

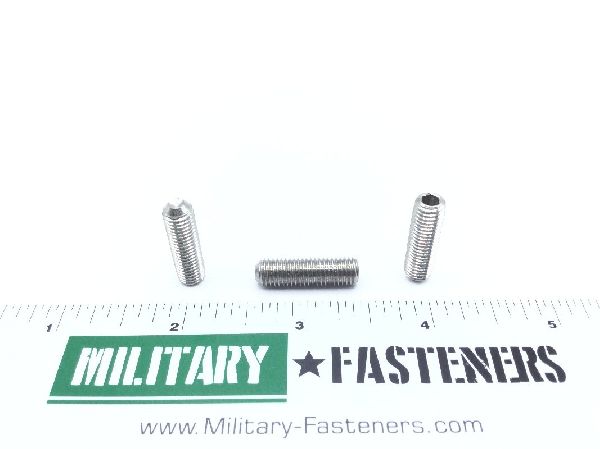

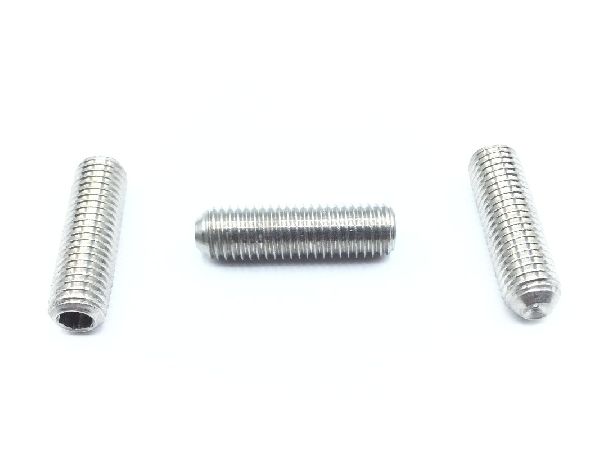

Product Image Gallery
