AN565F428H14

Aeronautical Standard Setscrew

email this to someone

Description:

Fastener Length: 7/8", Thread: 1/4-28, Head Width: 1/8", Thread Length: 7/8", AN565 series screw

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 960 ships same day if ordered before 4pm EST

AN565F428H14 Price:	buy now $1.85 Each

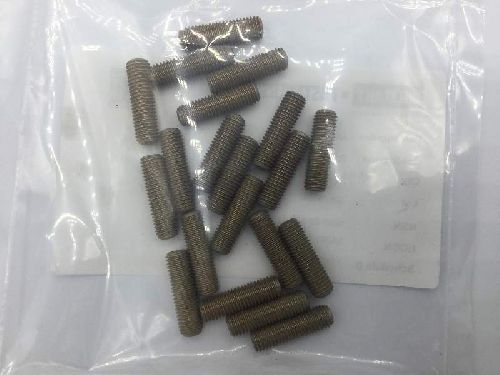

Quantity: Pre-packaged bag qty: 20 ea
* Sold in increments of 20

Add item to quote

AN565F428H14 Datasheet Features and Specification

Thread Class:

Thread Direction:

Right-hand

Thread Length:

0.875 inches maximum

Fastener Length:

0.875 inches nominal

Head Style:

Headless (setscrew)

Point Style:

Oval

Internal Drive Style:

Hexagon

Thread Diameter:

0.250 inches

Width Across Flats:

0.125 inches minimum and 0.127 inches maximum

Thready Qty Per Inch (tpi):

Hardness Rating:

45.0 rockwell c minimum overall and 53.0 rockwell c maximum overall

Material:

Steel comp 4037 overall or steel comp 4137 overall or steel comp 4140 overall or steel comp 8630 overall or steel comp 8740 overall

Material Specification:

66 fed std all material responses overall

Surface Treatment:

Cadmium overall and chromate overall

Surface Treatment Specification:

Qq-p-416,ty 2,cl 3 fed spec single treatment response overall

Thread Series Designator:

Unf

Quick Specs

Thread Size	1/4
Thread Qty	28
Material	Steel
Length	7/8

Additional Information

SKU / Model:	AN565F428H14
NSN:	5305-00-576-1197
FSC:	Screws / 5305
Product Series:	AN565F
Pack Weight (Approx.)	0.181 lb
Minimum Qty (MOQ):	20
Schedule B:	7318.15.6080
ECCN:	9A991
National Motor Freight:	093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version AN565F428H14_Military-Fasteners-com.pdf

* report an issue on this page

More AN565F setscrews

AN565FC8H4

Fastener Length: 1/4in., Thread: 8-32, Head Width: 5/64in., Thread Length: 1/4in.

AN565FC8H10

Fastener Length: 5/8", Thread: 8-32, Head Width: 5/64", Thread Length: 5/8"

AN565FC6H10

Fastener Length: 5/8", Thread: 6-32, Head Width: 1/16", Thread Length: 5/8"

AN565FC624H20

Fastener Length: 1-17/64", Thread: 3/8-24, Head Width: 3/16", Thread Length: 1-17/64"

AN565FC624H16

$43.14 EA, Fastener Length: 63/64in., Thread: 3/8-24, Head Width: 3/16in., Thread Length: 63/64in.

AN565FC4H6

Fastener Length: 3/8in., Thread: 4-40, Head Width: 3/64in., Thread Length: 3/8in.

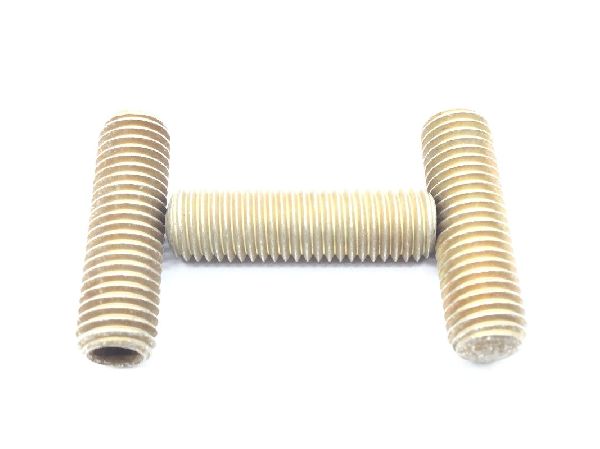

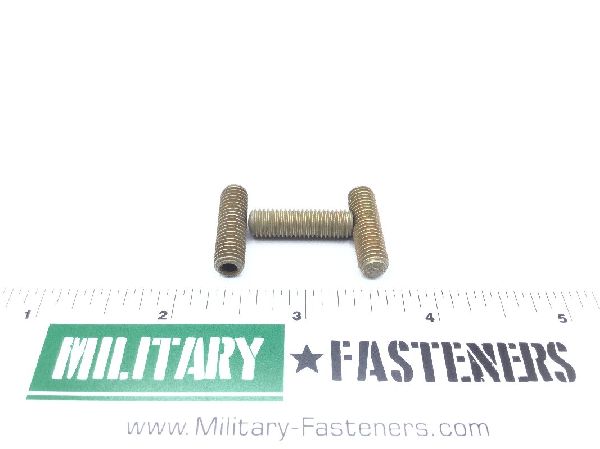

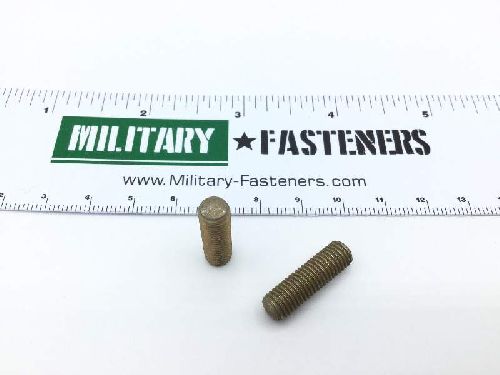

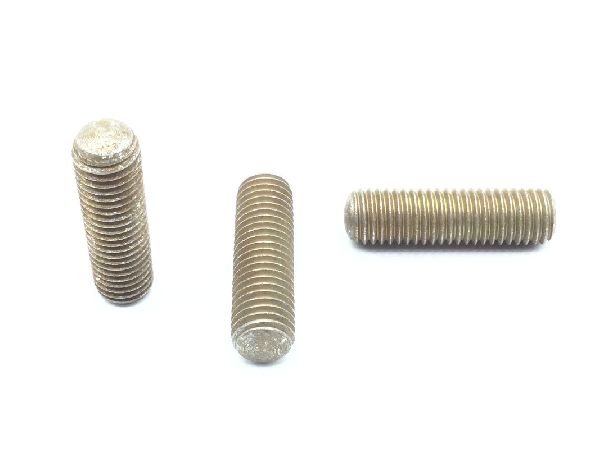

Product Image Gallery
