MS51021-112

Military Standard Setscrew

email this to someone
Description:

Fastener Length: 3/16", Thread: 6-32, Head Width: ", Thread Length: 3/16

* Manufacturer certifications are shipped with your order FREE of charge
MS51021-112
MS51021-112
MS51021-112
MS51021-112
MS51021-112
MS51021-112
Add to Cart Up to qty 40 ships same day if ordered before 4pm EST
MS51021-112 Price:
buy now
$8.58 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

MS51021-112 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
0.178 inches minimum and 0.198 inches maximum
Fastener Length:
0.178 inches minimum and 0.198 inches maximum
Head Style:
Headless (setscrew)
Locking Feature:
Patch threads or pellet threads or strip threads
Point Style:
Cup
Internal Drive Style:
Hexagon
Thread Diameter:
0.138 inches
Width Across Flats:
0.062 inches nominal
Thready Qty Per Inch (tpi):
32
Material:
Steel comp 301 overall or steel comp 302 overall or steel comp 302b overall or steel comp 303 overall or steel comp 303se overall or steel comp 304 overall or steel comp 304l overall or steel comp 305 overall or steel comp 308 overall or steel comp 309 overall or steel comp 309s overall or steel comp 310 overall or steel comp 310s overall or steel comp 314 overall or steel comp 316 overall or steel comp 316l overall or steel comp 317 overall or steel comp 321 overall or steel comp 347 overall or steel comp 348 overall or steel comp 384 overall or steel comp 385 overall
Surface Treatment:
Passivate overall
Surface Treatment Specification:
Qq-p-35 fed spec single treatment response overall
Thread Series Designator:
Unc
Nondefinitive Specification/std Data:
1 type and 4 style
Quick Specs
Thread Size 6
Thread Qty 32
Material Steel
Length 3/16

Additional Information

SKU / Model: MS51021112
NSN: 5305-01-007-1517
FSC: Screws / 5305
Product Series: MS51021
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 5
Schedule B: 7318.15.6080
ECCN: EAR99
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
MS51021-112_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More MS51021 setscrews

MS51021-9

5305-00-045-1684 Setscrew

MS51021-58

Fastener Length: 3/8in., Thread: 1/4-20, Head Width: 1/8in., Thread Length: 3/8in.

MS51021-47

Fastener Length: 1/2", Thread: 10-24, Head Width: 3/32", Thread Length: 1/2"

MS51021-32

$1.14 EA, Fastener Length: 1/4in., Thread: 8-32, Head Width: 1/16in., Thread Length: 1/4in.

MS51021-31

Fastener Length: 3/16 Thread: 8-32 Head Width: 1/16, Thread Length: 3/16

MS51021-3

Fastener Length: 1/4in., Thread: 2-56, Head Width: 1/32in., Thread Length: 1/4in.

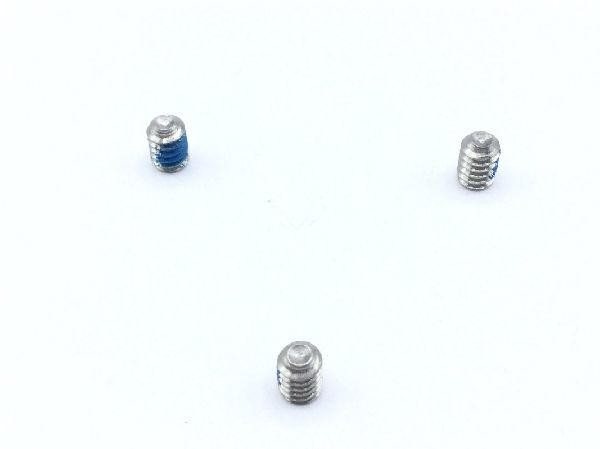

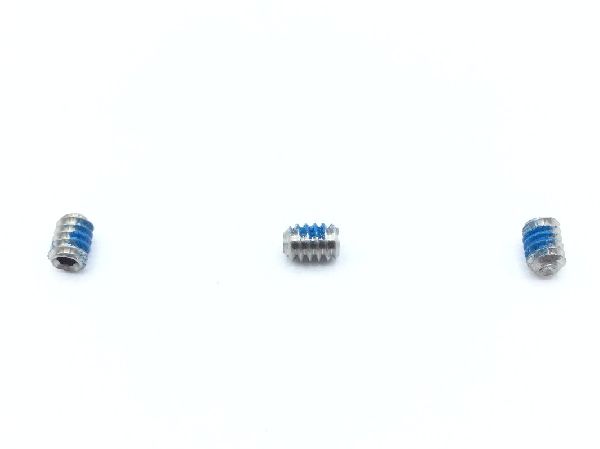

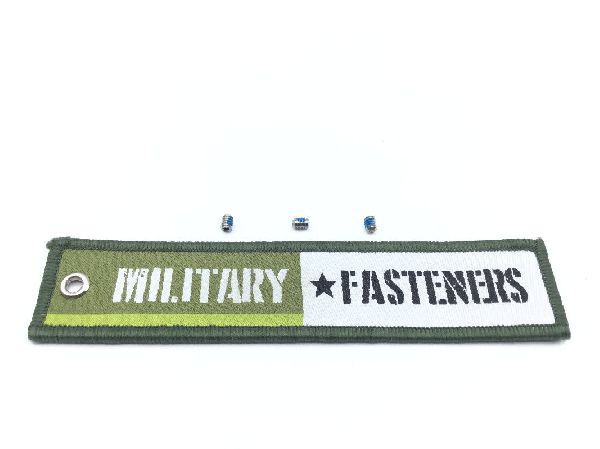

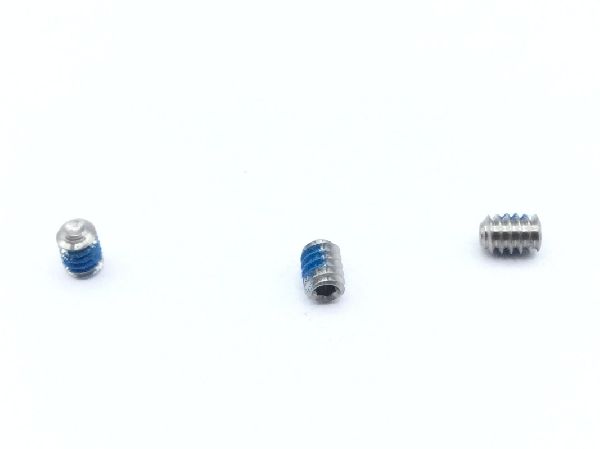

Product Image Gallery
