MS51964-121

Military Standard Setscrew

email this to someone

Description:

MS51964-121 Setscrew

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 110 ships same day if ordered before 4pm EST

MS51964-121 Price:	buy now $10.39 Each
Quantity: Pre-packaged bag qty: 10 ea
* Sold in increments of 10

Add item to quote

MS51964-121 Datasheet Features and Specification

Thread Class:

Thread Direction:

Right-hand

Thread Length:

0.178 inches minimum and 0.198 inches maximum

Fastener Length:

0.178 inches minimum and 0.198 inches maximum

Head Style:

Headless (setscrew)

Locking Feature:

Patch threads or pellet threads or strip threads

Point Style:

Cup

Internal Drive Style:

Hexagon

Thread Diameter:

0.190 inches

Width Across Flats:

0.094 inches nominal

Thready Qty Per Inch (tpi):

Hardness Rating:

45.0 rockwell c minimum overall and 53.0 rockwell c maximum overall

Material:

Steel comp 4037 overall or steel comp 4137 overall or steel comp 4140 overall or steel comp 8630 overall or steel comp 8740 overall

Material Specification:

66 fed std all material responses overall

Surface Treatment:

Cadmium overall and chromate overall

Surface Treatment Specification:

Qq-p-416,ty 2,cl 3 fed spec single treatment response overall

Thread Series Designator:

Unf

Nondefinitive Specification/std Data:

1 type and 4 style

Additional Information

SKU / Model:	MS51964121
NSN:	5305-01-025-9979
FSC:	Screws / 5305
Product Series:	MS51964
Pack Weight (Approx.)	0.000 lb
Minimum Qty (MOQ):	10
ECCN:	EAR99
National Motor Freight:	093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version MS51964-121_Military-Fasteners-com.pdf

* report an issue on this page

More MS51964 setscrews

MS51964-49

$4.32 EA, Fastener Length: 1/4in., Thread: 10-32, Head Width: 3/32in., Thread Length: 1/4in.

MS51964-48

$1.86 EA, Fastener Length: 3/16in., Thread: 10-32, Head Width: 3/32in., Thread Length: 3/16in.

MS51964-129

Fastener Length: 47/64", Thread: 10-32, Head Width: 3/32", Thread Length: 47/64"

MS51964-123

$14.40 EA, MS51964-123

MS51964-122

$3.60 EA, Fastener Length: 1/4in., Thread: 10-32, Head Width: 3/32in., Thread Length: 1/4in.

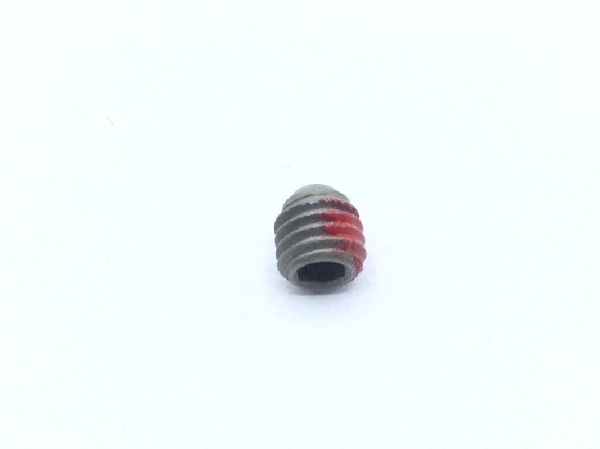

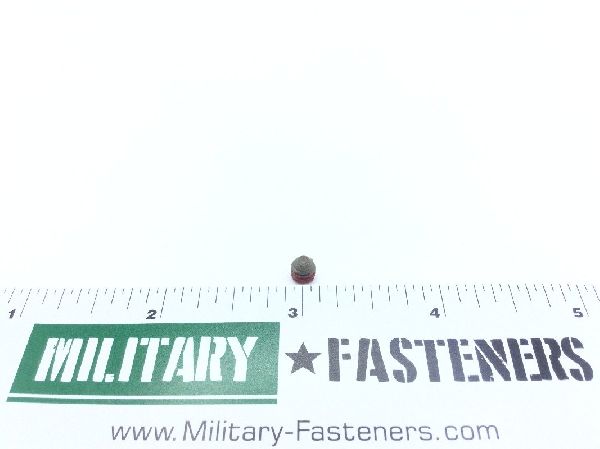

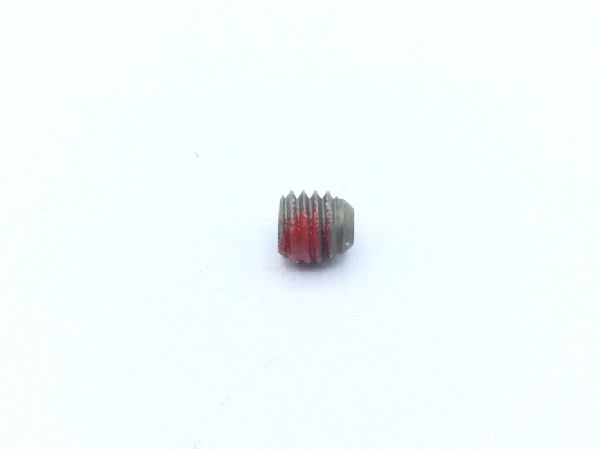

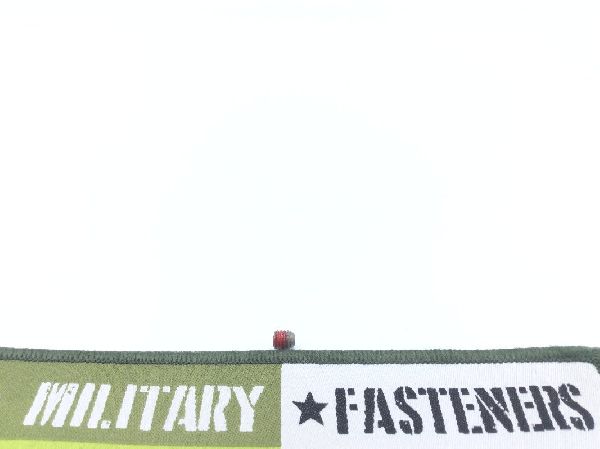

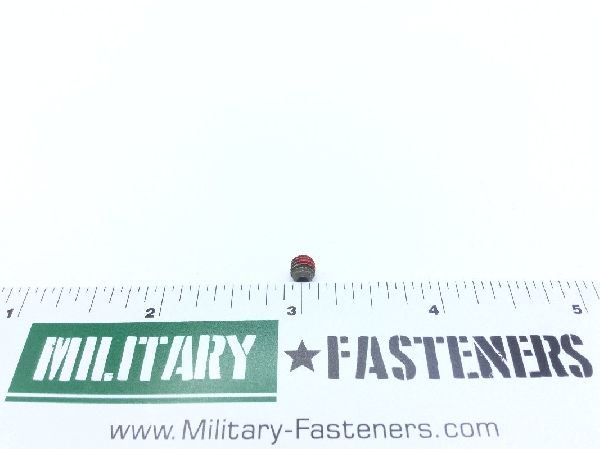

Product Image Gallery
