NAS1081-08A5

Setscrew

email this to someone
Description:

Fastener Length: 5/16", Thread: 8-32, Head Width: 5/64", Thread Length: 5/16

* Manufacturer certifications are shipped with your order FREE of charge
NAS1081-08A5
NAS1081-08A5
NAS1081-08A5
NAS1081-08A5
NAS1081-08A5
NAS1081-08A5
Add to Cart Up to qty 60 ships same day if ordered before 4pm EST
NAS1081-08A5 Price:
buy now
$4.08 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

NAS1081-08A5 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
0.302 inches minimum and 0.322 inches maximum
Fastener Length:
0.302 inches minimum and 0.322 inches maximum
Head Style:
Headless (setscrew)
Locking Feature:
Pellet threads or strip threads
Point Style:
Flat
Internal Drive Style:
Hexagon
Thread Diameter:
0.164 inches
Width Across Flats:
0.078 inches minimum and 0.079 inches maximum
Thready Qty Per Inch (tpi):
32
Hardness Rating:
45.0 rockwell c minimum overall and 53.0 rockwell c maximum overall
Material:
Steel comp 4037 overall or steel comp 4137 overall or steel comp 8630 overall or steel comp 8740 overall
Surface Treatment:
Cadmium overall and chromate overall
Surface Treatment Specification:
Qq-p-416 ty 2 cl 3 fed spec single treatment response overall
Thread Series Designator:
Unc

Additional Information

SKU / Model: NAS108108A5
NSN: 5305-00-150-3451
FSC: Screws / 5305
Product Series: NAS1081
Pack Weight (Approx.) 0.018 lb
Minimum Qty (MOQ): 10
Schedule B: 7318.15.6080
ECCN: EAR99
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
NAS1081-08A5_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More NAS1081 setscrews

NAS1081C3A5L

Fastener Length: 1/4in.Thread: 10-32, Head Width: 3/32in., Thread Length: 1/4in.

NAS1081C3A4L

$10.74 EA, Fastener Length: 1/4in., Thread: 10-32, Head Width: 3/32in., Thread Length: 1/4in.

NAS1081C3A16L

Screw Length: 1-in., Thread: 10-32, Head Width: 3/32in., Thread Length: 1-in.

NAS1081C3A10

Headless, hexagon

NAS1081C08A4L

Fastener Length: 1/4in., Thread: 8-32, Head Width: 5/64in., Thread Length: 1/4in.

NAS1081C08A4

Fastener Length: 1/4in., Thread: 8-32, Head Width: 5/64in., Thread Length: 1/4in., 5305-00-227-7580

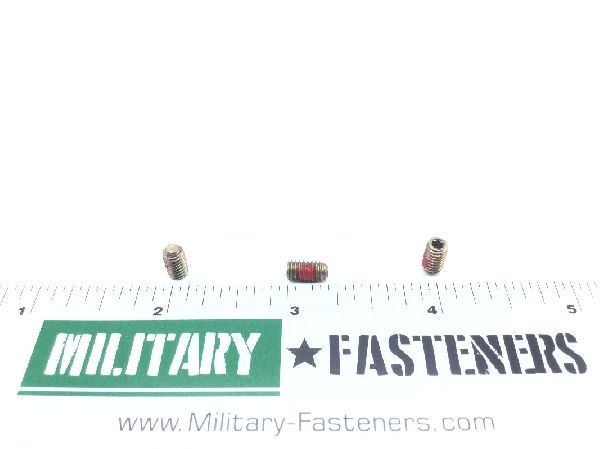

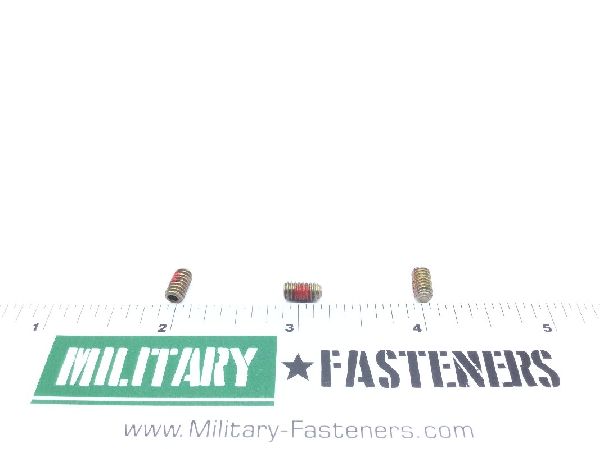

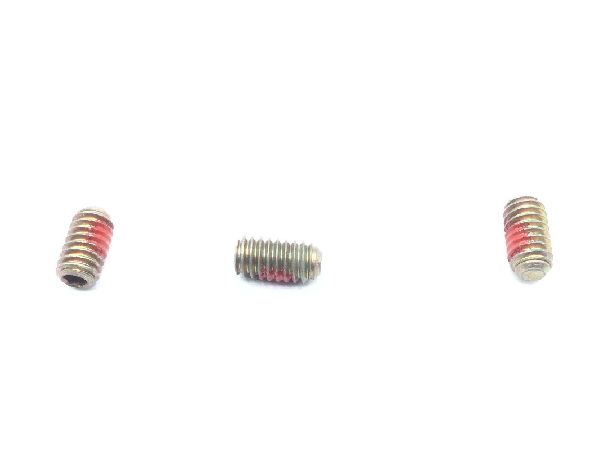

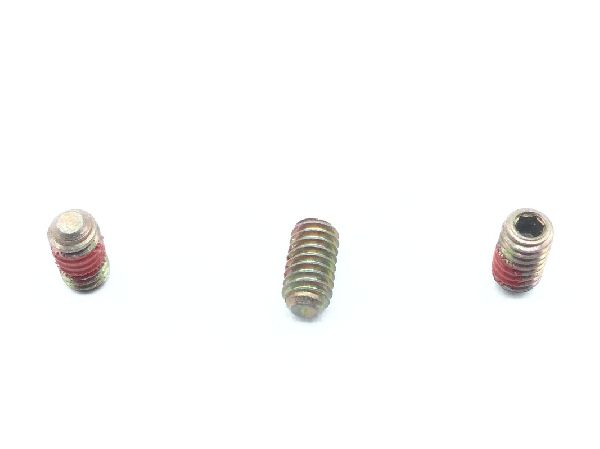

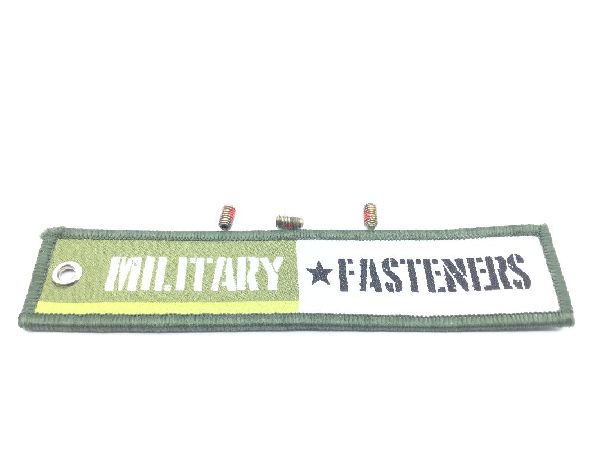

Product Image Gallery
