AN565FC1032H20

Aeronautical Standard Setscrew

email this to someone
Description:

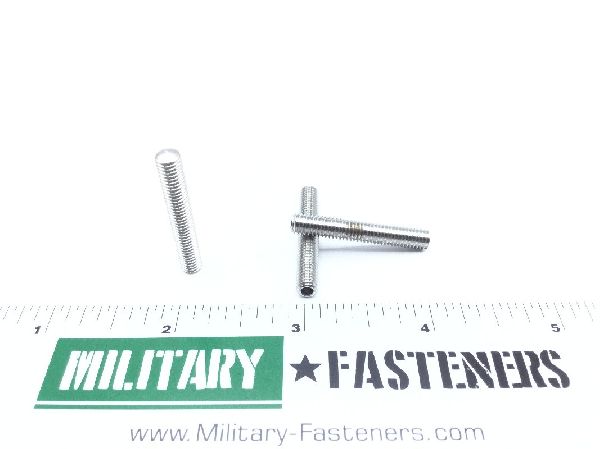

Fastener Length: 1-17/64", Thread: 10-32, Head Width: 3/32", Thread Length: 1-17/64",

* Manufacturer certifications are shipped with your order FREE of charge
AN565FC1032H20
AN565FC1032H20
AN565FC1032H20
AN565FC1032H20
AN565FC1032H20
AN565FC1032H20
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

AN565FC1032H20 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
1.231 inches minimum and 1.269 inches maximum
Fastener Length:
1.231 inches minimum and 1.269 inches maximum
Head Style:
Headless (setscrew)
Point Style:
Oval
Internal Drive Style:
Hexagon
Thread Diameter:
0.190 inches
Width Across Flats:
0.094 inches minimum and 0.095 inches maximum
Thready Qty Per Inch (tpi):
32
Material:
Steel comp 303 overall or steel comp 303se overall
Surface Treatment:
Passivate overall
Surface Treatment Specification:
Qq-p-35 fed spec single treatment response overall
Thread Series Designator:
Unf
Nondefinitive Specification/std Data:
1 type and 3 style
Quick Specs
Thread Size 10
Thread Qty 32
Material Steel
Length 1-17/64

Additional Information

SKU / Model: AN565FC1032H20
NSN: 5305-01-023-2970
FSC: Screws / 5305
Product Series: AN565FC1032H
Pack Weight (Approx.) 0.080 lb
Minimum Qty (MOQ): 10
Schedule B: 7318.15.6080
ECCN: EAR99
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
AN565FC1032H20_Military-Fasteners-com.pdf
