MS51963-210

Military Standard Setscrew

email this to someone

Description:

Fastener Length: 1/8", Thread: 4-40, Head Width: 1/16", Thread Length: 1/8

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 70 ships same day if ordered before 4pm EST

MS51963-210 Price:	buy now $14.21 Each
Quantity: Pre-packaged bag qty: 5 ea
* Sold in increments of 5

Add item to quote

MS51963-210 Datasheet Features and Specification

Thread Class:

Thread Direction:

Right-hand

Thread Length:

0.115 inches minimum and 0.135 inches maximum

Fastener Length:

0.115 inches minimum and 0.135 inches maximum

Head Style:

Headless (setscrew)

Locking Feature:

Patch threads or pellet threads or strip threads

Point Style:

Cup

Internal Drive Style:

Hexagon

Thread Diameter:

0.112 inches

Width Across Flats:

0.050 inches nominal

Thready Qty Per Inch (tpi):

Hardness Rating:

45.0 rockwell c minimum overall and 53.0 rockwell c maximum overall

Material:

Steel overall

Surface Treatment:

Cadmium overall and chromate overall

Surface Treatment Specification:

Qq-p-416 ty2 cl3 fed spec single treatment response overall

Thread Series Designator:

Unc

Nondefinitive Specification/std Data:

1 type and 4 style

Quick Specs

Thread Size	4
Thread Qty	40
Material	Steel
Length	1/8

Additional Information

SKU / Model:	MS51963210
NSN:	5305-01-053-1891
FSC:	Screws / 5305
Product Series:	MS51963
Pack Weight (Approx.)	0.000 lb
Minimum Qty (MOQ):	5
Schedule B:	7318.15.6080
ECCN:	EAR99
National Motor Freight:	093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version MS51963-210_Military-Fasteners-com.pdf

* report an issue on this page

More MS51963 setscrews

MS51963-9

Setscrew

MS51963-84

5305-00-724-5902 Setscrew

MS51963-64

5305-00-723-9386 Setscrew

MS51963-39

Fastener Length: 1/2", Thread: 8-32, Head Width: 5/64", Thread Length: 1/2"

MS51963-35

$2.34 EA, Fastener Length: 1/4in., Thread: 8-32, Head Width: 5/64in., Thread Length: 1/4in.

MS51963-34

5305-00-719-5342 Setscrew

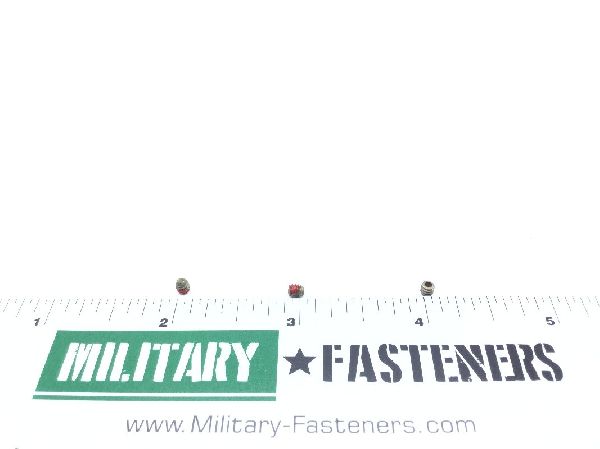

Product Image Gallery
