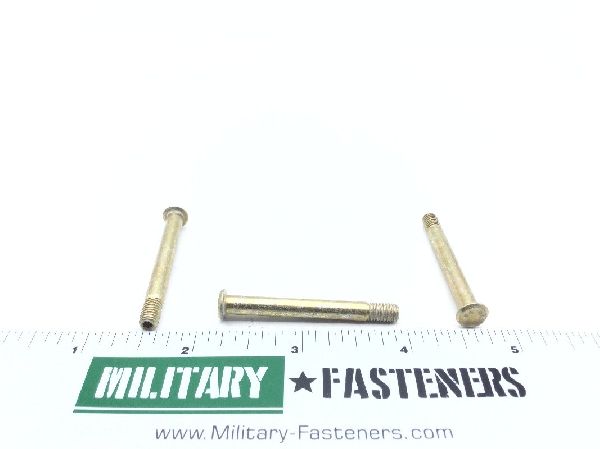

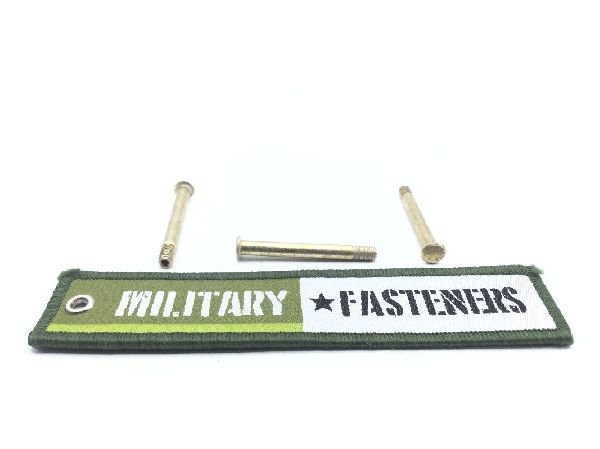

HL18PB6-22

Hi-Lok Rivet Pin

email this to someone
Description:

Diameter: 3/16", Grip Length: 1-3/8", protruding shear head, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL18PB6-22
HL18PB6-22
HL18PB6-22
HL18PB6-22
HL18PB6-22
HL18PB6-22
Add to Cart Up to qty 50 ships same day if ordered before 4pm EST
HL18PB6-22 Price:
buy now
$5.67 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

HL18PB6-22 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
1.690 inches minimum and 1.710 inches maximum
Head Style:
Err-090
Head Height:
0.045 inches minimum and 0.055 inches maximum
Width Between Flats:
0.079 inches minimum and 0.081 inches maximum
Shank Diameter:
0.1885 inches minimum and 0.1895 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.295 inches minimum and 0.315 inches maximum
Lubrication:
Cetyl alcohol
Grip Length:
1.380 inches maximum
Thready Qty Per Inch (tpi):
32
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.190 inches
Shear Strength:
95000 single pounds per square inch
Material:
Steel comp e4340 overall or steel comp 4140 overall or steel comp 8740 overall
Material Specification:
Mil-s-5000 mil spec 1st material response overall or mil-s-5626 mil spec 2nd material response overall or mil-s-6049 mil spec 3rd material response overall
Surface Treatment:
Cadmium overall
Surface Treatment Specification:
Qq-p-416,ty 2,cl 3 fed spec single treatment response overall
Thread Series Designator:
Unjf

Additional Information

SKU / Model: HL18PB622
NSN: 5320-00-369-4032
FSC: Rivets / 5320
Product Series: HL18PB6
Pack Weight (Approx.) 0.075 lb
Minimum Qty (MOQ): 5
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL18PB6-22_Military-Fasteners-com.pdf
