HL21PB6-14

Hi-Lok™ Rivet Pin

email this to someone
Description:

flush ms24694 tension head alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL21PB6-14
HL21PB6-14
HL21PB6-14
HL21PB6-14
HL21PB6-14
HL21PB6-14
Add to Cart Up to qty 340 ships same day if ordered before 4pm EST
HL21PB6-14 Price:
buy now
$12.60 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

HL21PB6-14 Datasheet Features and Specification

Thread Direction:
Right-hand
Thread Class:
3a
Surface Treatment Specification:
Cl 2 federal specification single treatment response type 2 qq-p-416
Shank Style:
Threaded straight pin-rivet
Surface Treatment:
Cadmium
Min. Tensile Strength (psi):
160000 pounds per square inch
Shank Diameter:
Between 0.189 inches and 0.190 inches
Material Specification:
Mil-s-5000 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-5626 military specification 3rd material response or mil-s-6049 military specification 4th material response
Material:
Steel
Head Style:
Flush countersunk
Head Major Diameter:
Between 0.377 inches and 0.381 inches
Grip Length:
0.875 inches
Fastener Length:
Between 1.190 inches and 1.210 inches
Countersink Angle:
100.0 degrees
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Thread Size:
0.190 inches
Width Between Flats:
Between 0.079 inches and 0.081 inches
Quick Specs
Thread Series UNJF
Thread Class 3A
Material Steel

Additional Information

SKU / Model: HL21PB614
NSN: 5320-01-036-6807
FSC: Rivets / 5320
Product Series: HL21PB6
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 5
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL21PB6-14_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL21PB6 pin-rivets

HL21PB6-9

flush ms24694 tension head, alloy steel cadmium plated

HL21PB6-8

Flush ms24694 tension head alloy steel cadmium plated, 5320-00-757-5507

HL21PB6-7

Flush ms24694 tension head alloy steel cadmium plated

HL21PB6-6

$2.34 Each, flush tension head alloy steel cadmium plated

HL21PB6-5

$2.10 Each, flush ms24694 tension head alloy steel cadmium plated

HL21PB6-4

Flush tension head alloy steel cadmium plated Diameter: 3/16", Grip Length: 1/4, 5320-00-757-5503

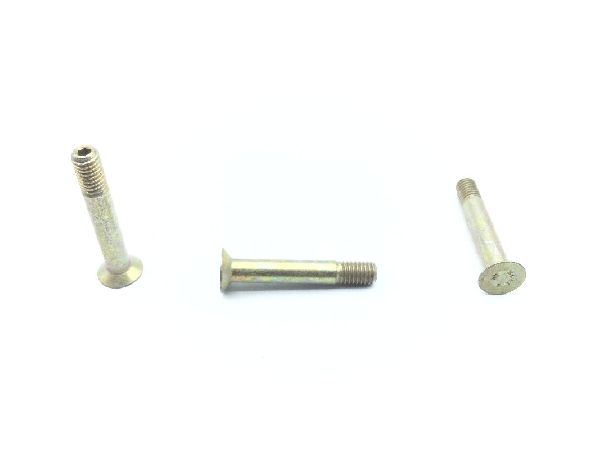

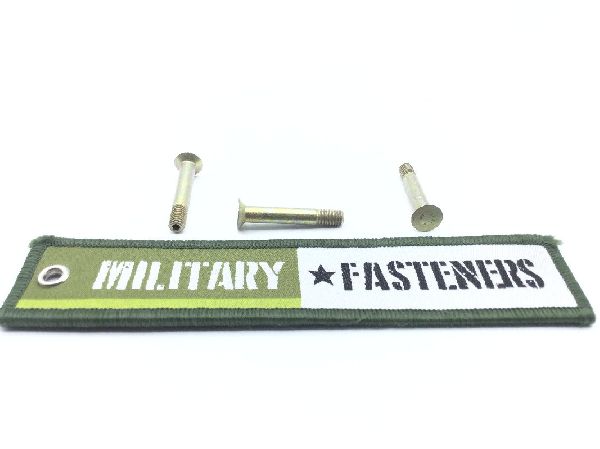

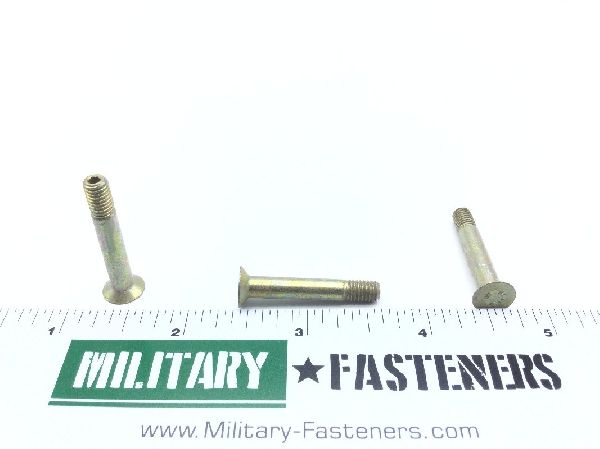

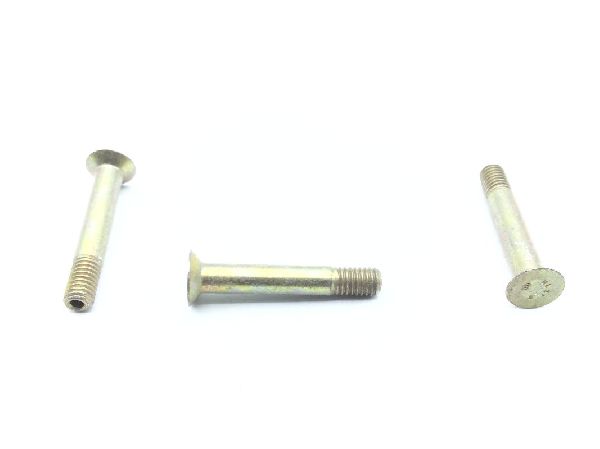

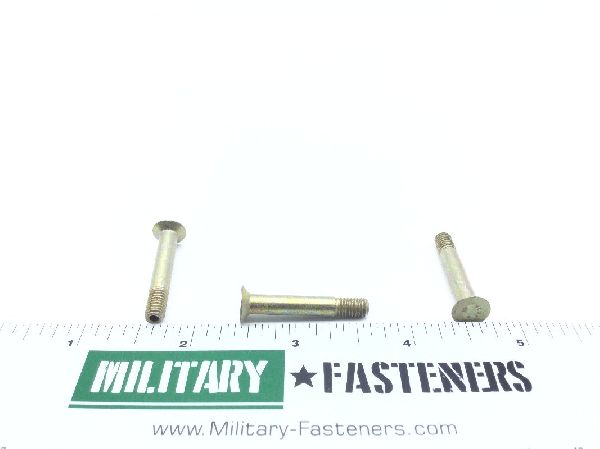

Product Image Gallery
