HL63PB6-2

Hi-Lok Rivet Pin

email this to someone
Description:

flush shear head, oversized for hl19, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL63PB6-2
HL63PB6-2
HL63PB6-2
HL63PB6-2
HL63PB6-2
HL63PB6-2
Add to Cart Up to qty 200 ships same day if ordered before 4pm EST
HL63PB6-2 Price:
buy now
$4.02 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL63PB6-2 Datasheet Features and Specification

Surface Treatment Specification:
Cl 2 federal specification single treatment response type 2 qq-p-416
Surface Treatment:
Cadmium and chromate
Shear Strength:
95000 single pounds per square inch
Shank Style:
Threaded straight pin-rivet
Min. Tensile Strength (psi):
160000 pounds per square inch
Shank Diameter:
Between 0.2016 inches and 0.2026 inches
Material Specification:
Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Material:
Steel comp e4340 or steel comp 4140 or steel comp 8740
Head Style:
Flush countersunk
Lubrication:
Hi-shear corp specification 305 cetyl alcohol
Head Major Diameter:
0.3016 inches
Grip Length:
0.125 inches
Fastener Length:
Between 0.440 inches and 0.460 inches
Countersink Angle:
100.0 degrees
Thread Class:
3a
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
32
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Thread Size:
0.190 inches
Width Between Flats:
Between 0.0791 inches and 0.0806 inches
Quick Specs
Thread Qty 32
Thread Series UNJF
Thread Class 3A
Material Steel

Additional Information

SKU / Model: HL63PB62
NSN: 5320-01-340-7480
FSC: Rivets / 5320
Product Series: HL63PB6
Pack Weight (Approx.) 0.039 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 096320, Rivets I / S Nickel Plated Buffed
Download PDF Version
HL63PB6-2_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL63PB6 pin-rivets

HL63PB6-9

100°, flush shear head - oversized for hl19 - alloy steel cadmium plated

HL63PB6-8

$2.64 Ea, flush shear head, oversized for hl19, alloy steel, cadmium plated

HL63PB6-7

100°, flush shear head - oversized for hl19 - alloy steel cadmium plated

HL63PB6-6

Flush shear head oversized for hl19 alloy steel cadmium plated

HL63PB6-5

flush shear head oversized for hl19 alloy steel cadmium plated

HL63PB6-4

Flush shear head oversized for hl19 alloy steel cadmium plated, 5320-00-968-9189

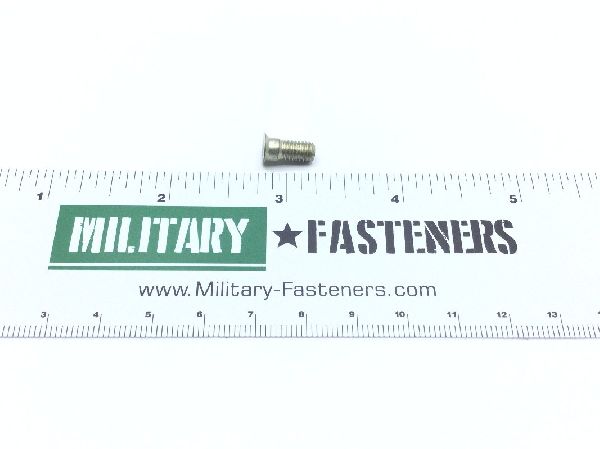

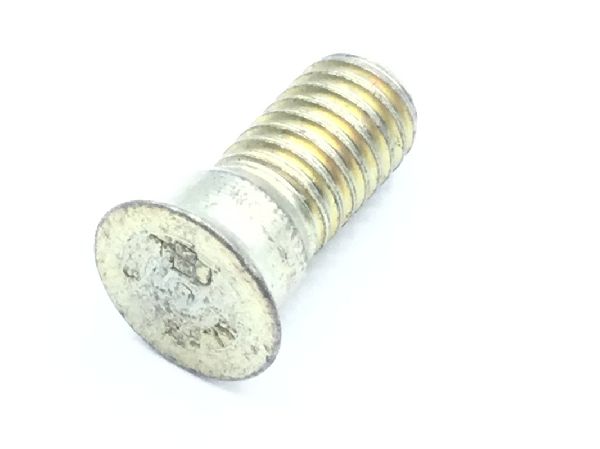

Product Image Gallery
