HL20PB10-16

Hi-Lok Rivet Pin

email this to someone
Description:

Pin-Rivet part number HL20PB10-16

* Manufacturer certifications are shipped with your order FREE of charge
HL20PB10-16
HL20PB10-16
HL20PB10-16
HL20PB10-16
HL20PB10-16
HL20PB10-16
Add to Cart Up to qty 80 ships same day if ordered before 4pm EST
HL20PB10-16 Price:
buy now
$11.78 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

HL20PB10-16 Datasheet Features and Specification

Grip Length:
Between 0.995 inches and 1.005 inches
Fastener Length:
Between 1.490 inches and 1.510 inches
Head Height:
Between 0.098 inches and 0.112 inches
Head Major Diameter:
Between 0.472 inches and 0.502 inches
Head Style:
Straight pan
Lubrication:
Cetyl alcohol
Material:
Steel comp
Material Specification:
Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi):
160000 pounds per square inch
Thread Size:
0.312 inches
Shank Diameter:
Between 0.3110 inches and 0.3120 inches
Shank Style:
Threaded
Surface Treatment:
Cadmium and chromate
Surface Treatment Specification:
Class 2 federal specification single treatment response type 2 qq-p-416
Thread Class:
3a
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
24
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Width Between Flats:
Between 0.1270 inches and 0.1295 inches

Additional Information

Alternate Part Numbers

  • HL20PB-10-16
SKU / Model: HL20PB1016
NSN: 5320-01-124-6660
FSC: Rivets / 5320
Product Series: HL20PB10
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 5
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL20PB10-16_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL20PB10 pin-rivets

HL20PB10-9

HL20PB10-9 Pin-Rivet, 5320-00-413-0179

HL20PB10-8

Protruding tension head alloy steel cadmium plated

HL20PB10-7

5320-00-103-0724 Pin-rivet

HL20PB10-6

Protruding tension head alloy steel cadmium plated diameter 5/16 hi-lok pin

HL20PB10-5

$20.34 Each, Protruding tension head alloy steel cadmium plated

HL20PB10-4

5320-00-869-4297 Pin-Rivet

Product Image Gallery

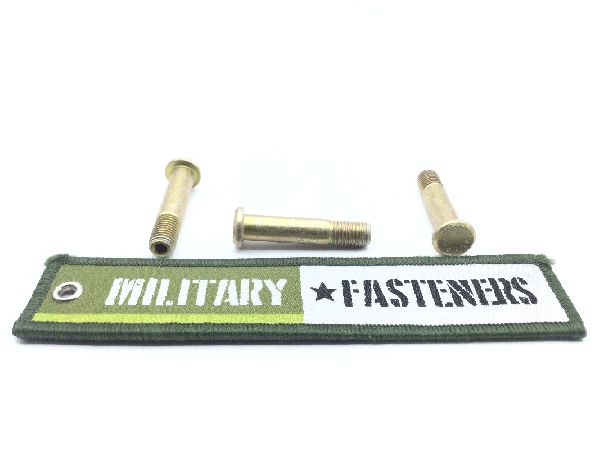

Product code HL20PB10-16
