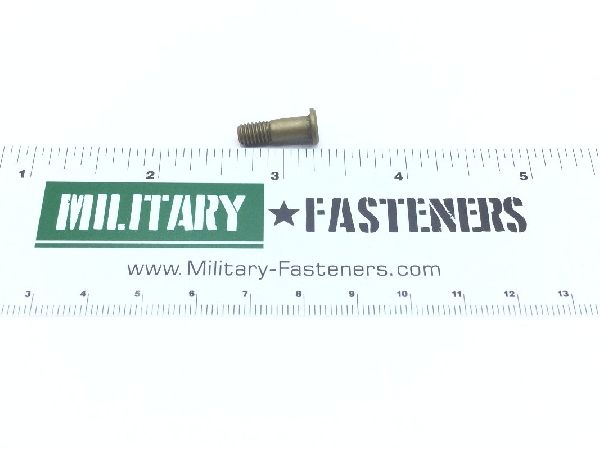

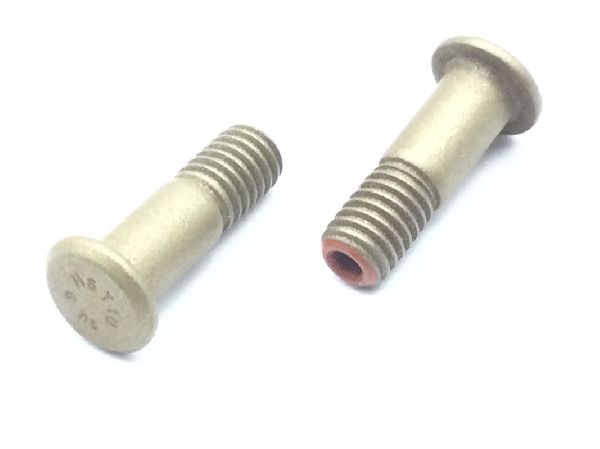

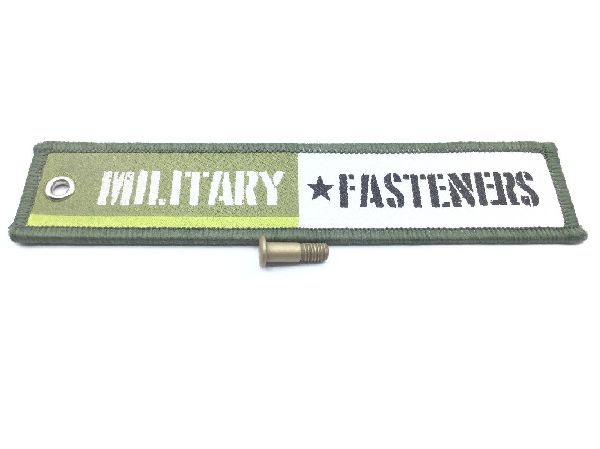

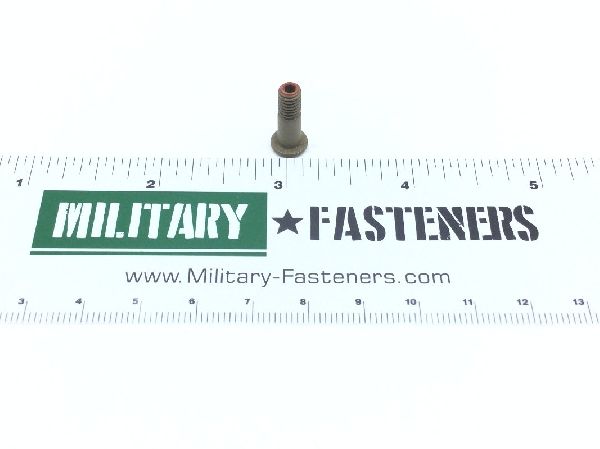

HST10AG6-5

Hi-Tigue Rivet Pin

email this to someone
Description:

Diameter: 3/16", Grip Length: 5/16", thread: 10-32, protruding shear head, titanium, aluminum coating

* Manufacturer certifications are shipped with your order FREE of charge
HST10AG6-5
HST10AG6-5
HST10AG6-5
HST10AG6-5
HST10AG6-5
HST10AG6-5
Add to Cart Up to qty 390 ships same day if ordered before 4pm EST
HST10AG6-5 Price:
buy now
$3.89 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HST10AG6-5 Datasheet Features and Specification

Width Between Flats:
Between 0.0791 inches and 0.0806 inches
Thread Size:
0.190 inches
Thread:
10-32
Thread Class:
3a
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
32
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Surface Treatment:
Aluminum
Special Features:

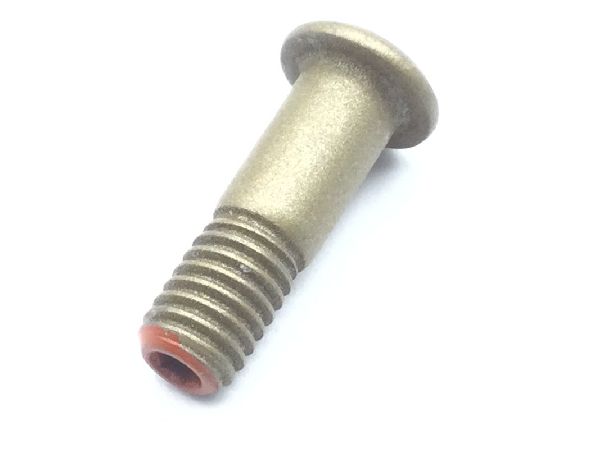

Color code orange on thread end
Shear Strength:
95000 single pounds per square inch
Shank Style:
Threaded straight
Shank Diameter:
Between 0.1885 inches and 0.1895 inches
Material Specification:
Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Material:
Titanium alloy
Lubrication:
305 cetyl alcohol
Head Major Diameter:
Between 0.295 inches and 0.315 inches
Head Height:
Between 0.045 inches and 0.055 inches
Fastener Length:
Between 0.592 inches and 0.612 inches
Grip Length:
Between 0.307 inches and 0.317 inches
Quick Specs
Thread Qty 32
Thread Series UNJF
Thread Class 3A
Material Titanium

Additional Information

SKU / Model: HST10AG65
NSN: 5320-01-338-4247
FSC: Rivets / 5320
Product Series: HST10AG6
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 10
Schedule B: 8108.90.8000
ECCN: EAR99
National Motor Freight: 096320, Rivets I / S Nickel Plated Buffed
Download PDF Version
HST10AG6-5_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!
