AN565F428H24

Aeronautical Standard Setscrew

email this to someone
Description:

Fastener Length: 1-1/2", Thread: 1/4-28, Head Width: 1/8", Thread Length: 1-1/2

* Manufacturer certifications are shipped with your order FREE of charge
AN565F428H24
AN565F428H24
AN565F428H24
AN565F428H24
AN565F428H24
AN565F428H24
Add to Cart Up to qty 110 ships same day if ordered before 4pm EST
AN565F428H24 Price:
buy now
$4.29 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

AN565F428H24 Datasheet Features and Specification

Fastener Length:
1.500 inches
Hardness Rating:
45.0 rockwell c and 53.0 rockwell c
Head Style:
Headless (setscrew)
Internal Drive Style:
Hexagon
Material:
Steel comp 4037 or steel comp 4137 or steel comp 4140 or steel comp 8630 or steel comp 8740
Material Specification:
66 federal standard all material responses
Thread Diameter:
0.250 inches
Point Style:
Oval
Surface Treatment:
Cadmium and chromate
Surface Treatment Specification:
Class 3 federal specification single treatment response type 2 qq-p-416
Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
1.500 inches
Thread Qty Per Inch (tpi):
28
Thread Series Designator:
Unf (fine thread)
Width Across Flats:
Between 0.125 inches and 0.127 inches
Quick Specs
Thread Size 1/4
Thread Qty 28
Thread Series UNF
Thread Class 3A
Drive Style Hexagon
Material Steel
Length 1-1/2

Additional Information

SKU / Model: AN565F428H24
NSN: 5305-00-063-5043
FSC: Screws / 5305
Product Series: AN565F428H
Pack Weight (Approx.) 0.164 lb
Minimum Qty (MOQ): 10
Schedule B: 7318.15.6080
ECCN: EAR99
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
AN565F428H24_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More AN565F428H setscrews

AN565F428H9

Fastener Length: 9/16", Thread: 1/4-28, Head Width: 1/8", Thread Length: 9/16"

AN565F428H20

Fastener Length: 1-17/64", Thread: 1/4-28, Head Width: 1/8", Thread Length: 1-17/64"

AN565F428H16

Fastener Length: 1-", Thread: 1/4-28, Head Width: 1/8", Thread Length: 1-"

AN565F428H14

$1.68 EA, Fastener Length: 7/8in., Thread: 1/4-28, Head Width: 1/8in., Thread Length: 7/8in.

Product Image Gallery

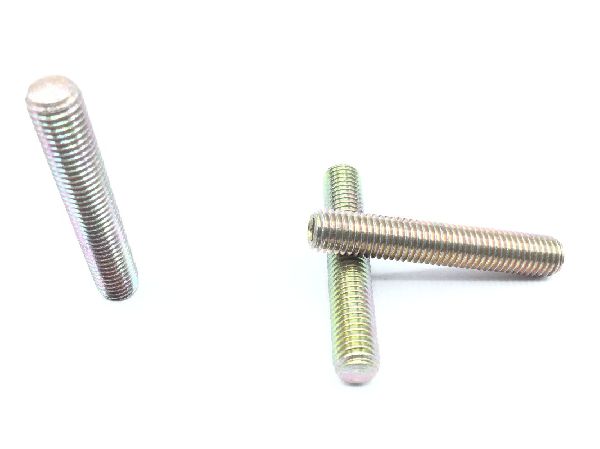

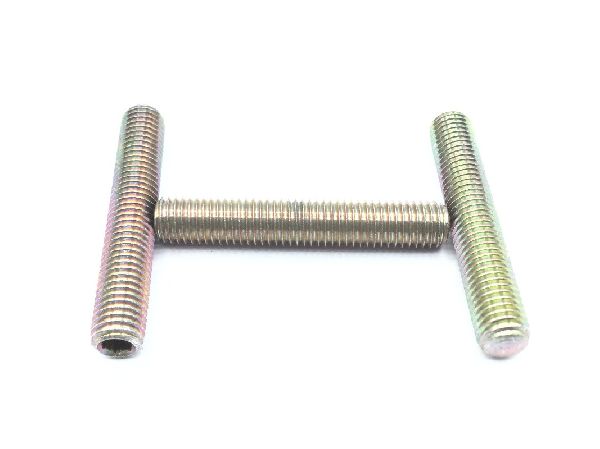

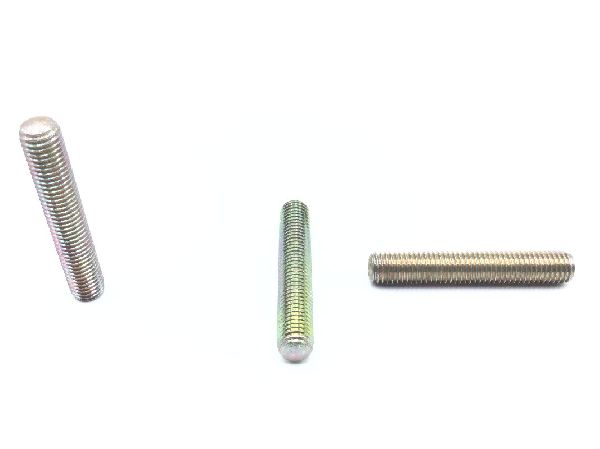

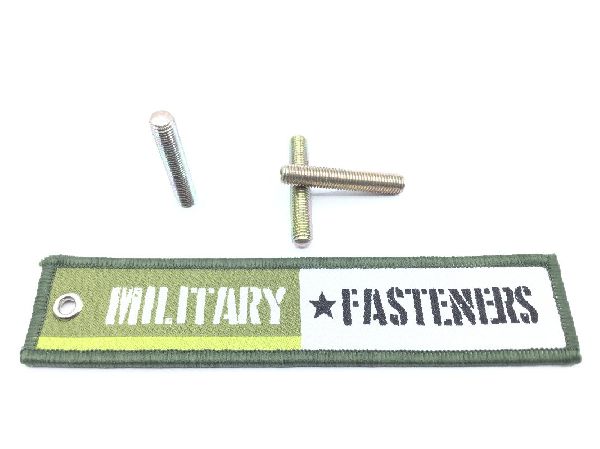

Product code AN565F428H24
