MS51964-122

Military Standard Setscrew

email this to someone

Description:

Fastener Length: 1/4", Thread: 10-32, Head Width: 3/32", Thread Length: 1/4",

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 80 ships same day if ordered before 4pm EST

MS51964-122 Price:	buy now $4.16 Each
Quantity: Pre-packaged bag qty: 10 ea
* Sold in increments of 10

Add item to quote

MS51964-122 Datasheet Features and Specification

Fastener Length:

Between 0.240 inches and 0.260 inches

Hardness Rating:

45.0 rockwell c and 53.0 rockwell c

Head Style:

Headless (setscrew)

Internal Drive Style:

Hexagon

Locking Feature:

Patch threads or pellet threads or strip threads

Material:

Steel

Thread Diameter:

0.190 inches

Nondefinitive Specification/std Data:

1 type and 4 style

Point Style:

Cup

Surface Treatment:

Cadmium and chromate

Surface Treatment Specification:

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class:

Thread Direction:

Right-hand

Thread Length:

Between 0.240 inches and 0.260 inches

Thread Qty Per Inch (tpi):

Thread Series Designator:

Unf (fine thread)

Width Across Flats:

0.094 inches

Quick Specs

Thread Size	10
Thread Qty	32
Thread Series	UNF
Thread Class	3A
Drive Style	Hexagon
Material	Steel
Length	1/4

Additional Information

SKU / Model:	MS51964122
NSN:	5305-01-141-4089
FSC:	Screws / 5305
Product Series:	MS51964
Pack Weight (Approx.)	0.018 lb
Minimum Qty (MOQ):	10
ECCN:	EAR99
National Motor Freight:	093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version MS51964-122_Military-Fasteners-com.pdf

* report an issue on this page

More MS51964 setscrews

MS51964-49

$4.32 EA, Fastener Length: 1/4in., Thread: 10-32, Head Width: 3/32in., Thread Length: 1/4in.

MS51964-48

$1.86 EA, Fastener Length: 3/16in., Thread: 10-32, Head Width: 3/32in., Thread Length: 3/16in.

MS51964-129

Fastener Length: 47/64", Thread: 10-32, Head Width: 3/32", Thread Length: 47/64"

MS51964-123

$14.40 EA, MS51964-123

MS51964-121

$9.00 Ea

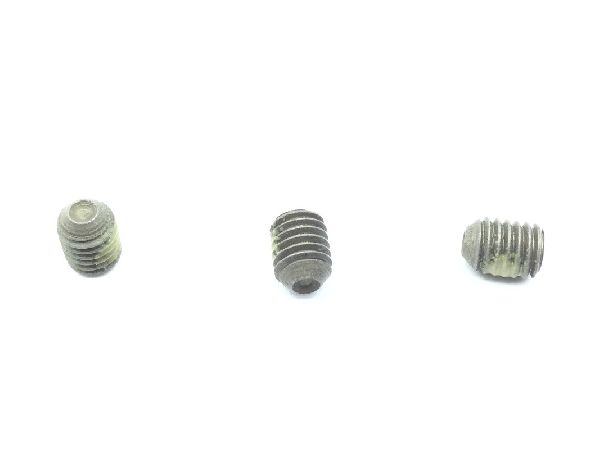

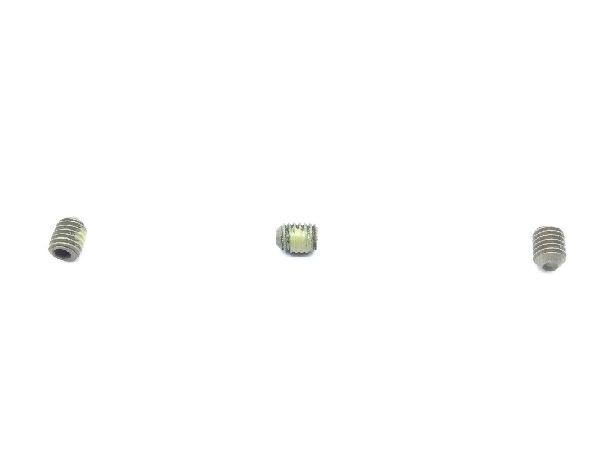

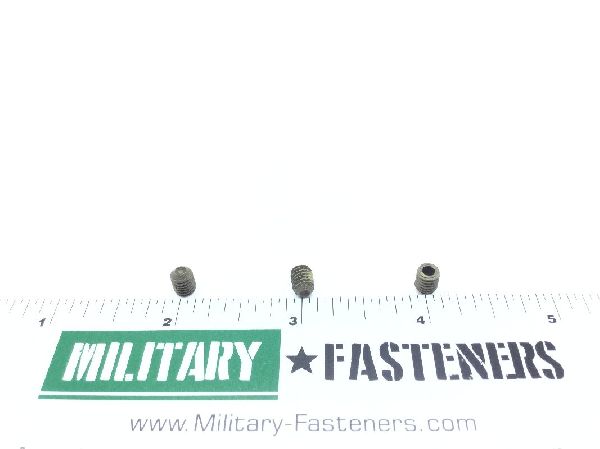

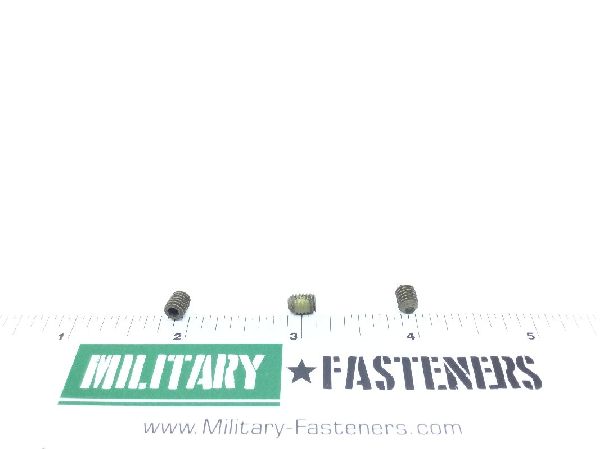

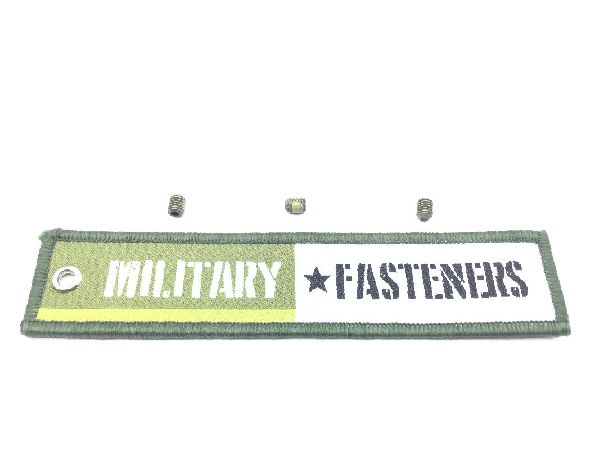

Product Image Gallery
